Alpha Series AC Servo Amplifier Descriptions Page 465

Descriptions

Page of 699

/ 699

B–65162E/03

11. OPTION RELATED TO SPINDLE

445

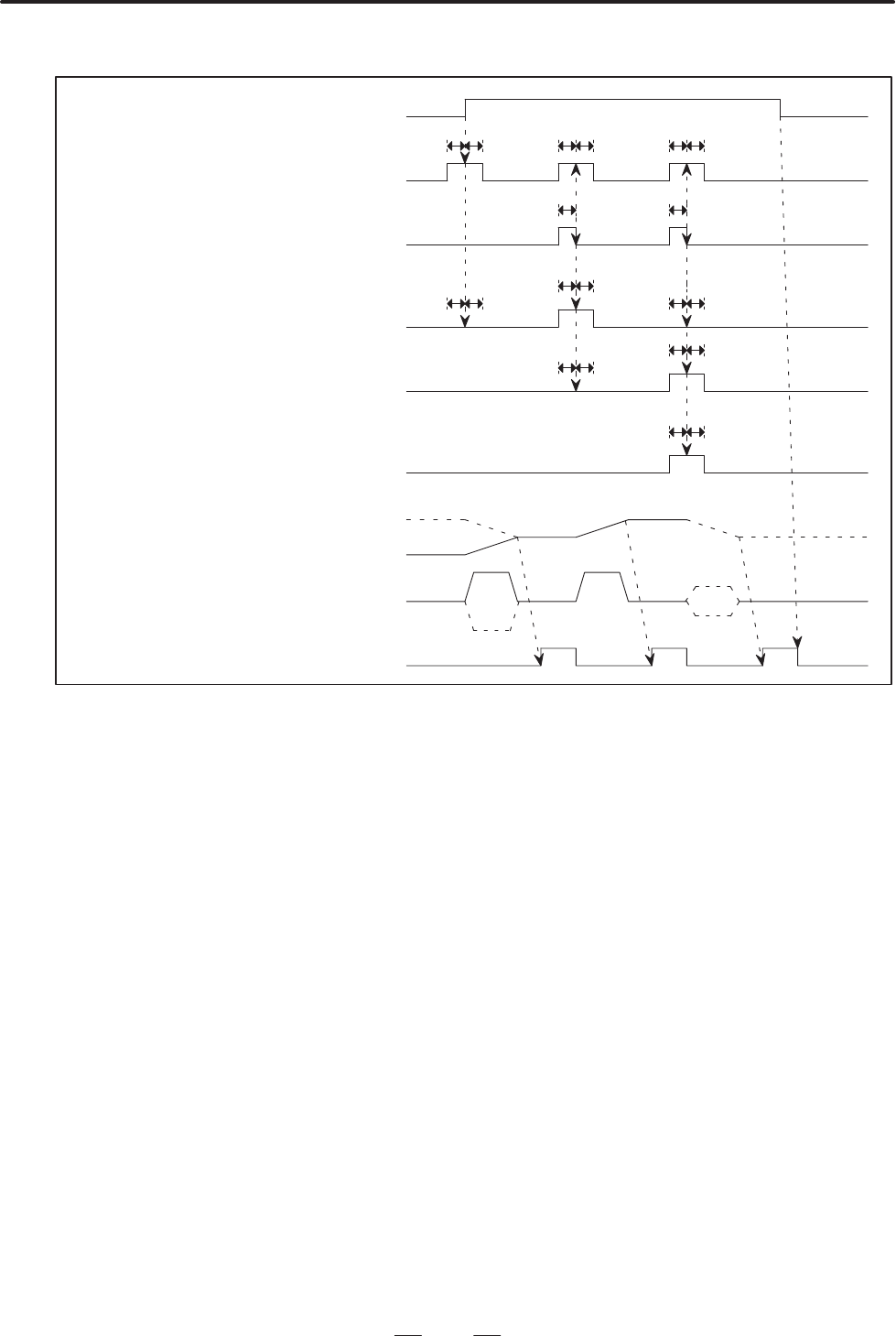

(2) When Spindle Orientation and Incremental Motion are both Executed

t t

ORCMA

(Spindle orientation command)

SHA00 to SHA11 (Command for specifying

the stop position in spindle orientation)

INDXA

(Command for changing the stop position

in spindle orientation)

INCMDA

(Command for selecting stop position data

or incremental command data)

ROTAA

(Command for specifying the direction of

rotation when changing the stop position)

NRROA

(Command for taking a shorter route when

changing the stop position)

Spindle position

Motor speed

ORARA

(Orientation completion signal)

t t t t





CCW



 t

t t



 Stopping the spindle in place using the usual orientation command

Z In the first orientation after the power is turned on, the spindle

rotates at the orientation speed. After a one rotation signal is

detected, the spindle stops in place. In the second and

subsequent orientations, the spindle stops in place within

rotation

Z The parameter specifying the direction of rotation (Series 16:

PRM4003, bits 2 and 3) applies to the spindle motor.

Z If the rising edge of ORCMA is detected when INCMDA is set

to 0, the data of SHA00 to SHA11 is read as stop position data.

The spindle stops after shifting by the distance obtained by the

following expression: [Value of SHA00 to SHA11] +

[Parameter of shift distance of the stop position in orientation

(Series 16: PRM4077)]

 Stopping the spindle in place by an incremental command

Z For incremental motion, see item ” Incremental action” above.

Z When the command multiplication parameter (Series 16:

PRM4328) is set to 4096, the spindle rotation can be controlled.

 Stopping the spindle in place by setting the stop position externally

Z If the falling edge of INDXA is detected when ORCMA is set

to 1 and INCMDA is set to 0, the data of SHA00 to SHA11 is

read as stop position command data. The spindle rotates and

stops at the specified position.
