10. INTERFACE SIGNALS

B–65162E/03

406

D During spindle position control (such as spindle orientation control),

the spindle may be clamped when a brake is applied. If the spindle is

clamped with a small displacement remaining, an excessive current

may flow through the motor in order to eliminate the displacement by

performing speed integral control. In this case, this signal can be used

to nullify speed integral control so as to prevent an excessive current

from flowing through the motor.

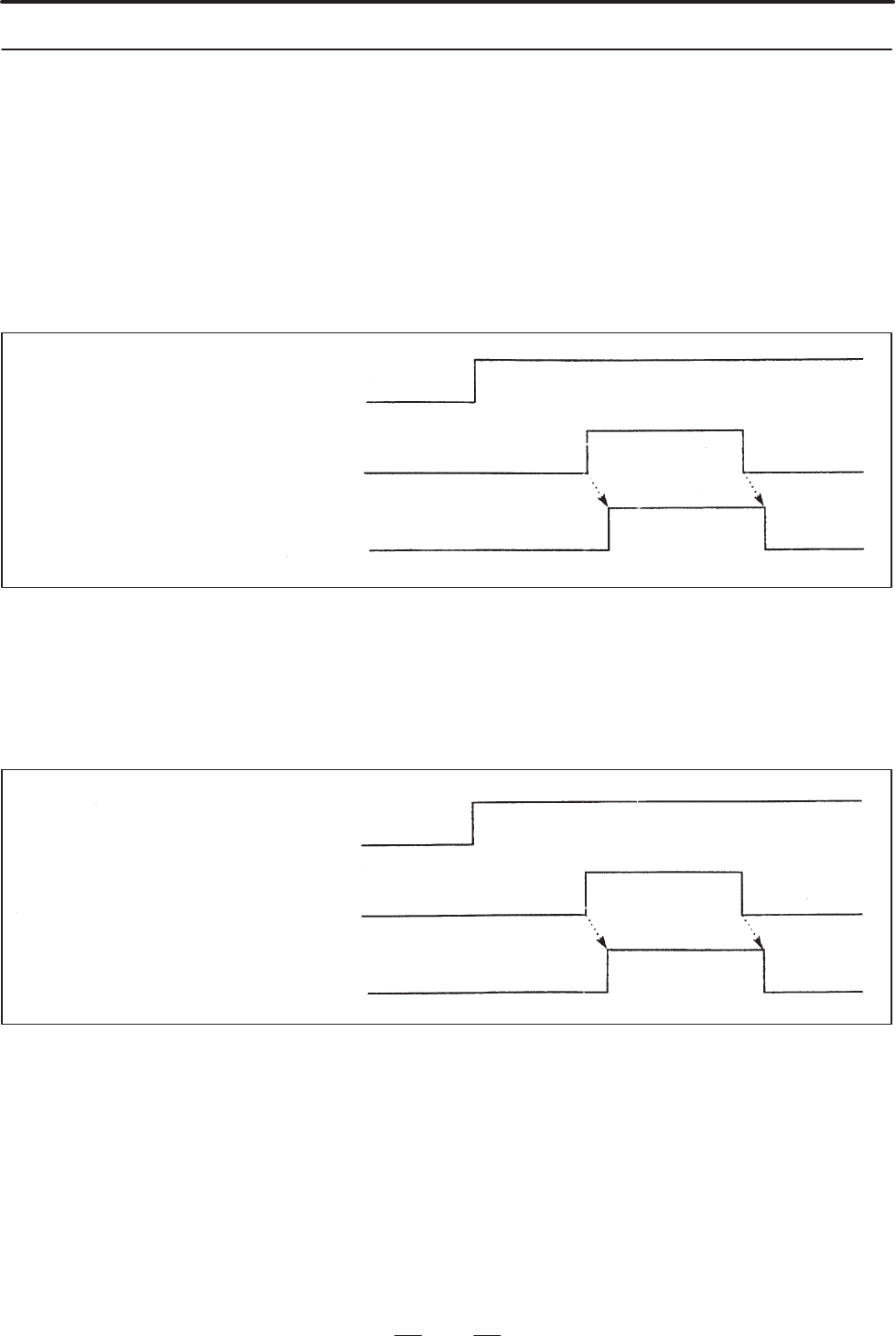

Spindle position control

Spindle clamped

Speed integral control signal INTGA

D If a very small synchronization error occurs between two spindles

when they are used to hold a workpiece in spindle synchronization, an

excessive current may flow through the motor in order to eliminate the

error by performing speed integral control. In this case, this signal can

be used to nullify speed integral control so as to prevent an excessive

current from flowing through the motor.

Spindle synchronization

Workpiece held

by two spindles

Workpiece held by two spindles (chucks closed)

Chucks closed

Speed integral control signal

10.4.14

Speed Integral Control

Signal (INTGA)
