Alpha Series AC Servo Amplifier Descriptions Page 323

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

303

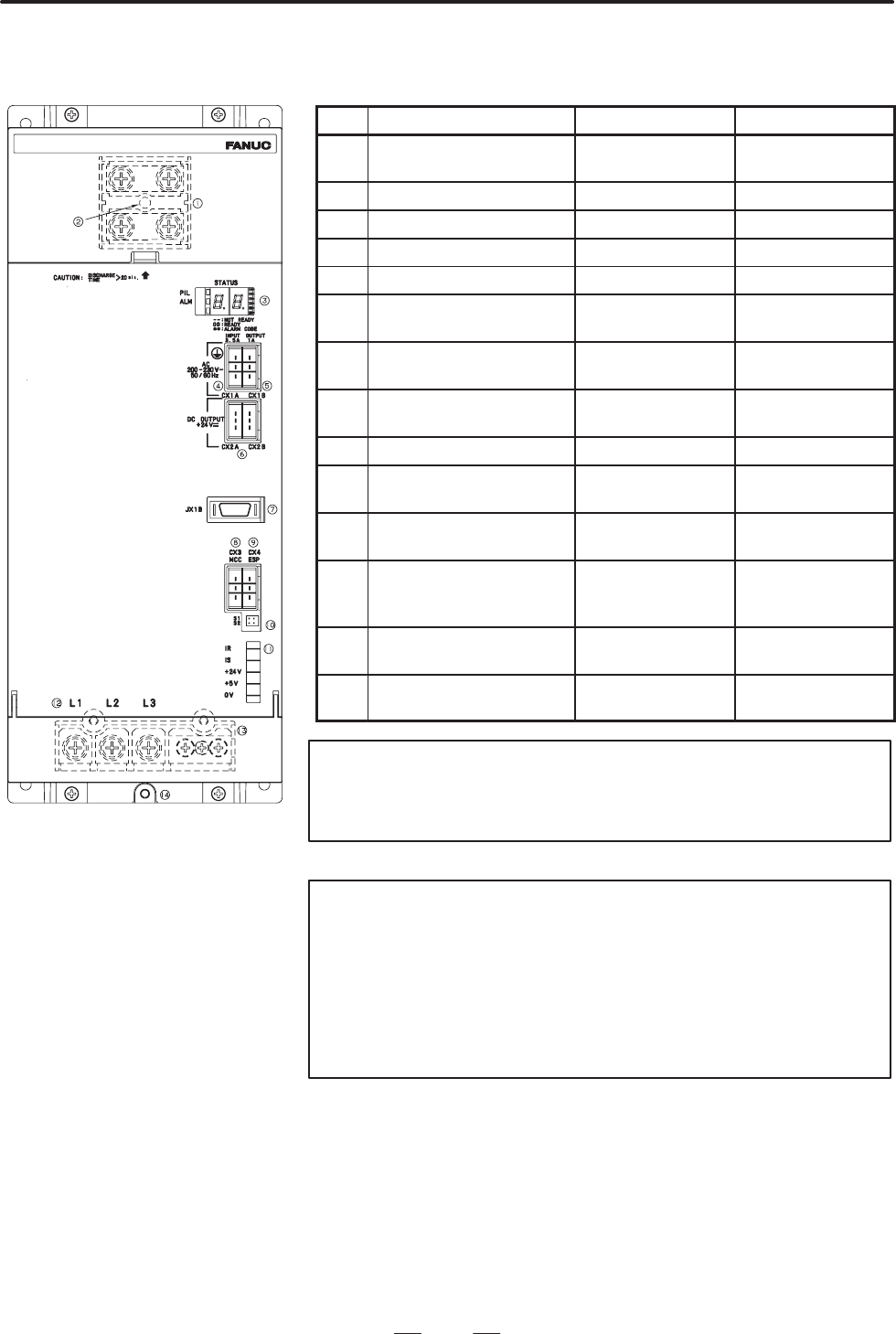

Table.9.3.1 (b) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 DC link charge LED (Warning)

3 Status LED STATUS

4 200VAC input connector CX1A

5 200VAC output connector CX1B

6 24VDC output connector CX2A/CX2B Both connectors

have same function.

7 Output connector for inter-

face between modules

JX1B

8 Connector for main power

MCC control signal

CX3

9 Connector for ESP signal CX4

10 Regeneration phase

switch

S1/S2 Factory–set to S1

11 Check pin See (Note) for

details

12 Terminal names for termi-

nal block for motor power

line

13 Terminal block for motor

power line

TB2 Display the terminal

block TB2

14 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

NOTE

Detailed functions of check pin

IR : Waveform of R–phase input current

IS : Waveform of S–phase input current

+24V : +24V power supply

+5V : +5V power supply

0V : 0V

(b) PSM–15, PSM–26, PSM–30,

PSM–37, PSM–18HV, PSM–30HV,

PSM–45HV
