B–65162E/03

5. INSTALLATION

121

For detailed notes on the safety circuits, refer to the following document:

A–71429–S13J : Safety Circuit Requirements and Configuration

Examples

To obtain this document, contact your local FANUC office.

Some amplifier models are certified as conforming to standards, with the

load reduction factors shown below being set.

If such an amplifier is used with a load factor exceeded, the allowable

temperature range of a component may be exceeded, which may cause an

overheat alarm or a decrease in the component life. Therefore, use the

amplifier within the decrease characteristic.

(1) Power supply module time rating decrease with temperature

See Fig. 5.4.6 (a).

(2) Servo amplifier module time rating decrease with temperature

See Fig. 5.4.6 (b).

(3) Spindle amplifier module time rating decrease with temperature

See Fig. 5.4.6 (c).

Ambient temperature (_C)

Allowable t ime for

cont inuous output (m inutes)

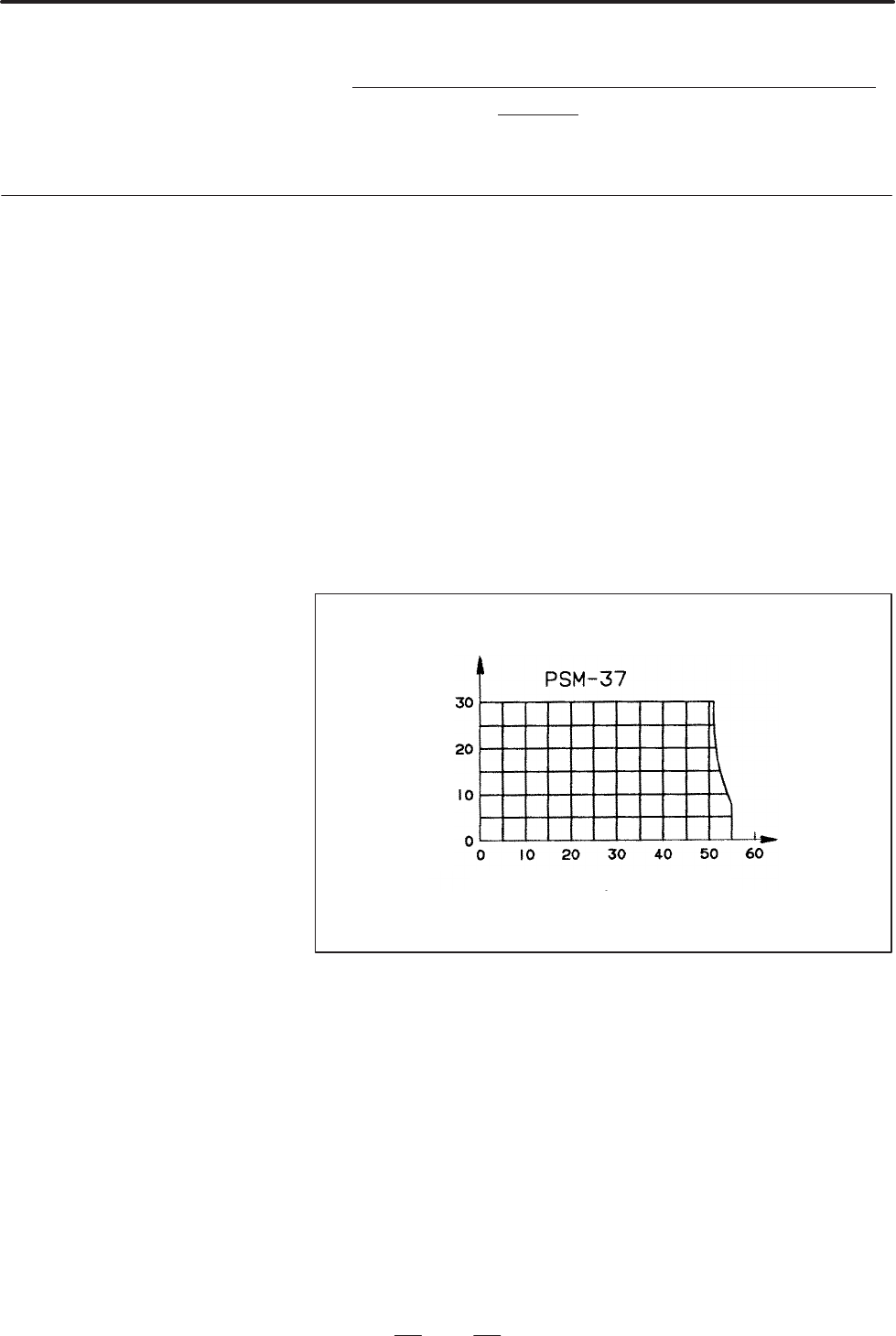

Fig.5.4.6 (a) Decreasing Curve of Power Supply Module Time

Rating Dependent on Temperature

5.4.6

Decrease in Load

Factor for Given

Ambient Temperature
