Alpha Series AC Servo Amplifier Descriptions Page 55

Descriptions

Page of 699

/ 699

B–65162E/03

2. CONFIGURATION AND ORDERING INFORMATION

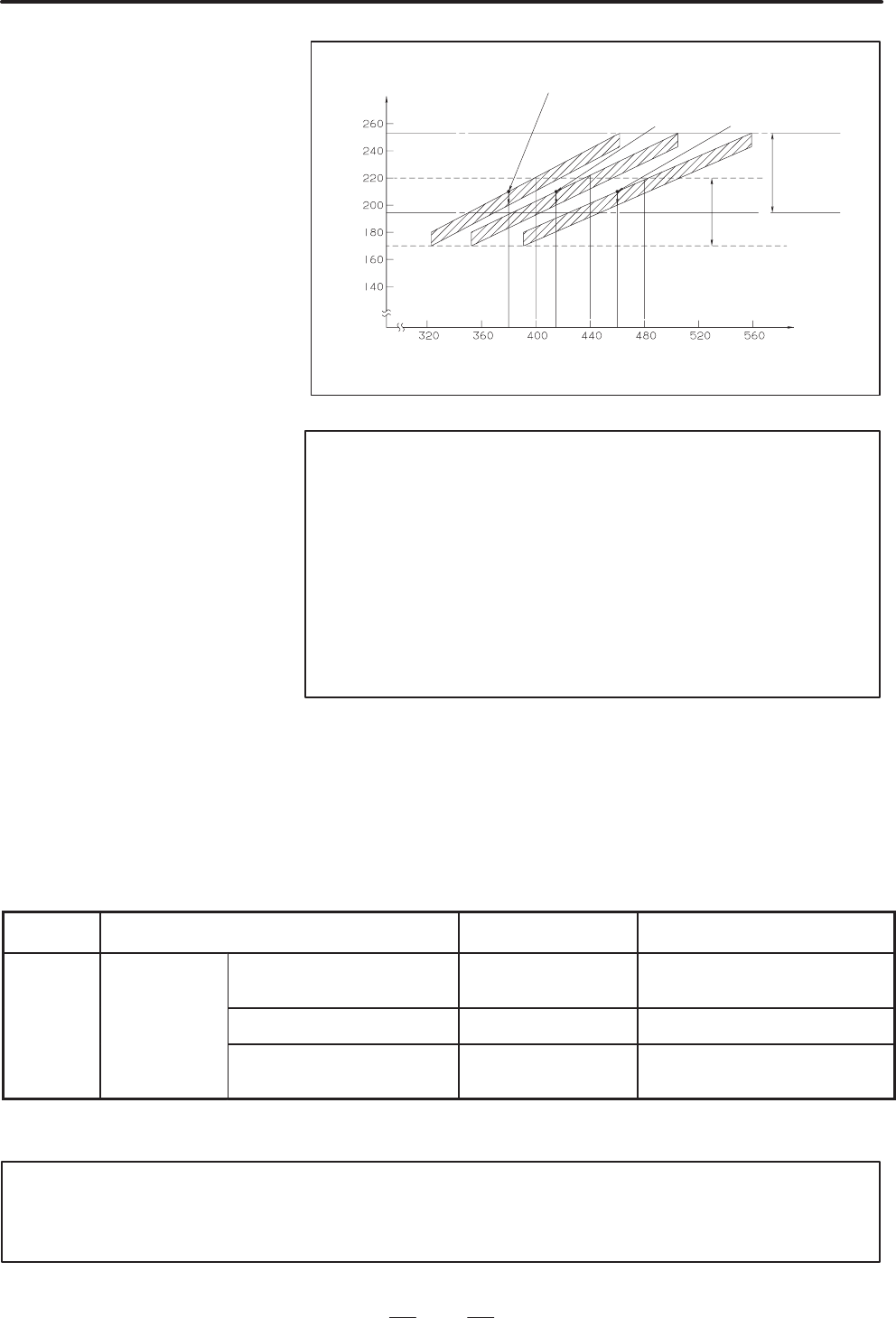

Voltage regulation (approximately 10V) when the

load varies (0% to 100%) with the 380–VAC tap set

With the 415–VAC

tap set

AC input voltage (V)

230VAC

+10%

–15%

200VAC

+10%

–15%

380VAC

400VAC

415VAC

440VAC

480VAC

460VAC

Secondary output voltage (V)

With the 460–VAC

tap set

NOTE

1 When installing a transformer in a cabinet, be careful to

ensure that the transformer does not thermally affect other

equipment. For example, separate the transformer from the

other equipment.

2 When installing a transformer outside the cabinet, make

sure that the transformer is not directly exposed to cutting

chips or coolant.

3 If there is a possibility of the transformer falling, secure the

transformer with bolts or similar.

(7) Fan adaptor

When the following modules are used, forced air cooling is required:

PSM–11, SPM–11, SPM–11HV, SVM1–130(*), SPMC–11, PSM–45, SPM–45, PSM–75HV, SPM–75HV

For the cooling conditions, see Chapter 7.

The use of a fan adaptor allows the desired cooling performance to be obtained. When the fan adaptor is

installed, the panel cut–out must be partially modified. For those modifications, see Section 8.2.

Category Name Ordering number Remarks

For PSM–11 or SPM–11 or

SPM–11HV

A06B–6078–K001

Optional Fan adaptor

For SVM1–130 or SPMC–11 A06B–6078–K002

PSM–45, SPM–45,

PSM–75HV, SPM–75HV

A06B–6078–K003 (Note)

For the dimensions of fan adaptors, see Section 8.1.6.

NOTE

SVM1–130 requires forced air cooling only when it is being used to drive the α22/3000,

α30/3000, α40/2000 (with a fan), αL25/3000, αL50/2000, or αM40/3000.
