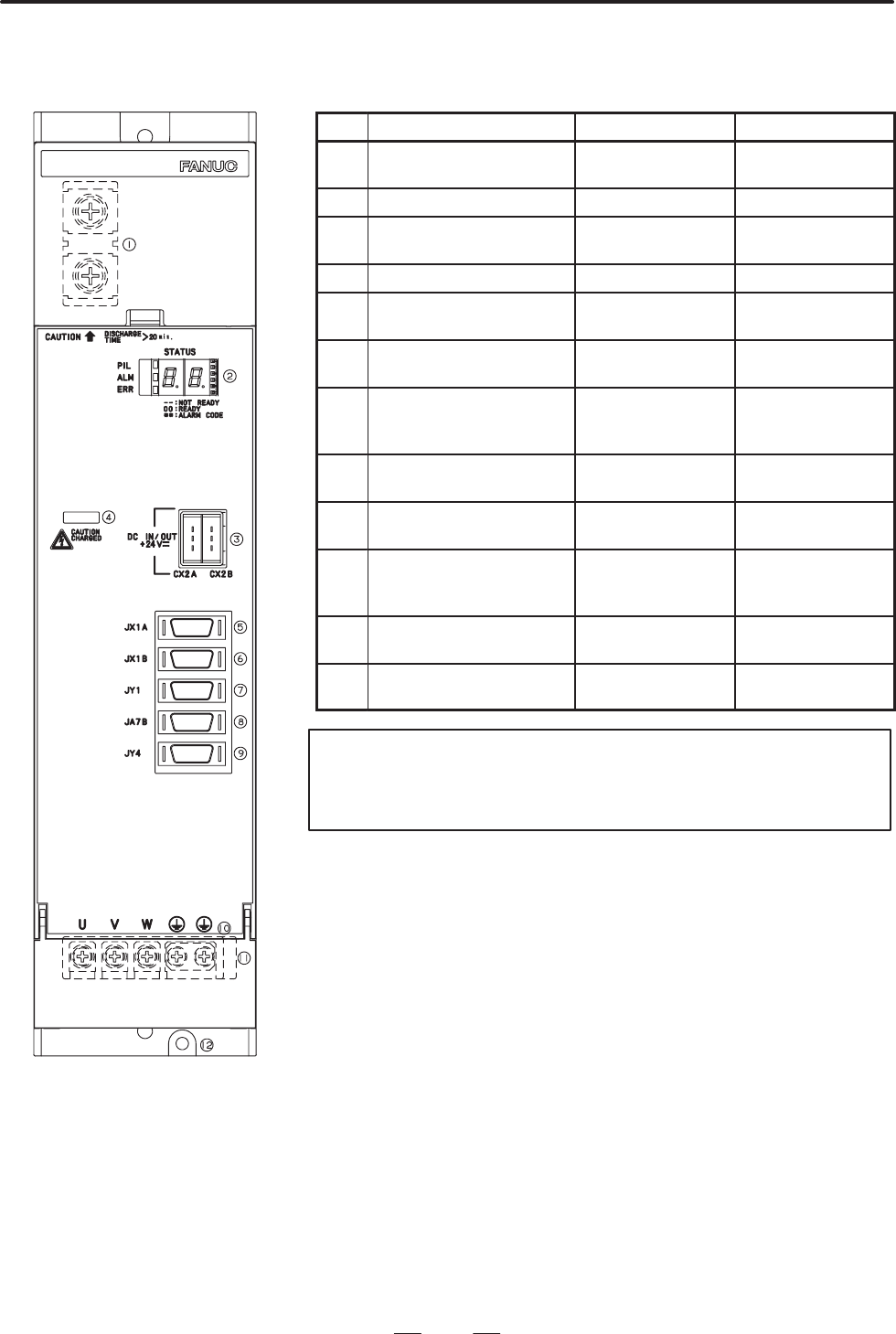

Table.9.3.3 (h) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Status LED STATUS

3 24VDC I/O connector CX2A/CX2B Both connectors

have same function

4 DC link charge LED (Warning)

5 Output connector for inter-

face between modules

JX1A

6 Input connector for inter-

face between modules

JX1B

7 Frequency meter analog

override connector for mo-

tor thermostat connection

JY1

8 Input connector for electric

serial interface

JA7B

9 Connector for position cod-

JY4

10 Terminal names for termi-

nal block for motor power

line

11 Terminal block for motor

power line

Display the terminal

block TB2

12 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(h) SPMC–5.5, 11
