Alpha Series AC Servo Amplifier Descriptions Page 391

Descriptions

Page of 699

/ 699

B–65162E/03

10. INTERFACE SIGNALS

371

”1” SSTA

ATC

(Tool replacement)

Speed zero

signal

SFR / SRV

(Normal/reverse rotation command)

Command

Spindle

amplifier

signal

Machine

Motor rota-

tion speed

(Stop)

Stopper

(Storage)

Rotates slowly in torque

restriction state

Speed detection

signal

Speed command at orientation

Torque limiting command TLMLA, TLMHA

Torque limiting signal TLMA

OFF

”0”

ON within regular speed

(Stop)

(Storage)

Projection

Limit switch

(Stop confirmation signal)

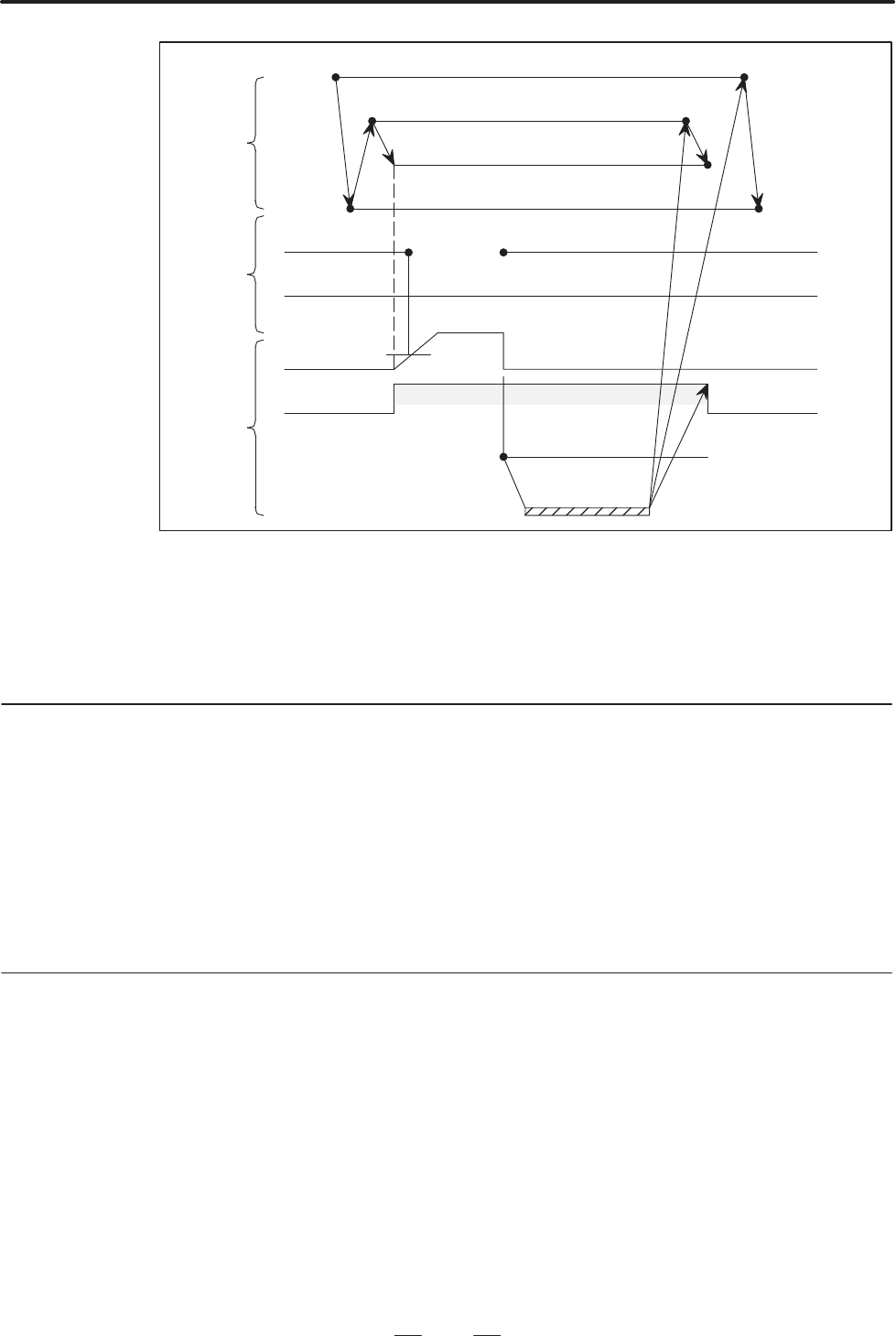

Example of machine type orientation sequence

When the conditions desicribed on the privious page are difficult, use the

purely electric type spindle orientation (option) which does not use a

stopper.

D After removing the various alarm causes such as motor overheating,

excess speed deviation, short-circuiting, excess speed, excess voltage,

excess current, excess load, and voltage drop, if the alarm reset signal

is input, the alarm is released and the usable state occurs.

D Even if this signal isinputted when there is no alarm, it is disabled.

D The alarm detected by power supply module is not released.

(Such alarms reset by turning off the power.)

D If the state occurs in which the spindle motor operation cannot be

continuously executed, the power to the spindle motor will become

OFF and the spindle motor will be stopped.

D At the same time the alarm signal ALMA = 1 occurs. Regarding the

alarm contents, confirm by the display section of the spindle amplifier.

D Set the command signal to the spindle amplifier (speed command,

forward/reverse rotation command, torgue limit command, spindle

orientation command ) in the reset state using the alarm signal output.

If it is not in the reset state (state that signal from PMC is all clear),

when the alarm on the spindle amplifier is released there is a danger

that the spindle motor may rotate.

10.2.8

Alarm Reset Signal

(ARSTA)

10.2.9

Spindle Alarm Signal

(ALMA)
