Alpha Series AC Servo Amplifier Descriptions Page 333

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

313

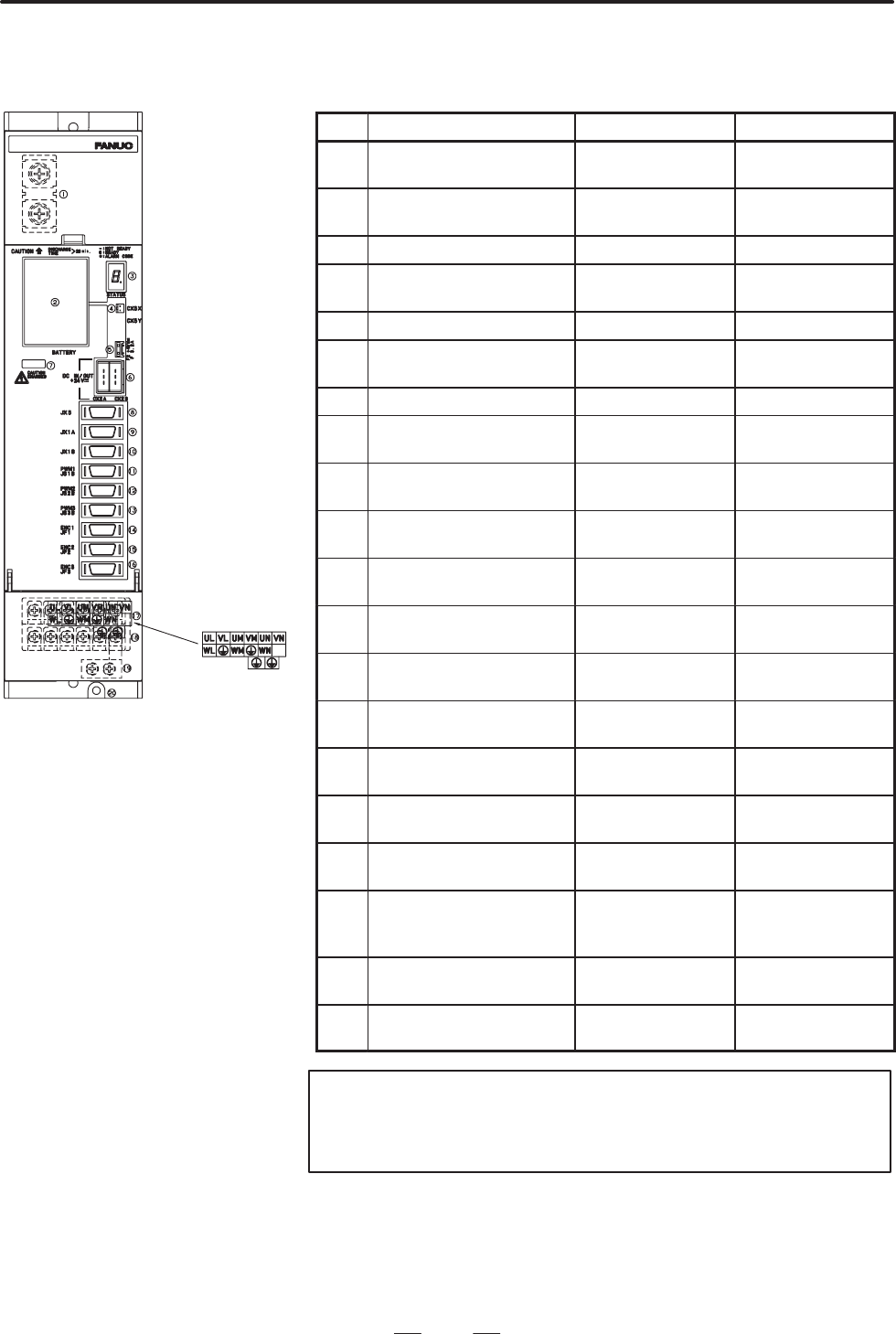

Table.9.3.2 (g) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X Both connectors

have same function.

5 Fuse for 24V power F2 3.2A, 48VDC

6 24V power I/O connector CX2A/CX2B Both connectors

have same function.

7 DC link charge LED (Warning)

8 Signal check connector JX5 Use an SVM check

board.

9 Input connector for inter-

face between modules

JX1A

10 Output connector for inter-

face between modules

JX1B

11 NC interface connector : L

axis for type–B interface

PWM1/JS1B

12 NC interface connector : M

axis for type–B interface

PWM2/JS2B

13 NC interface connector : N

axis for type–B interface

PWM3/JS3B

14 Pulse coder connector : L

axis

ENC1/JF1

15 Pulse coder connector : M

axis

ENC2/JF2

16 Pulse coder connector : N

axis

ENC3/JF3

17 Terminal block for motor

power line

18 Terminal names for termi-

nal block for motor power

line

Display the terminal

block TB2

19 Earth plate Attatched to amplifi-

20 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(g)–2 TYPE B
