B–65162E/03

10. INTERFACE SIGNALS

409

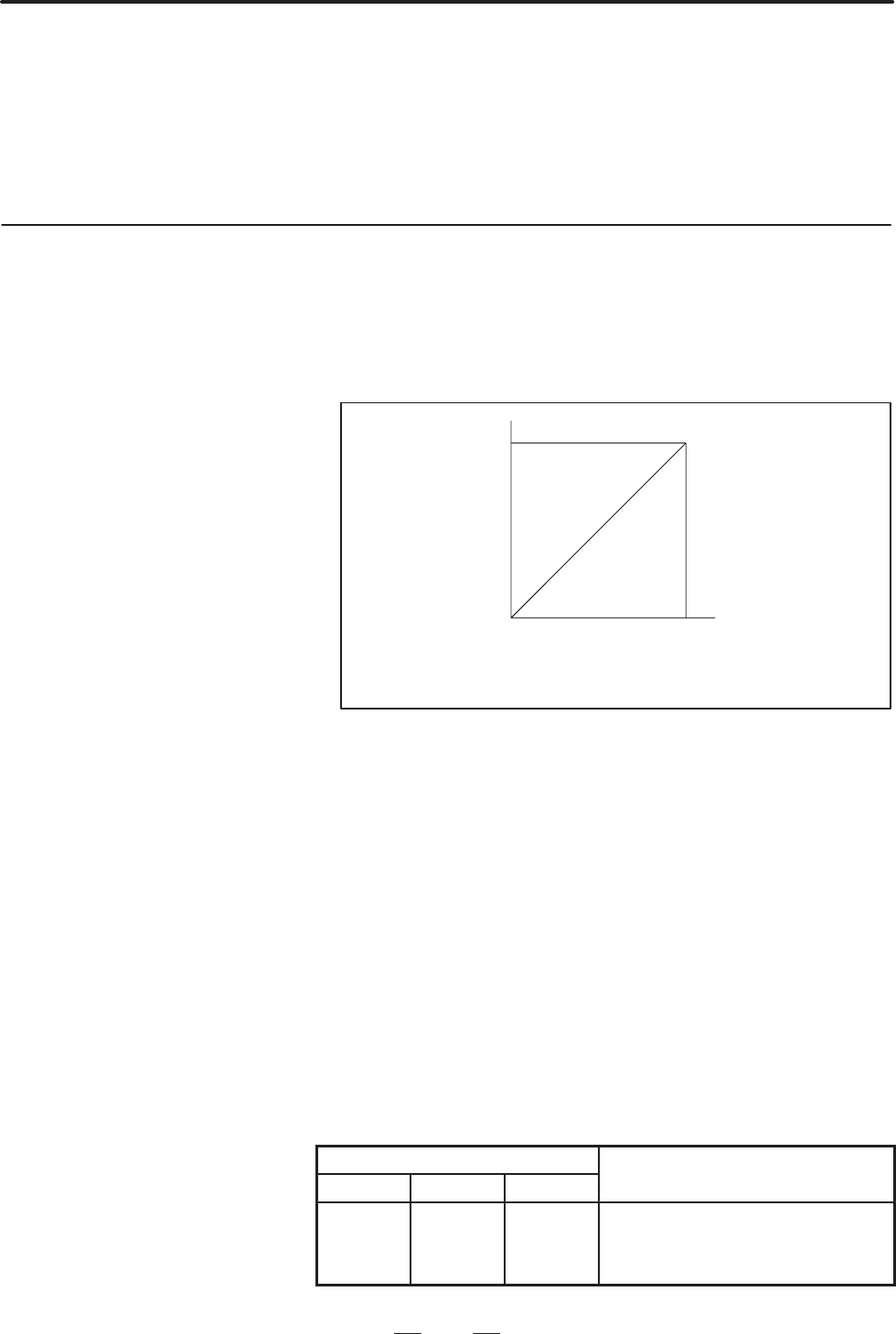

D The output frequency of the AC spindle motor can be indicated by

externally connecting a speedmeter.

A voltage (DC) proportional to the rotation speed is output,

irrespective of the forward or reverse rotation of the motor. A +10V

is output at the maximum frequency.

+10V

0min

–1

Output

voltage

(DC)

Motor rotation speed

Max. output frequency

D Use the following speedmeter

(DC voltmeter)

- One-sided deflection DC voltmeter

- DC voltage 10V full scale

- Internal resistance higher than 10 kΩ

Example)

DC voltmeter LM-80: Kuwano Electrical Manufacturing Co., Ltd.

D For deteils of connection cable and connectors, refer to

9.3.6(3).

D Due to the construction of internal circuit, there exists about

10mV (0.1%) ripple at the output of SM terminal

D This signal can be used for load meter by setting the

parameter (PRM4007#4=1 : series 16). The load meter

outputs +10V when the spindle motor exhibits its maximum

output.

Parameter

Contents

FS0 FS15 FS16

Contents

6507#4

6607#4

3007#4

3147#4

4007#4 Selects type of data output from SM ter-

minal

0 : Frequency data

1 : Load meter data

10.5

SPINDLE AMPLIFIER

OUTPUT SIGNALS

(αC SERIES SPINDLE)

10.5.1

Output Frequency

Display Signal (SM)

(Usable as Load Meter

Voltage Signal

According to

Parameter Setting)
