10. INTERFACE SIGNALS

B–65162E/03

372

D Because the spindle motor enters the power OFF, coasting operates at

the same time as the alarm signal is output, it is necessary to set in an

emergency stop state and to set the feedhold state at the CNC or

magnetics cabinet side.

D When the alarm state has occurred, ALMA = 1 occurs.

While the alarm signal is 1, the spindle motor enters coasting operates

state regardless of any command from the outside.

D The relationship between the alarm signal and the alarm reset signal

is as shown in Fig. 10.2.9.

Forward rotation/back

rotation command

SFRA (SRVA)

(Stop)

Motor rotation speed

Does not operate even

when there is a command

Usable state

Motor operation

Spindle control

output signal

Spindle control

input signal

Remove the alarm cause

(Alarm reset)

Speed command

ARSTA

(Alarm)

ALMA

Spindle orientatin

commandORCMA

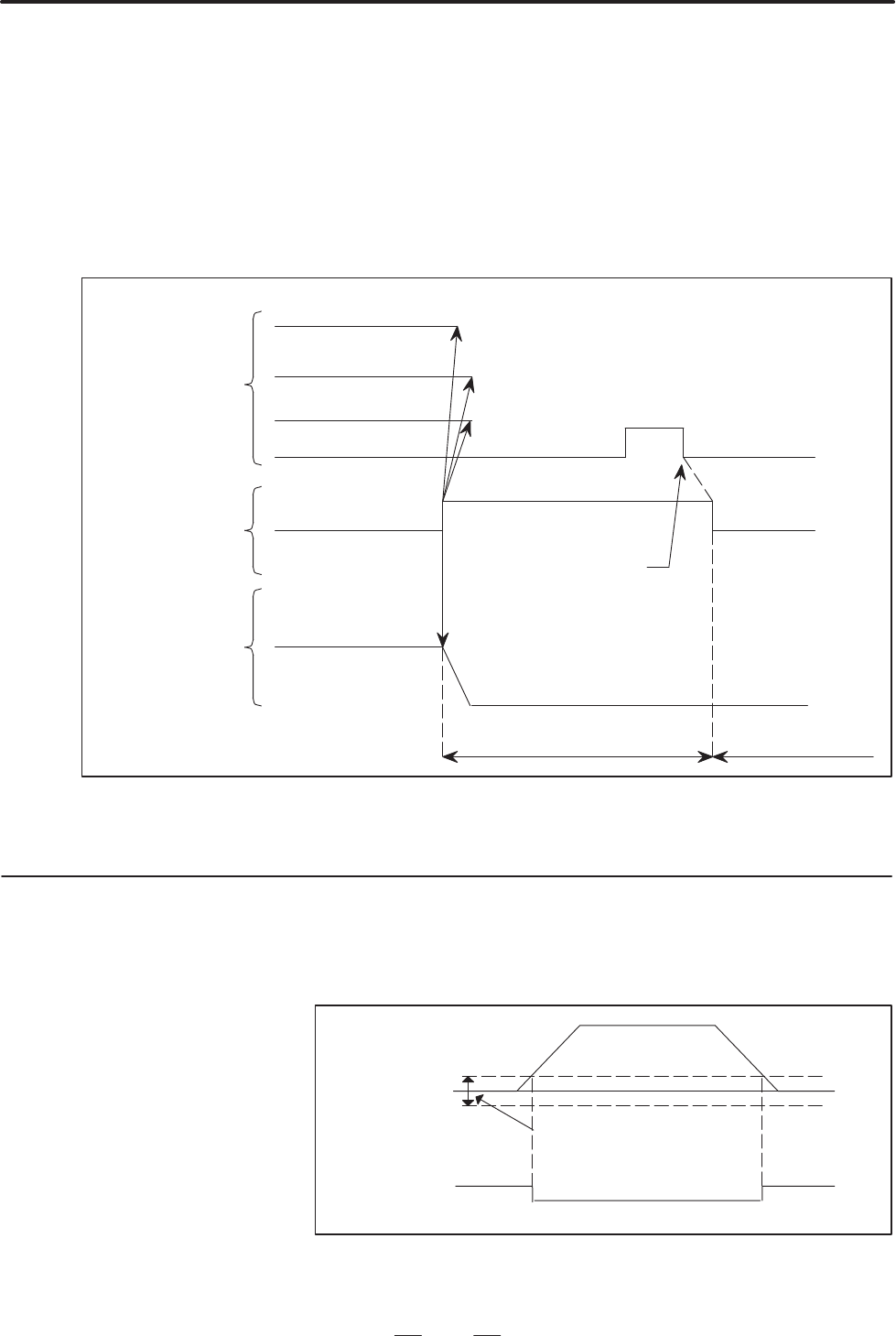

Fig.10.2.9 Timing Chart of the Spindle Alarm Signal

D If the actual rotation speed of the spindle motor is reduced to be lower

than the zero-speed detection point for the stop command, SSTA = 1

occurs.

Zero-speed detection point

("0.75%of maximum speed

as the standard)

(0)

SSTA (1)

(1)

Motor

speed

Fig.10.2.10 Signal Indicating that the spindlespeed dropped

to close to zero

10.2.10

Zero-speed Detecting

Signal (SSTA)
