Alpha Series AC Servo Amplifier Descriptions Page 634

Descriptions

Page of 699

/ 699

B–65162E/03

F. SPECIFICATIONS OF CABLES

APPENDIX

615

Use

Sym-

bol

Specification

FANUC specification

(complete cable)

α3, α6, α12,

α22, α30,

α40, α65,

α100, α150,

αM3, αM6,

αM9, αM22,

αM30, αC3,

αC6 αC12

K22

A02B–0200–K800

(Cable length : 14m)

αC6

αC12

αC22, αL3,

αL6, αL9,

αL25, αL50

(for FS15B,

16, 18, 20,

SVM pulse

coders)

K22

A02B–0200–K801

(Cable length : 14m)

α3, α6, α12,

α22, α30,

α40, α65,

α100, α150,

αM3, αM6,

αM9, αM22,

αM30, αC3,

αC6 αC12

K22

A02B–0098–K860

(Cable length : 14m)

αC6

αC12

αC22, αL3,

αL6, αL9,

αL25, αL50

(for FS0

and FS15A

pulse cod-

ers)

K22

A02B–0098–K861

(Cable length : 14m)

NOTE

4 FANUC drawing number (wire only): A66L–0001–0286

Contact:

Hitachi Cable Trading Company 03(3255)5415

Oki Electric Cable Co., Ltd. 044(766)3171

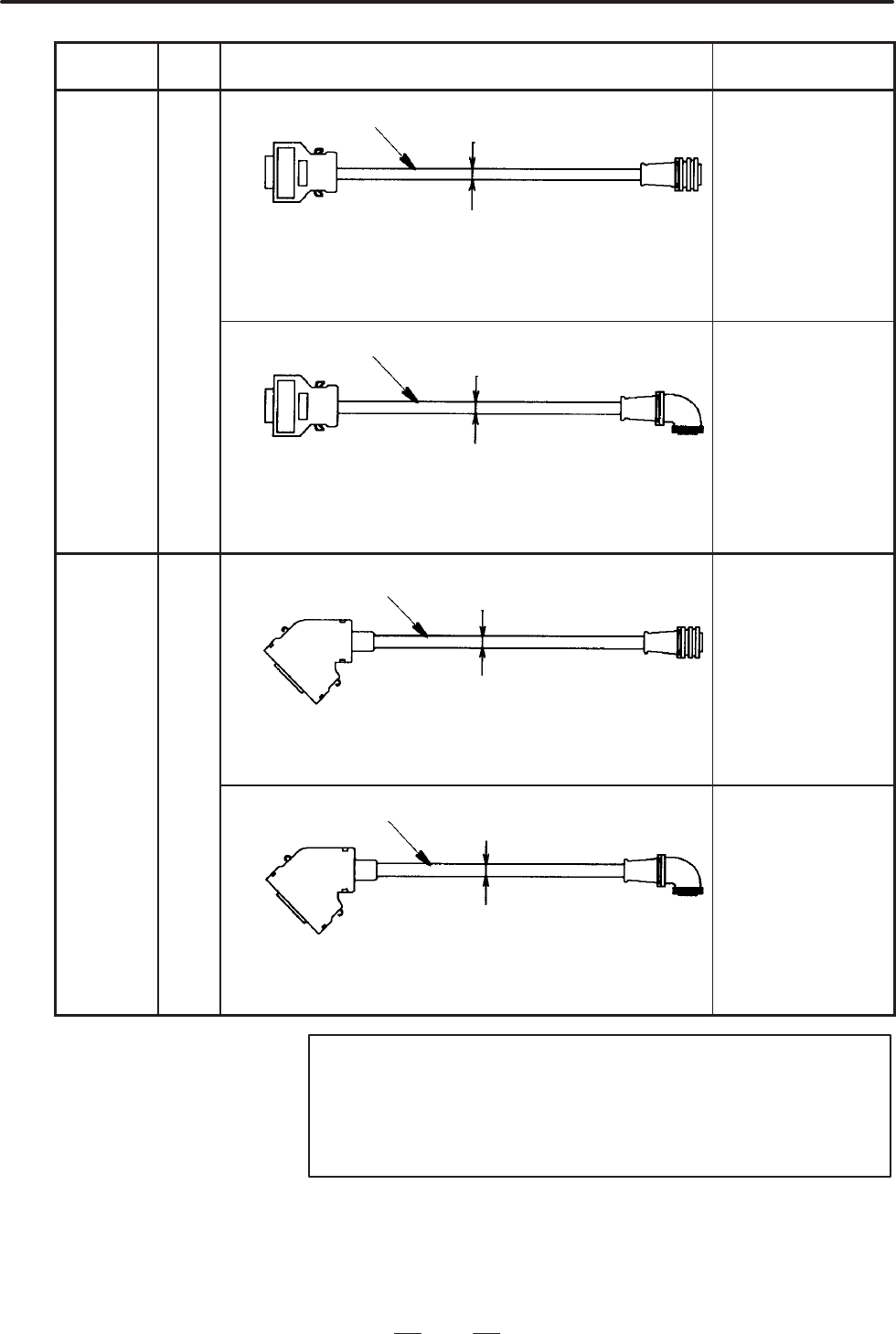

Composite 12–conductor group shielded cable,

NC side(JF*)

SVM side (JF*)

φ8.5

Motor side

6 conductors 0.5mm

(20/0.18)

3 pairs 0.18 mm

(7/0.18) (Note 4)

Connector manufactured by

Hirose Electric

Connector: FI40–2015S

Housing: FI–20–CV

Connector:

H/MS3106A20–29SW(11)

JA06A–20–29SW–JI–EB

Cable clamp:

H/MS3057–12A

Composite 12–conductor group shielded cable,

NC side(JF*)

SVM side (JF*)

φ8.5

Motor side

6 conductors 0.5mm

(20/0.18)

3 pairs 0.18 mm

(7/0.18) (Note 4)

Connector manufactured by

Hirose Electric

Connector: FI40–2015S

Housing: FI–20–CV

Connector:

H/MS3106A20–29SW(11)

JA06A–20–29SW–JI–EB

Cable clamp:

H/MS3057–12A

Composite 12–conductor group shielded cable,

NC side(JF*)

φ8.5

Motor side

6 conductors 0.5mm

(20/0.18)

3 pairs 0.18 mm

(7/0.18) (Note 4)

Connector manufactured by

Honda Tsushin Kogyo

Connector: MR–20LMH

Connector:

H/MS3106A20–29SW(11)

JA06A–20–29SW–JI–EB

Cable clamp:

H/MS3057–12A

Composite 12–conductor group shielded cable,

NC side(M*)

φ8.5

Motor side

6 conductors 0.5mm

(20/0.18)

3 pairs 0.18 mm

(7/0.18) (Note 4)

Connector manufactured by

Honda Tsushin Kogyo

Connector: MR–20LMH

Connector:

H/MS3106A20–29SW(11)

JA06A–20–29SW–JI–EB

Cable clamp:

H/MS3057–12A
