9. CONNECTION

B–65162E/03

202

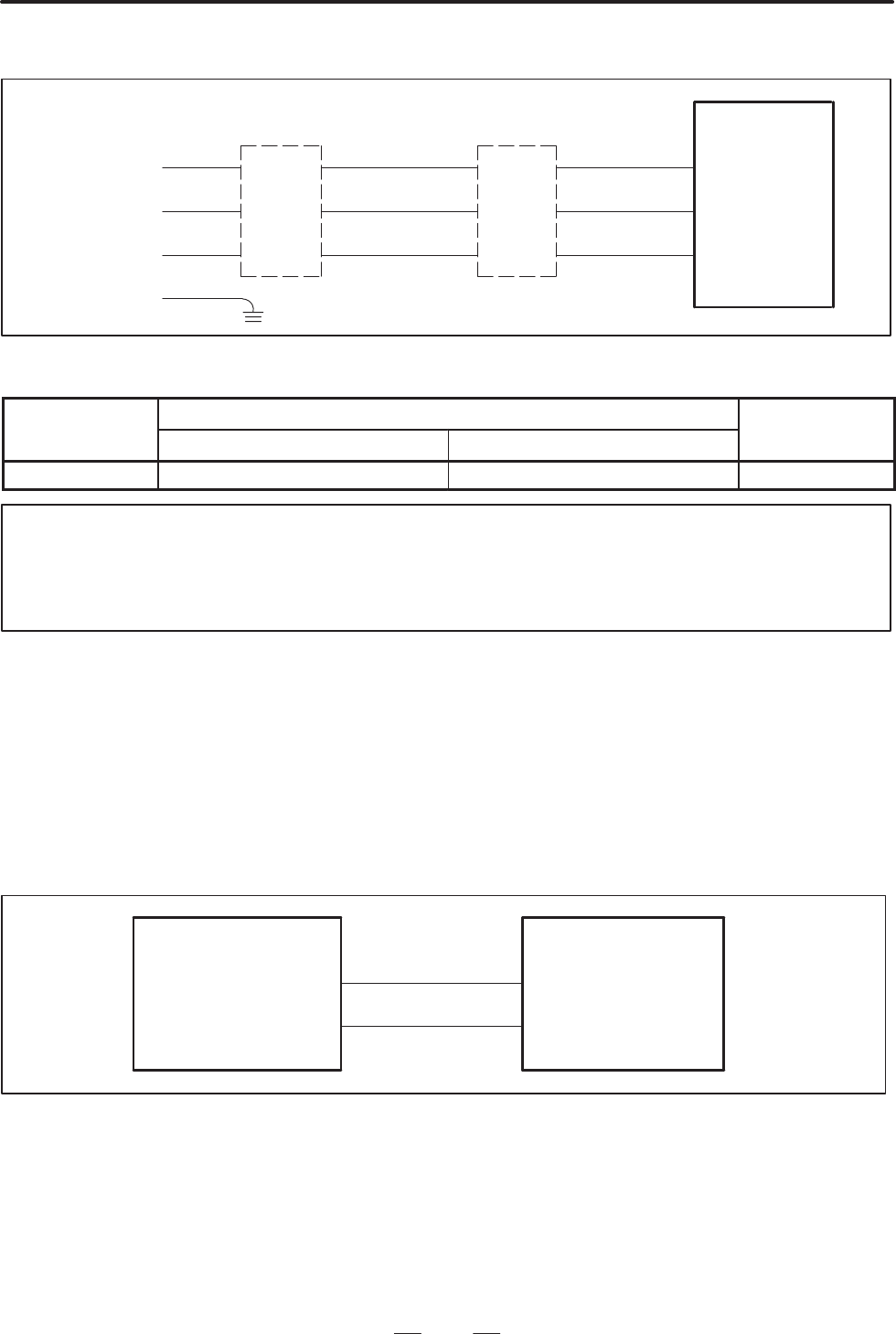

– Connection with the PSMV–HV

Main power

supply

AC400V

AC460V

50/60Hz

MCC

reactor

unit

TB2

(L1)

(L2)

(L3)

PSMV–

Table.9.2.1 (c) Cable K1 Specifications

Model

Applicable cable

Terminal screw

Model

Heavy–duty power cable (Note 1) Heat–resistant cable (Note 2)

Terminal

screw

PSMV–11HV 14 mm

or larger 8 mm

or larger M6

NOTE

1 Four–conductor polyvinyl heavy–duty power cable (JIS C3312)

2 Fire–retardant polyflex wire (maximum conductor temperature 105_C) or equivalent to LMFC

manufactured by The Furukawa Electric Co., Ltd.

(2) Detailed description of the connection of short bar K2

Short bar K2 is used to supply the DC link voltage generated in each power supply module to other modules.

When designing a short bar for connecting modules placed close to each other, refer to the ”Specifications of short

bars for connecting modules placed close to each other.”

To determine the length of a short bar to be used for connecting modules placed separately, refer to ”Location of

terminal board TB1.”

Optional short bars are available from FANUC. Refer to the ”FANUC Short Bar Specifications.”

TB1

L+

L–

TB1

L+

L–

SVM

SPM

PSM

PSMR

Terminal screw M6
