B–65162E/03

9.CONNECTION

307

1. TYPE A, TYPE B Interface

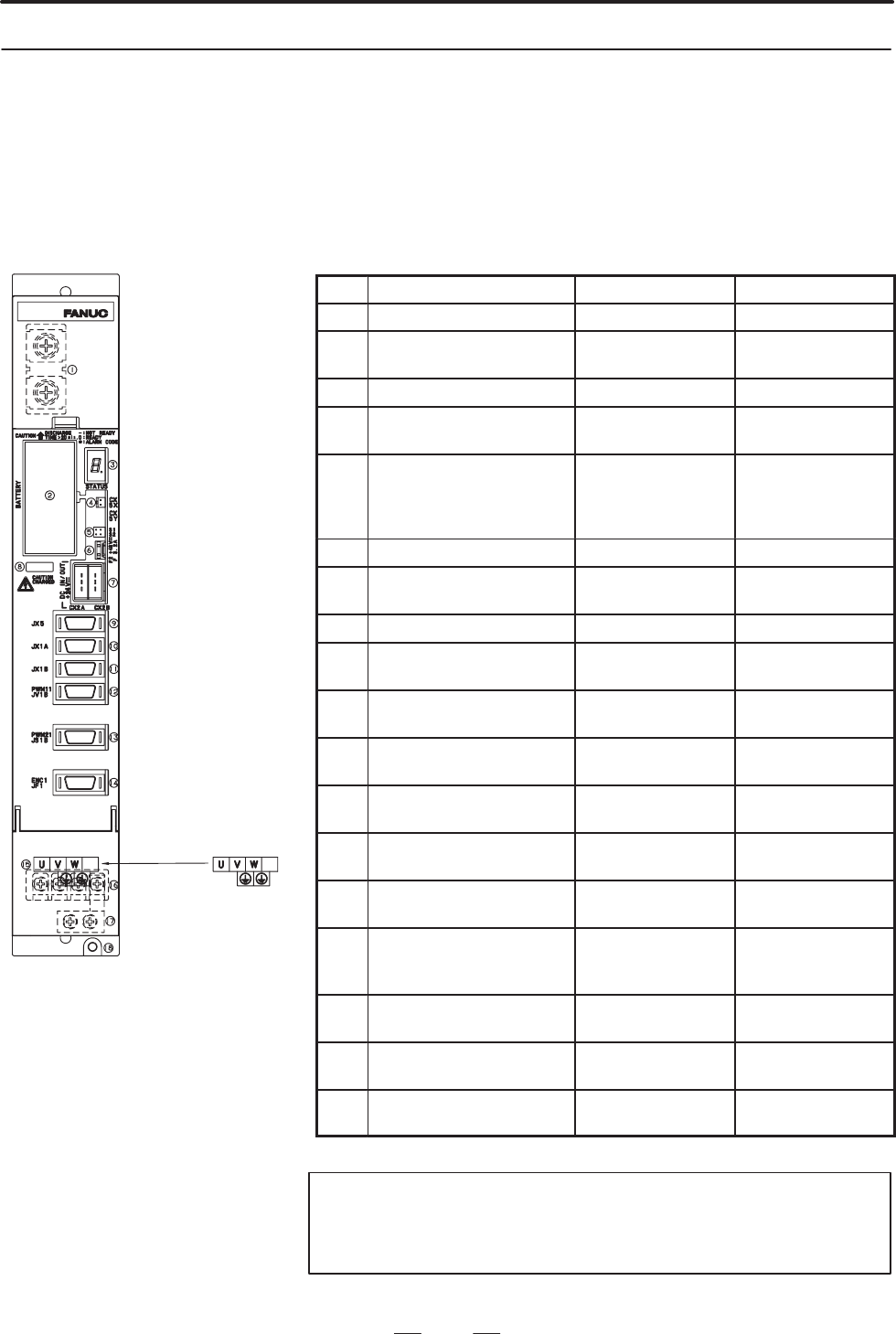

Table.9.3.2 (a) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block M6

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X

5 Interface switching con-

nector

S1/S2 Type–A interface:

Type–B interface:

6 Fuse for 24V power F2

7 24V power I/O connector CX2A/CX2B Both connectors

have same function.

8 DC link charge LED (Warning)

9 Signal check connector JX5 Use an SVM check

board.

10 Input connector for inter-

face between modules

JX1A

11 Output connector for inter-

face between modules

JX1B

12 NC interface connector for

type–A interface

PWM11/JV1B FS16, FS18, FS15,

FS0, etc.

13 NC interface connector for

type–B interface

PWM21/JS1B FS20, FS21–G, etc.

14 Pulse coder connector ENC1/JF1 Only for type–B in-

terface

15 Terminal names for termi-

nal block for motor power

line

16 Terminal block for motor

power line

Display the terminal

block TB2

17 Earth plate Attatched to amplifi-

18 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

9.3.2

Servo Amplifier Module

(a) SVM1–12, SVM1–20, SVM1–40S,

SVM1–40L,SVM1–80
