9. CONNECTION

B–65162E/03

214

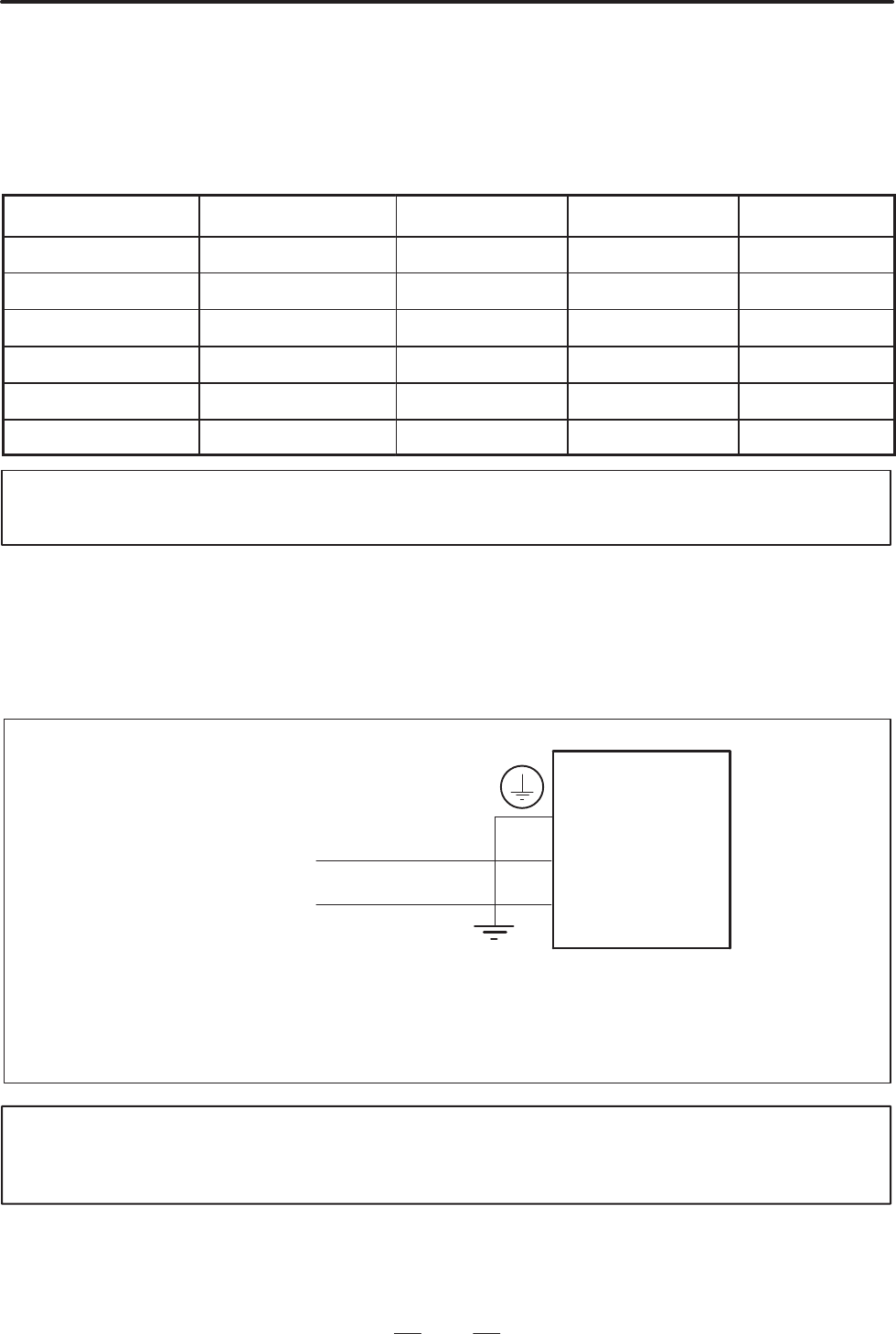

(2) Specifications of short bars for connecting 300–mm–wide modules

The short bars listed in Table 9.2.1 (g) and shown in Figures 9.2.1 (a)

to (f) can be used to connect modules placed 20 mm (or 2 mm between

a 300–mm–wide PSM and 300–mm SPM) apart from each other.

Table.9.2.1 (g) Short Bar Specifications

Symbol Ordering information Module on the left Module on the right Outline drawing

(G) A06B–6078–K823 300mm wide PSM 300mm wide SPM Figure 9.2.1 (a)

(H) A06B–6078–K826 300mm wide PSM 150mm wide Figure 9.2.1 (b)

(I) A06B–6078–K827 300mm wide PSM 90 or 60 mm wide Figure 9.2.1 (c)

(J) A06B–6078–K828 300mm wide SPM 150mm wide Figure 9.2.1 (d)

(K) A06B–6078–K829 300mm wide SPM 90 or 60 mm wide Figure 9.2.1 (e)

(L) A06B–6078–K830 150mm wide PSM 300mm wide SPM Figure 9.2.1 (f)

NOTE

Short bars are ordered in pairs.

(3) Detailed description of the connection of cable K3

Cable K3 is used to supply control power to the power supply module.

Note that if the PSMR is combined with the SPM–11 (with a fan adapter),

the connection will differ from that explained below.

Control power

200V, single–phase

200S

200R

CX1A

PSM

PSMR

(3)

(2)

(1)

350/X

Cable specification: Two–conductor polyvinyl heavy–duty power cable

(JIS C3312), conductor size of 1.25 mm

(50/0.18),

PVC sheath 9.6 mm in diameter

Connector specification: AMP connector with receptacle housing

1–178128–3 and receptacle contact 1–175218–2

NOTE

Always connect cable K3 to the CX1A. If it is connected to the CX1B, fuses inside the unit may

blow.
