B–65162E/03

11. OPTION RELATED TO SPINDLE

531

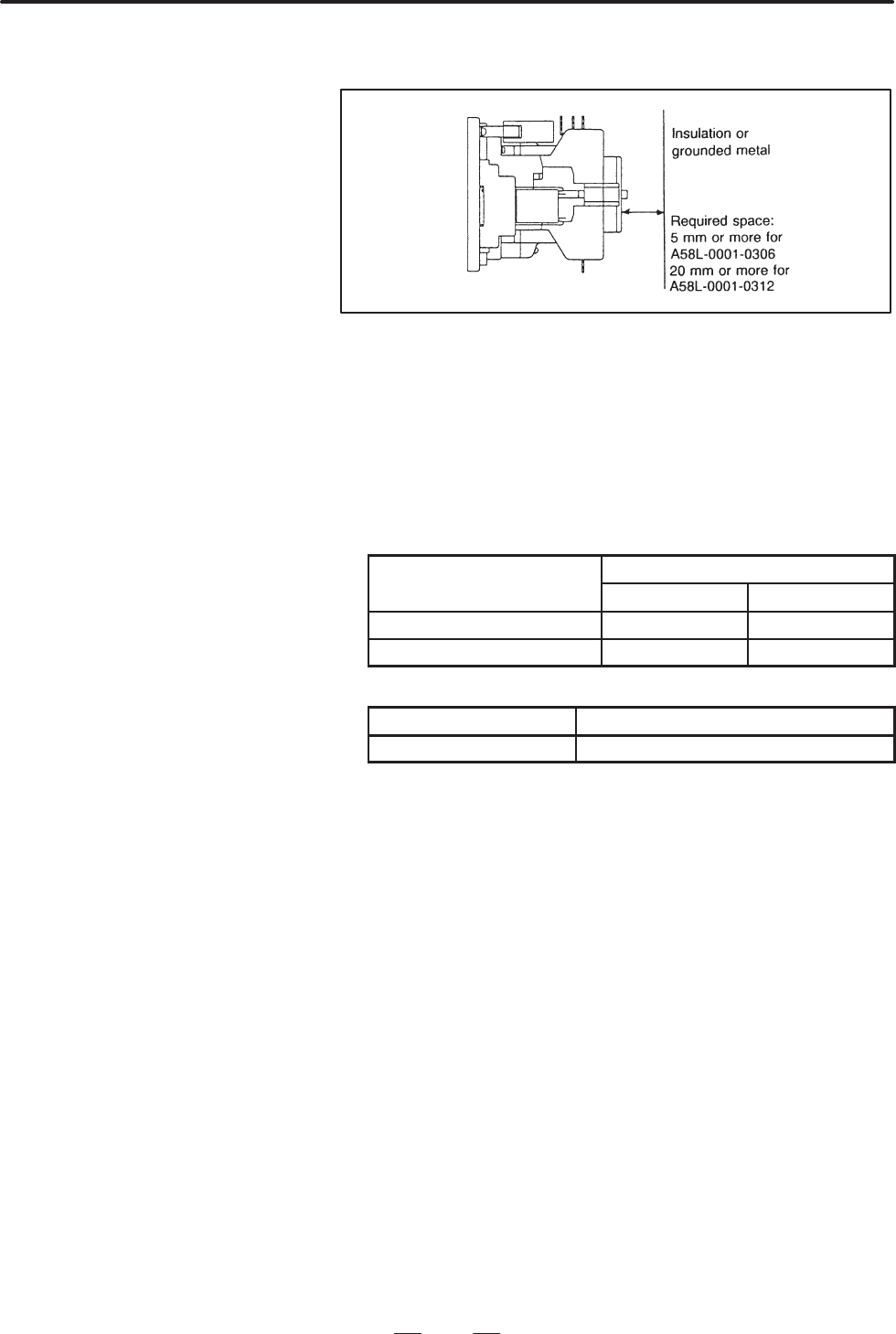

D Leave enough space to prevent arc from affecting other units, as shown

in Fig. 11.7.6 (c).

Fig.11.7.6 (c) Required Space

D If an electromagnetic contactor is installed incorrectly, contacts may

jump at power on or its life may be decreased. If a cable is not

connected to the contactor securely, the connected part may generate

heat or the cable may loosen and come off, resulting in a serious

accident.

- Tightening torque

z Electromagnetic contactor

Item

Tightening torque (kg · cm)

Item

A58L-0001-0306 A58L-0001-0312

MCC main terminal 62.0 (M6.0) 84.0 (M8.0)

MCC supplementary terminal 14.0 (M3.5) 14.0 (M3.5)

z Relay socket

Item Tightening torque (kg · cm)

Relay socket 14.0 (M3.5)
