10. INTERFACE SIGNALS

B–65162E/03

382

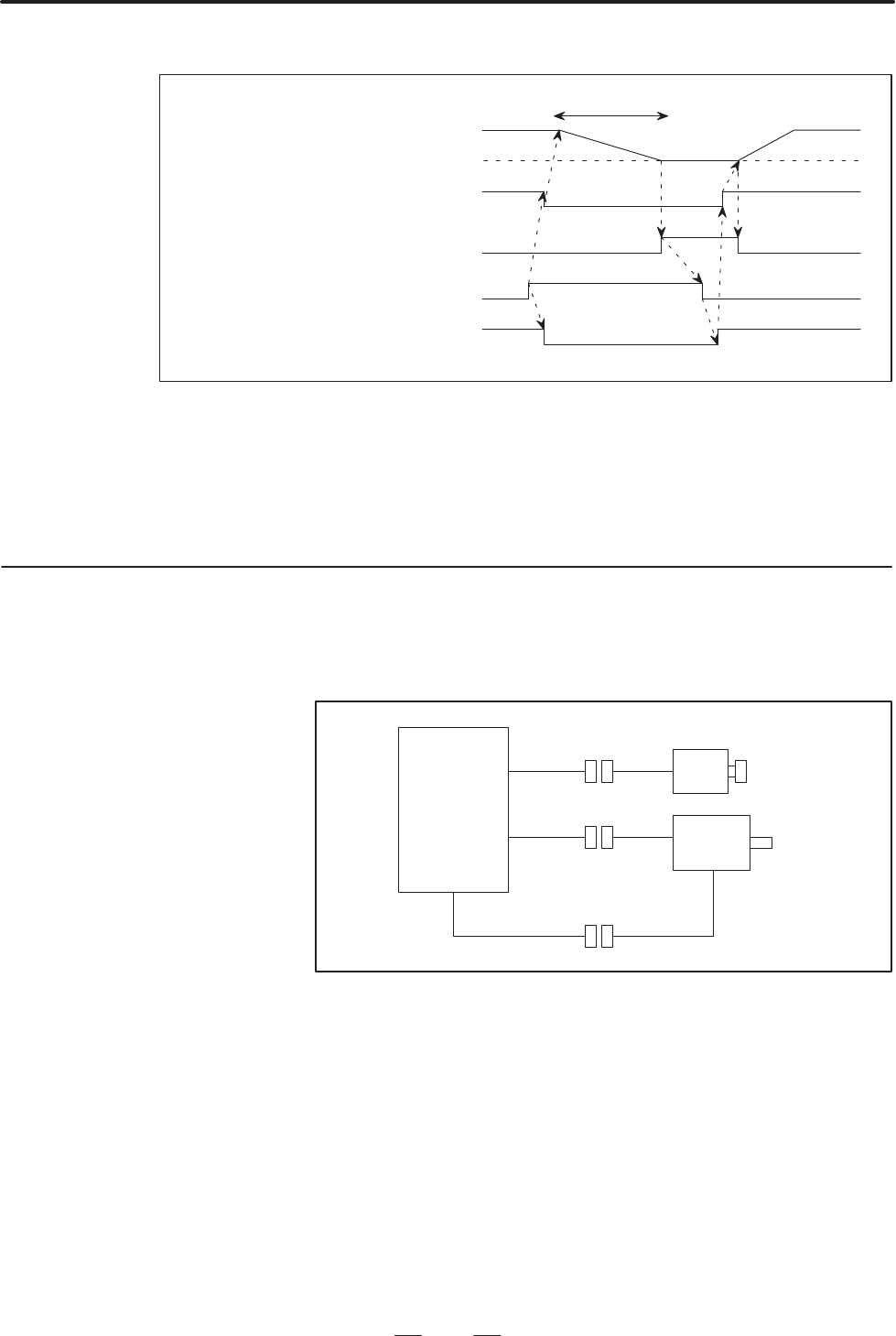

D Example of the sequence

Motor speed

Motor power

Zero speed detection signal, SSTA

Motor power off signal, MPOFA

Operation mode such as SFRA

0 min

–1

Free run

OFF

D Setting bit 2 of parameter 4069 (FS16) to 1 cuts off the power of the

motor as soon as the AL-24 spindle alarm (serially transmitted data

error) occurs. The motor usually decelerates and stops when the alarm

occurs.

(1) This signal is used when it is necessary to disconnect a spindle

amplifier from a spindle motor temporarily.

SPM

JY4

JY2

Feedback

signal

Power line

Motor

Position coder

Feedback

signal

(2) Using this signal enables preventing a motor overheat or feedback

signal disconnection alarm condition when the feedback signal is

disconnected.

(3) Before the power line is disconnected, the motor excitation off

affirmation (EXOFA) signal can be used to check that the motor is not

energized.

(4) Before disconnecting the feedback signal and power line, set all of the

SFRA, SRVA, ORCMA, MRDYA, and *ESPA commands to 0, and

check that the EXOFA signal is 1, then set this signal to 1. After

reconnection is completed, reset the signal to 0.

10.2.18

Disconnection

Annulment Signal

(DSCNA)
