9. CONNECTION

B–65162E/03

316

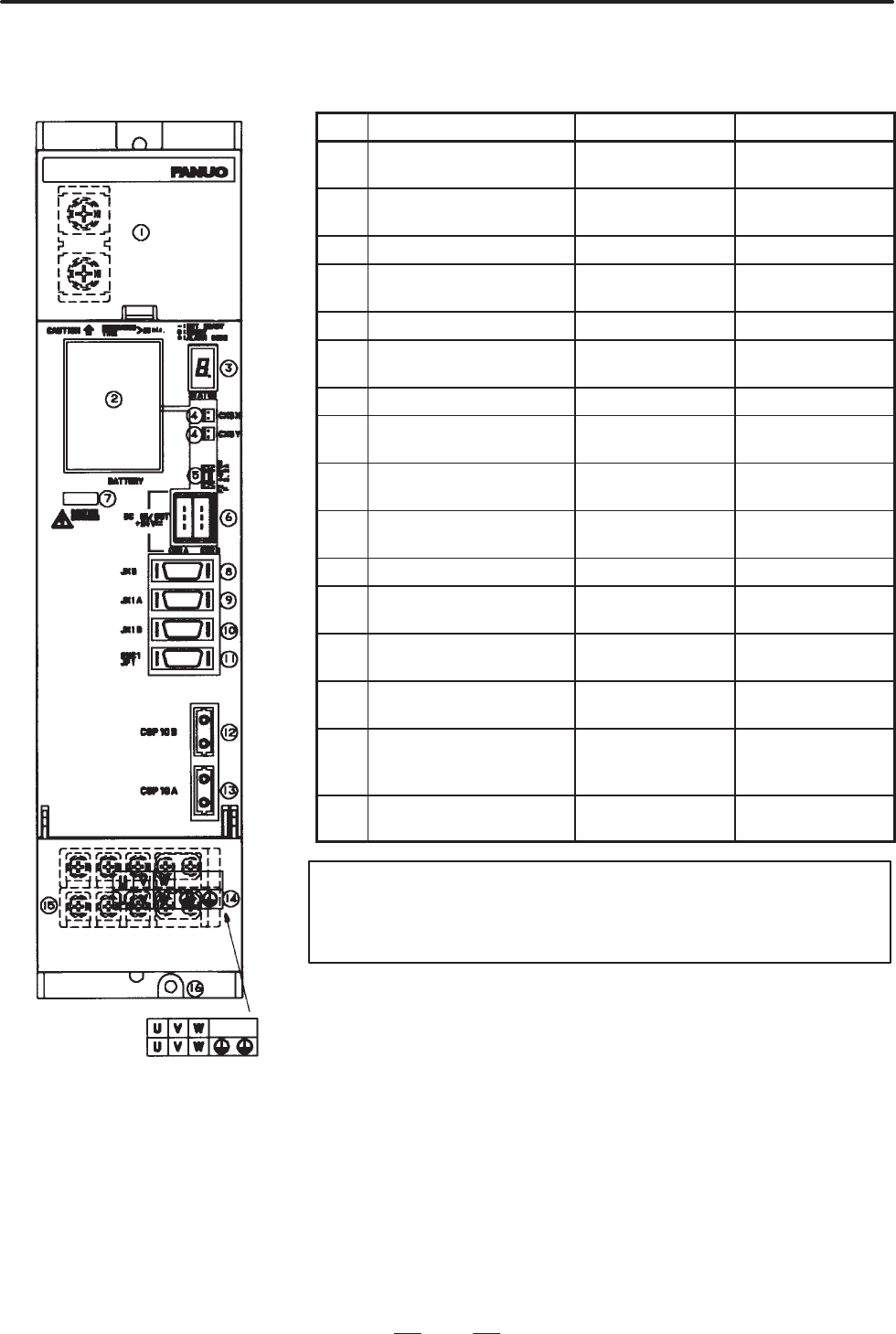

Table.9.3.2 (j) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X

CX5Y

Both connectors

have same function.

5 Fuse for 24V power F2 3.2A, 48VDC

6 24V power I/O connector CX2A

CX2B

Both connectors

have same function.

7 DC link charge LED (Warning)

8 Signal check connector JX5 Use an SVM check

board.

9 Input connector for inter-

face between modules

JX1A

10 Output connector for inter-

face between modules

JX1B

11 Pulse coder connector ENC1/JF1

12 FSSB optical input connec-

tor

COP10B

13 FSSB optical output con-

nector

COP10A

14 Terminal block for motor

power line

15 Terminal names for termi-

nal block for motor power

line

Display the terminal

block TB2

16 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(b) SVM1–130
