12. DETECTORS FOR THE SPINDLE

539

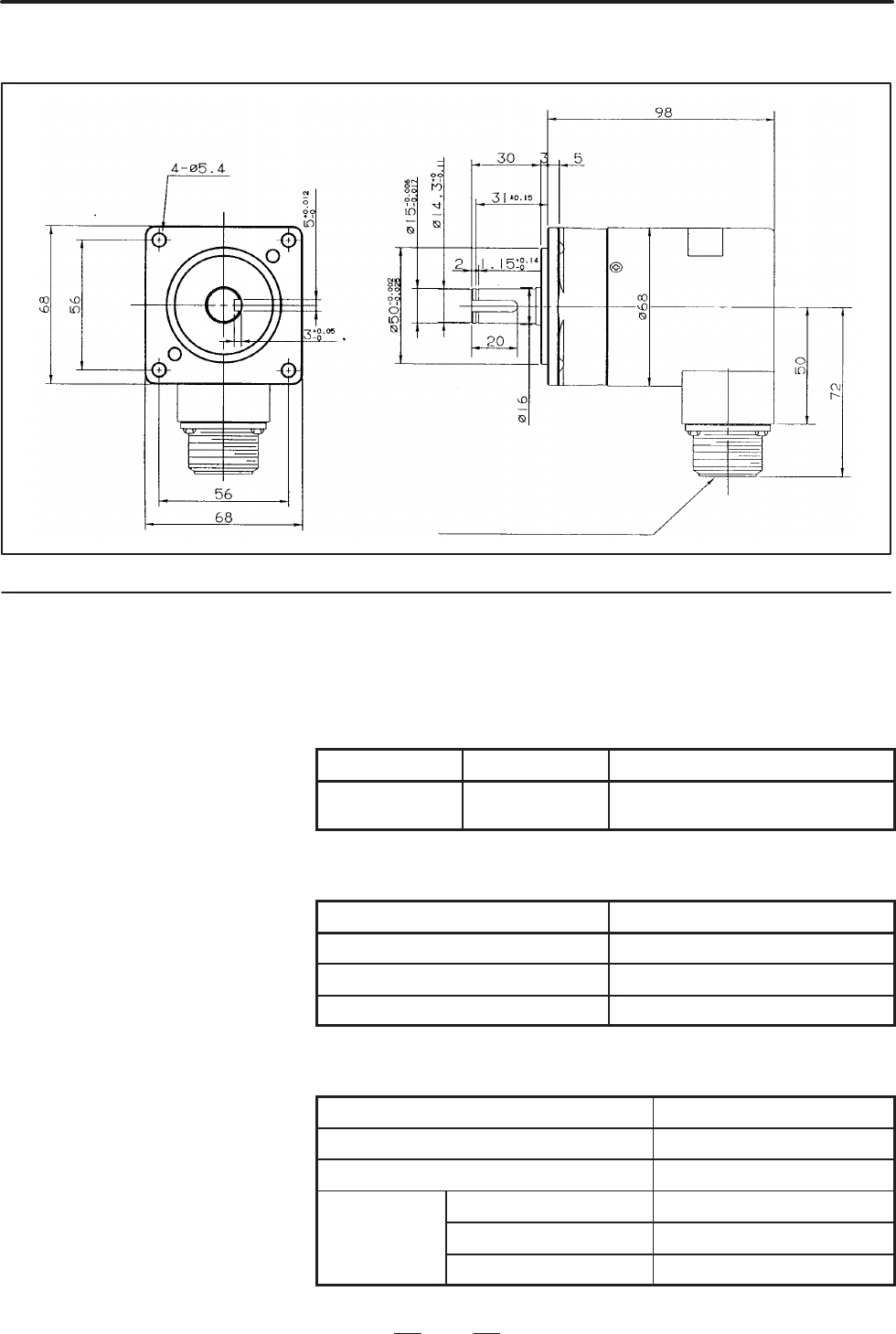

(7) Outline Drawing

MS connector:

MS3102A–20–29P

(1) Name and Drawing Number

Table.12.1.2 (a) Name and Drawing Number

Name Drawing No. Remarks

High–resolution

position coder

A860–0319–T002 Mounted with j68 flange,8,000 min

–1

(2) Absolute Maximum Ratings

Table.12.1.2 (b) Absolute Maximum Ratings

Item Specifications

Power supply voltage –0.5V to +7.0V

Operating temperature 0_C to +50_C

Humidity 95% RH or less

(3) Electrical Specifications

Table.12.1.2 (c) Electrical Specifications

Item Specifications

Power supply voltage 5V"5%

Current consumption 350mA or less

PAE,*PAE,PBE,*PBE 1,024 pulses/rev

Output signal PSE,*PSE 1 pulse/rev

AP,XAP,BP,XBP 3,000 λ/rev

12.1.2

High–resolution

Position Coder
