9. CONNECTION

B–65162E/03

312

Table.9.3.2 (f) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Status LED STATUS

3 Fuse for 24V power F2 3.2A, 48VDC

4 24V power I/O connector CX2A/CX2B Both connectors

have same function.

5 DC link charge LED (Warning)

6 Signal check connector JX5 Use an SVM check

board.

7 Input connector for inter-

face between modules

JX1A

8 Output connector for inter-

face between modules

JX1B

9 NC interface connector : L

axis for type–A interface

PWM1/JV1B

10 NC interface connector : M

axis for type–A interface

PWM2/JV2B

11 NC interface connector : N

axis for type–A interface

PWM3/JV3B

12 Terminal block for motor

power line

13 Terminal names for termi-

nal block for motor power

line

Display the terminal

block TB2

14 Earth plate Attatched tp amplifi-

15 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

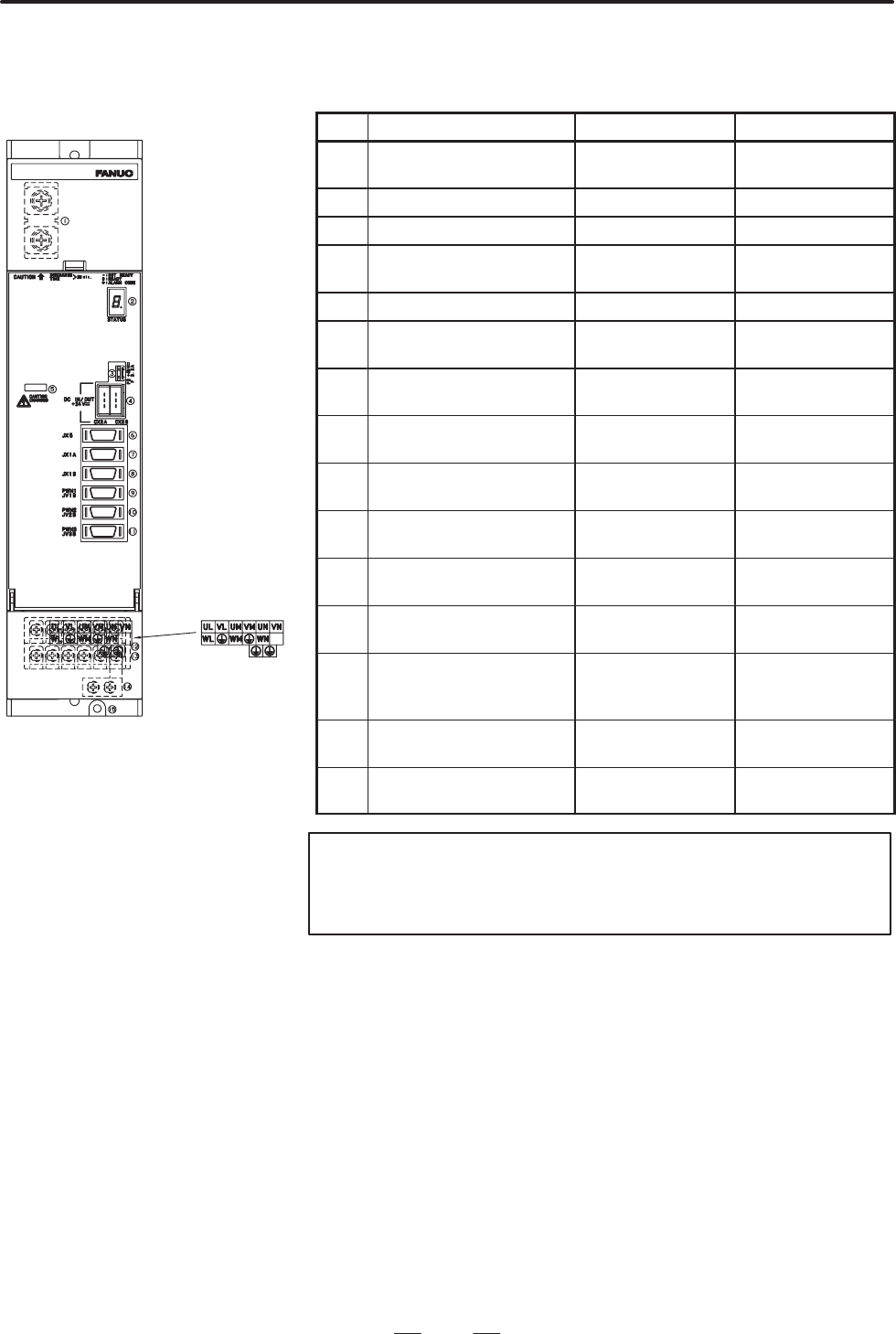

(f) SVM3–12/12/12,SVM3–12/12/20,

SVM3–12/20/20, SVM3–20/20/20,

SVM3–12/12/40 SVM3–12/20/40,

SVM3–20/20/40

(f)–1 TYPE A
