Alpha Series AC Servo Amplifier Descriptions Page 339

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

319

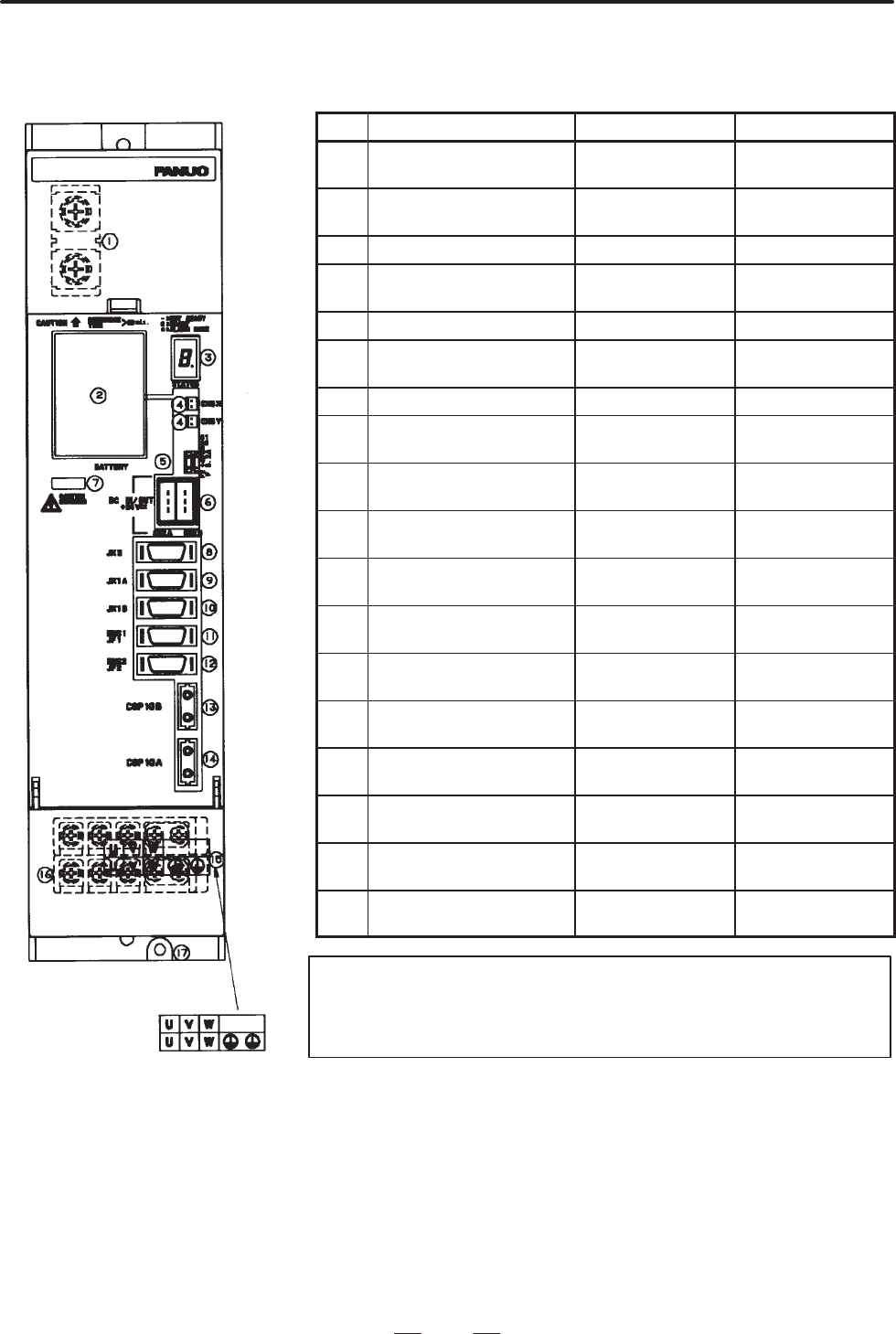

Table.9.3.2 (m) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X/CX5Y Both connectors

have same function.

5 Fuse for 24V power F2 3.2A, 48VDC

6 24V power I/O connector CX2A/CX2B Both connectors

have same function.

7 DC link charge LED (Warning)

8 Signal check connector JX5 Use an SVM check

board.

9 Input connector for inter-

face between modules

JX1A

10 Output connector for inter-

face between modules

JX1B

11 Pulse coder connector for

the L–axis

ENC1/JF1

12 Pulse coder connector for

the M–axis

ENC2/JF2

13 FSSB optical input connec-

tor

COP10B

14 FSSB optical output con-

nector

COP10A

15 Terminal block for motor

power line

16 Motor power line terminal

board for the M–axis

Display the terminal

block TB2

17 Motor power line terminal

board for the L–axis

Display the terminal

block TB2

18 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(e) SVM2–12/12, SVM2–12/20,

SVM2–20/20, SVM2–12/40,

SVM2–20/40, SVM2–40/40
