11. OPTION RELATED TO SPINDLE

B–65162E/03

480

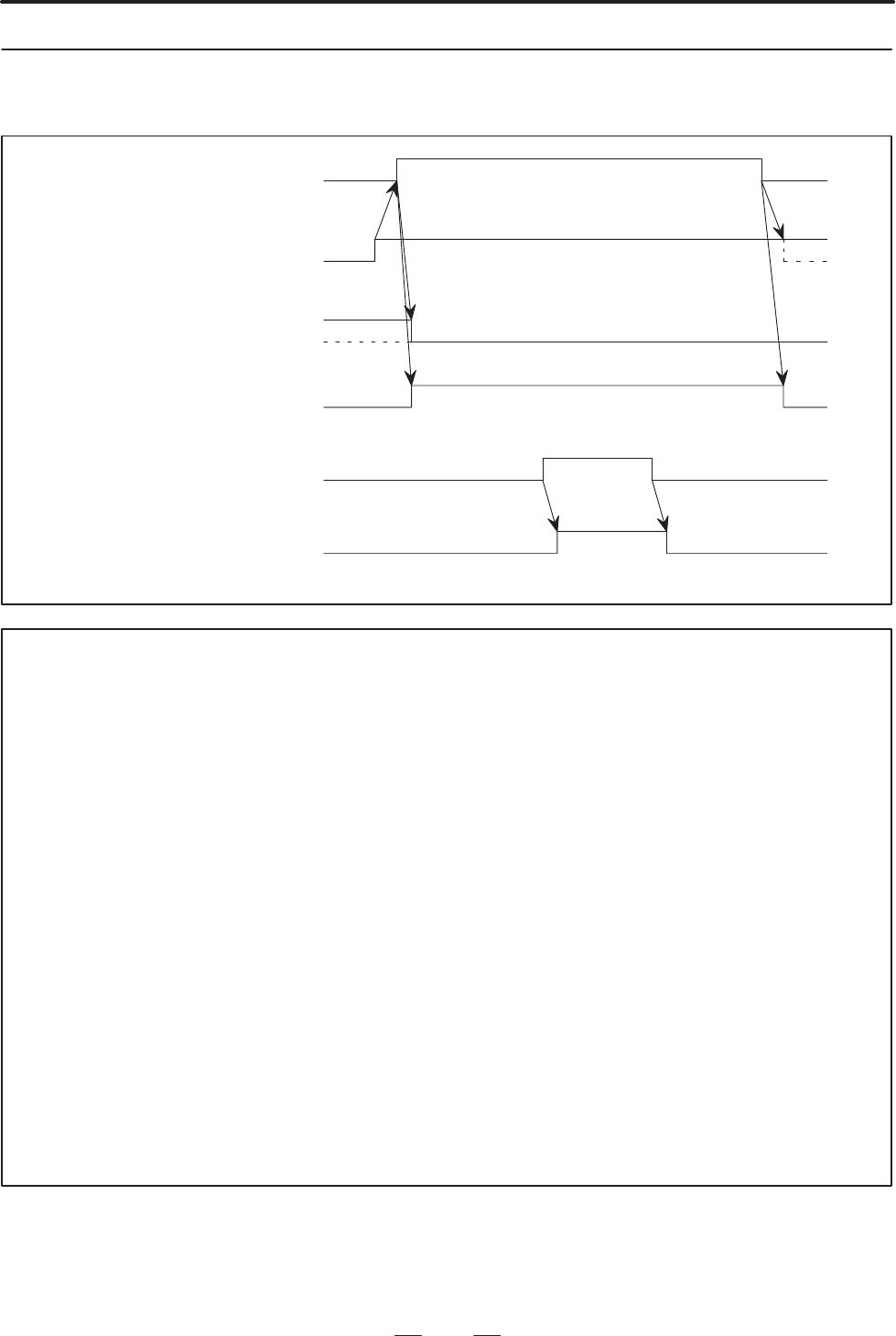

ON=1

Being clamped

ON=1

Cs contouring control mode command

(PMC³CNC) (

Note

Spindle forward rotation command

(PMC³CNC)

(SFRA)

Spindle speed command

(Sxxxx) (

Note

Cs contouring control mode state

(CNC³PMC) (

Note

Spindle clamp

(

Note

Speed integral control disable

command

(PMC³CNC)

(INTGA)

NOTE

1 For Series 16 :

Setting CON to 1 enters the Cs contouring control mode.

For series 15 :

Setting SCNTR to 1 enters the Cs contouring control mode.

For Series 0–TC :

Setting COFF to 0 enters the Cs contouring control mode.

For Series 0–MC :

Setting CON to 1 enters the Cs contouring control mode.

2 When specifying the Cs contouring control mode, reset the spindle speed command (S0

command) for safe operation.

3 For Series 16 :

Setting FSCSL to 1 enters the Cs contouring control mode.

For Series 15 :

Setting MCNTR to 1 enters the Cs contouring control mode.

For Series 0–C :

Setting FSCSL to 1 enters the Cs contouring control mode.

4 When the spindle is clamped after it is positioned to perform machining such as drilling in the

Cs contouring control mode, the clamp position of the spindle may deviate a little from a

specified position. If it deviates, the speed integral function works. The function attempts to

move the spindle to the specified position. As a result, excessive current may flow in the motor.

To prevent this, the speed integral function must be disabled while the spindle is being clamped.

11.3.5

Sample Sequence
