B–65162E/03

10. INTERFACE SIGNALS

377

If the back rotation command is transmitted, the spindle motor starts

deceleration and, because the arrival signal becomes 0 at under 40 ms,

it next detects the speed arrival signal has again become 1 via speed

zero and sets the end of the back command.

D This signal is used as the confirmation signal (FIN signal) for the

forward rotation (M03) and back rotation (M04) commands.

D Assume that the maximum output (10 V) of the load meter (LM) is

100%. When the output of the load meter reaches the parameter

settings (%), load detection signal is set to 1.

D Parameter settings for these signals are set independently.

D Using these signals, the PMC reduces the feedrate or stops the feed to

prevent the spindle from stopping when cutting overload is applied to

the spindle.

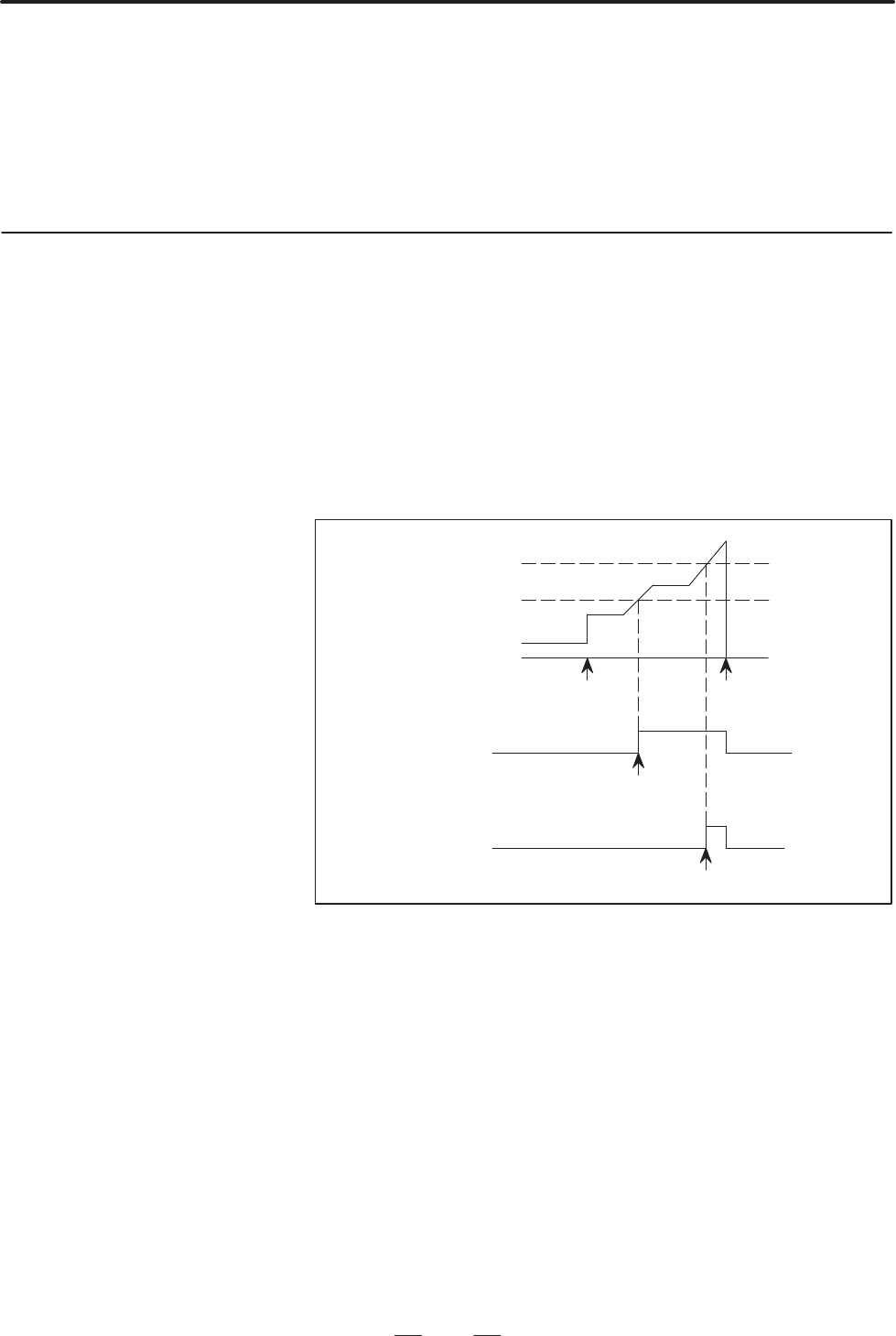

D The following example shows the case in which the spindle is

controlled with two load-detection levels set.

Feedrate is reduced here.

The spindle stops.Cutting

starts.

LDT2A threshold level

LDT1A threshold level

Output of the load meter

The feed motor stops here.

LDT1A

LDT2A

D When using only one load-detection level to stop the feed motor,

perform spindle control according to the specifications.

D After the speed command is changed, this signal is not output until 10

seconds elapse. (The delay is specified by parameter. (For FS–16, this

parameter is 4082))

10.2.13

Load Detection Signal

(LDT1A, LDT2A)
