Alpha Series AC Servo Amplifier Descriptions Page 343

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

323

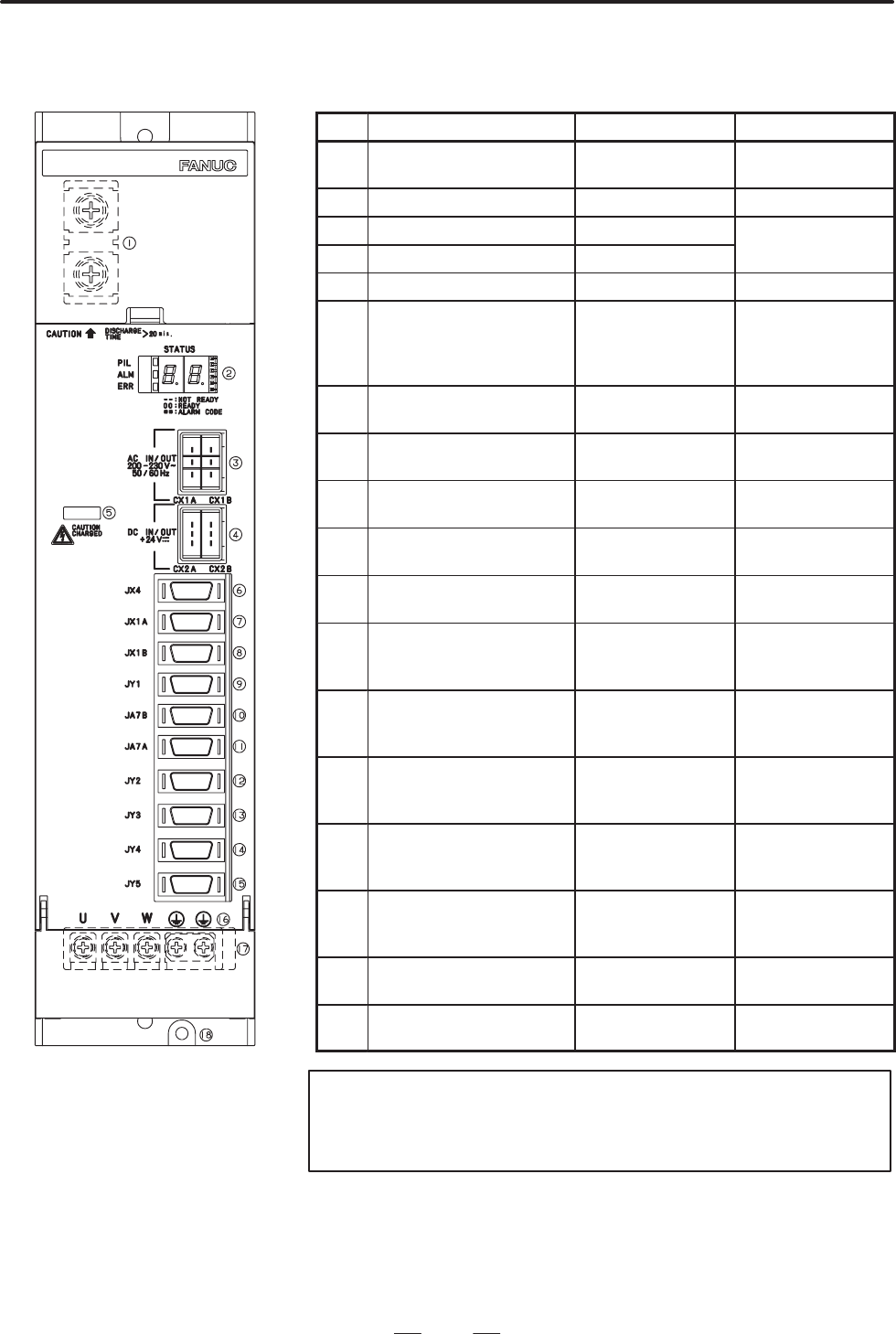

Table.9.3.3 (b) Names of connectors and terminal blocks

Name Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Status LED STATUS

3 200VAC I/O connector CX1A/CX1B

Both connectors

have same function

4 24 VDC connector CX2A/CX2B

ave same

unc

on.

5 DC link charge LED (Warning)

6 Connector for signal check,

pulse generator signal out-

put, and position coder sig-

nal output

JX4 Use an SPM check

board.

7 Output connector for inter-

face between modules

JX1A

8 Input connector for inter-

face between modules

JX1B

9 Connector for load meter

and speedometer

JY1

10 Input connector for electric

serial interface

JA7B

11 Output connector for elec-

tric serial interface

JA7A

12 Connector for pulse gener-

ator, built–in sensor, and

Cs axis sensor for motor

JY2

13 Connector for magnetic

sensor and external single

rotation signal

JY3

14 Connector for position cod-

er and high–resolution

position coder

JY4

15 Connector for Cs–axis sen-

sor for spindle and built–in

Cs–axis sensor

JY5 Only for TYPE II

16 Terminal names for termi-

nal block for motor power

line

17 Terminal block for motor

power line

Display the terminal

block TB2

18 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(b) SPM–5.5, SPM–11, SPM–11HV

(TYPE 1, 2, 4)
