12. DETECTORS FOR THE SPINDLE

B–65162E/03

548

NOTE

– Use the BZ sensor at temperatures not exceeding 80°C.

– The BZ sensor is a precision device. It must be handled with care. In particular, ensure that

no force is applied to the S section.

– The sensor is an electronic device. Provide dust and drip protection on the machine so that

the sensor is not exposed to chips, oil, water, or any other harmful substance.

– When installing a BZ sensor, press it against the machine–side socket and spigot joint ( A in

size). (The machine–side socket and spigot joint is 4.5 mm high.) The gap between the sensor

and detection ring is adjusted beforehand. However, an output signal may not satisfy the

specified value due to a socket and spigot joint error. Check the output signals when mounting

a sensor. If an output signal does not satisfy the specified value, adjust the gap. For information

about the output signal level for gap adjustment, refer to Part II of ”FANUC Built–in AC Spindle

Motor α Series Descriptions (B–65202EN).”

– To mount the BZ sensor, use screws of M4 x 20 mm and M4 x 25 mm.

– Secure the cable at appropriate locations so that, when the cable is pulled, no force is directly

applied to the BZ sensor.

– Make a shielded wire connection.

– To ensure ease of maintenance, install a sensor in a location where the sensor can be replaced

easily.

– The detection ring of a sensor can be exchanged with another sensor provided the sensors are

of the same drawing number.

– A sensor cannot be combined with a detection ring if the detection ring is designed for a drawing

number different from that of the sensor.

– A mating connector (accessory) is provided with the BZ sensor.

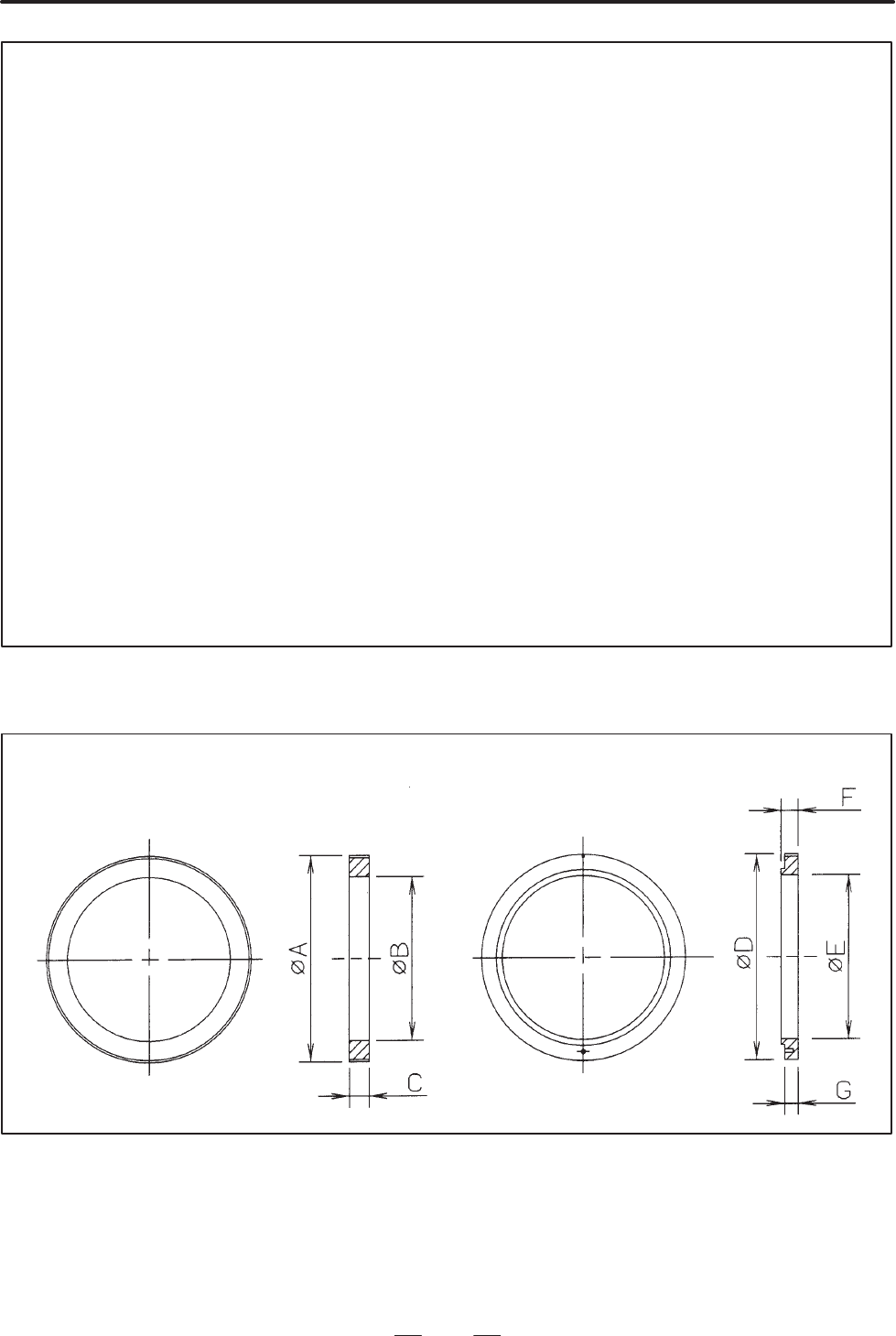

Detection ring A Detection ring B
