11. OPTION RELATED TO SPINDLE

B–65162E/03

530

D Install the switching unit under the same conditions as for a spindle

amplifier.

Conditions for installing the switching unit

- Ambient temperature:

0 to 55°C for the unit

0 to 45°C for the cabinet

- Ambient humidity: 90%RH or less, no condensation

- Vibration : 0.5 G or less during operation

- Ambient air : Corrosive, conductive mist or water drops must not

come into direct contact with electronic circuits.

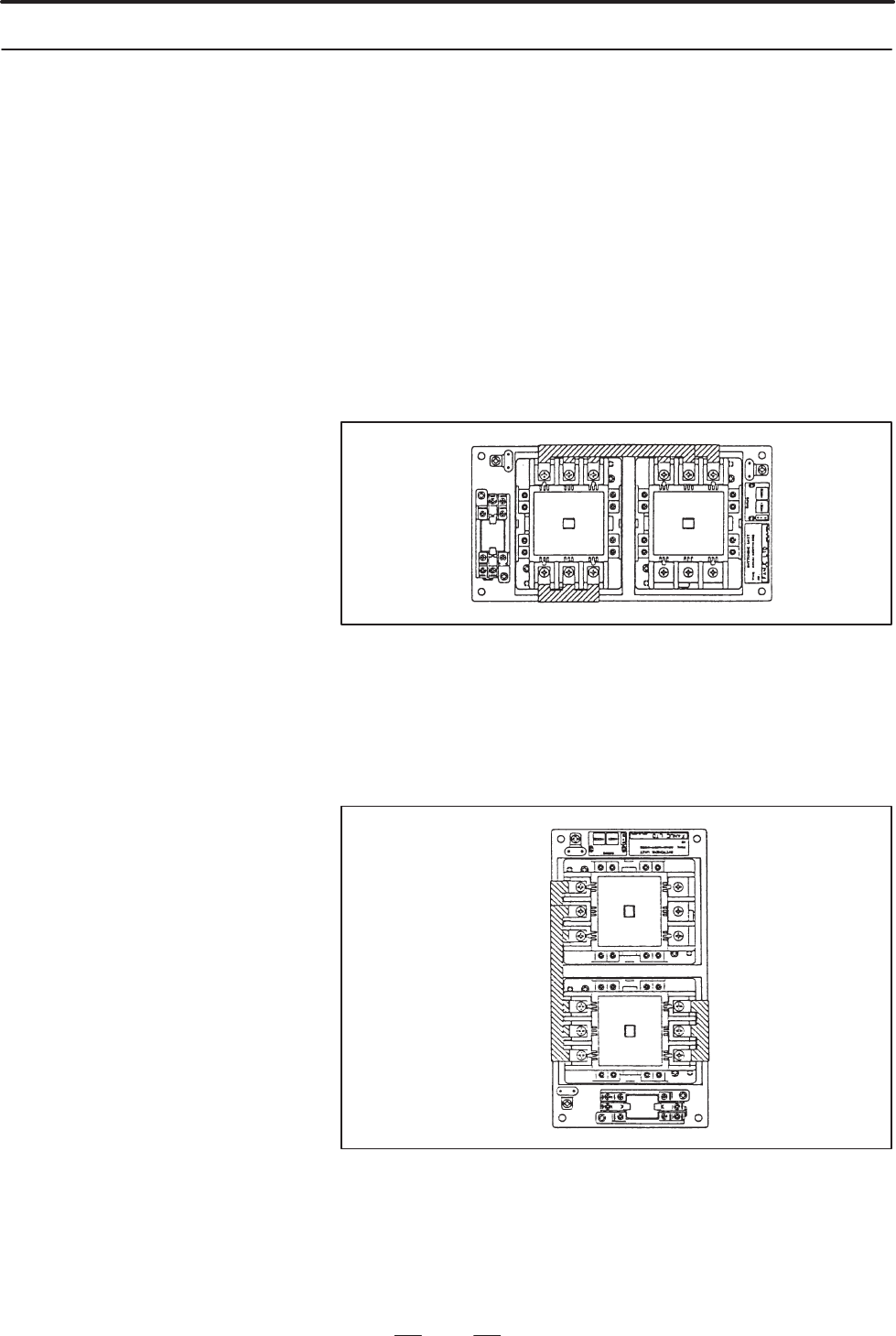

D Install the switching unit according to Fig. 11.7.6 (a). An inclination

of 15 degrees is permitted in the right, left, front, and back.

Fig.11.7.6 (a) Standard Installation (for A06B-6078-K035)

D It may be necessary to install the unit on its side as shown in Fig. 11.7.6

(b), due to wiring or space limitations. The characteristics of the

electromagnetic contactor will not be affected, however, the

mechanical life of the unit and the number of times the contactor can

be opened and closed will be decreased.

Fig.11.7.6 (b) Non-standard Installation (for A06B-6078-K035)

11.7.6

Caution in Use
