Alpha Series AC Servo Amplifier Descriptions Page 423

Descriptions

Page of 699

/ 699

B–65162E/03

10. INTERFACE SIGNALS

403

D SDTA = 1 occurs when the frequency is lower than the one which is

set by parameter.

D This signal is used to detect that the output frequency has become

lower than a certain frequency set such as clutch selectable speed or

gear selectable speed.

D The frequency detecting level can be set by parameter.

D For this signal, SDTA = 1 occurs when the absolute value of the output

frequency is reduced to be lower than the preset detection level,

irrespective of rotation commands (SFRA, SRVA).

SDTA

Frequency detection level

0min

–1

Output frequency

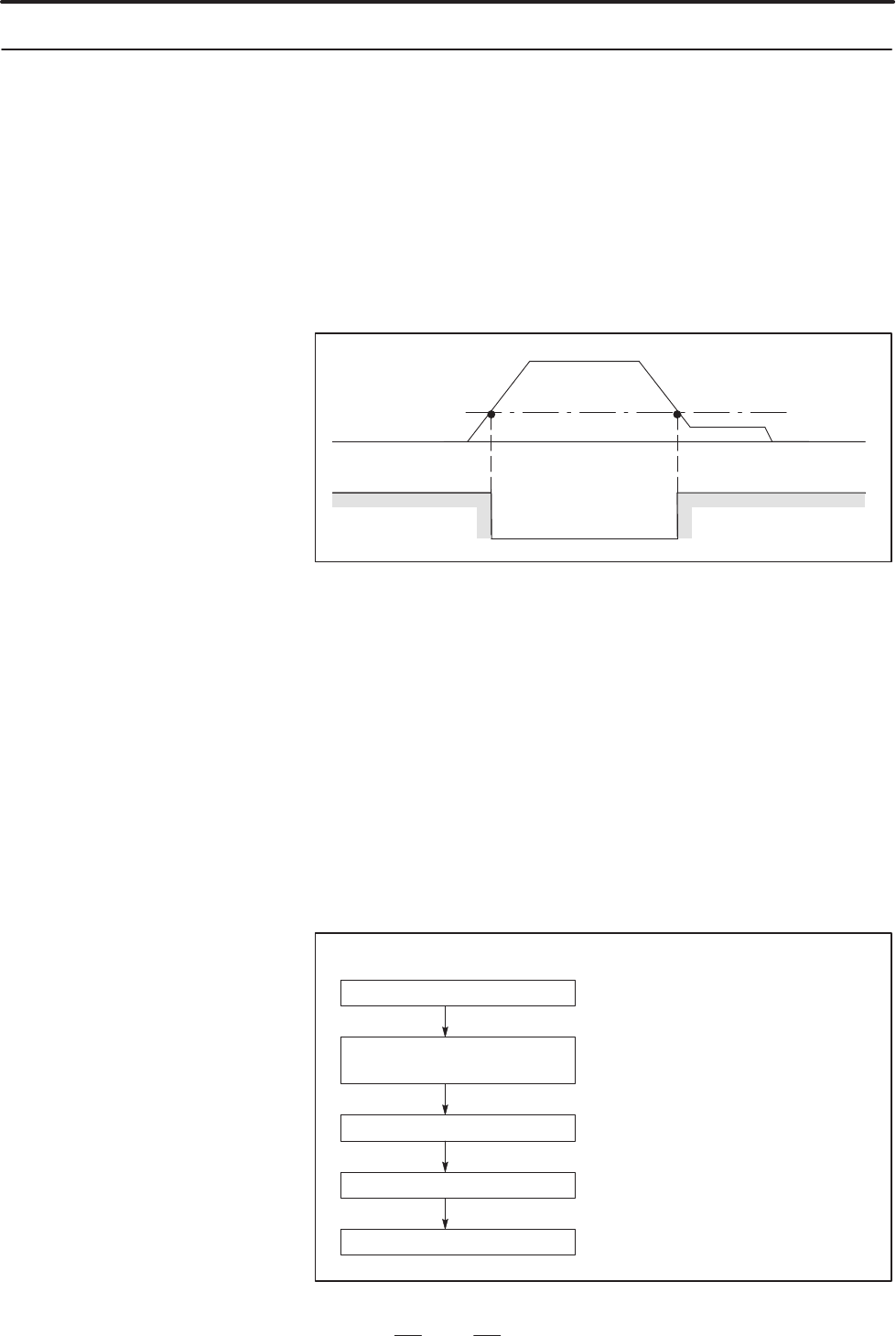

Fig.10.4.11 (a) Speed Detection Signal

The gear shift in the CNC machine tool is one of the sequence controls.

The electric circuit signal in the sequence is used to move the spindle gear,

which is an important component of the machine. It is then necessary to

check that the spindle motor speed is in low speed to switch the gear

safely.

The following is an example of sequence at gear shift, when the frequency

detection signal (gear selectable signal) was used. This example can be

referred to when designing the magnetics sequencer.

D An example of gear shift sequence using frequency detection

signal

Frequency detection signal=1

(or frequency stopped signal=1)

(Sequence)

(Check signal)

Low speed revolution com-

mand of the spindle motor

Speed check

Shifter moves

End of gear shift

Gear shift command

10.4.11

Frequency Detecting

Signal (SDTA)

Reference

D Sequence of the gear

shift
