11. OPTION RELATED TO SPINDLE

B–65162E/03

492

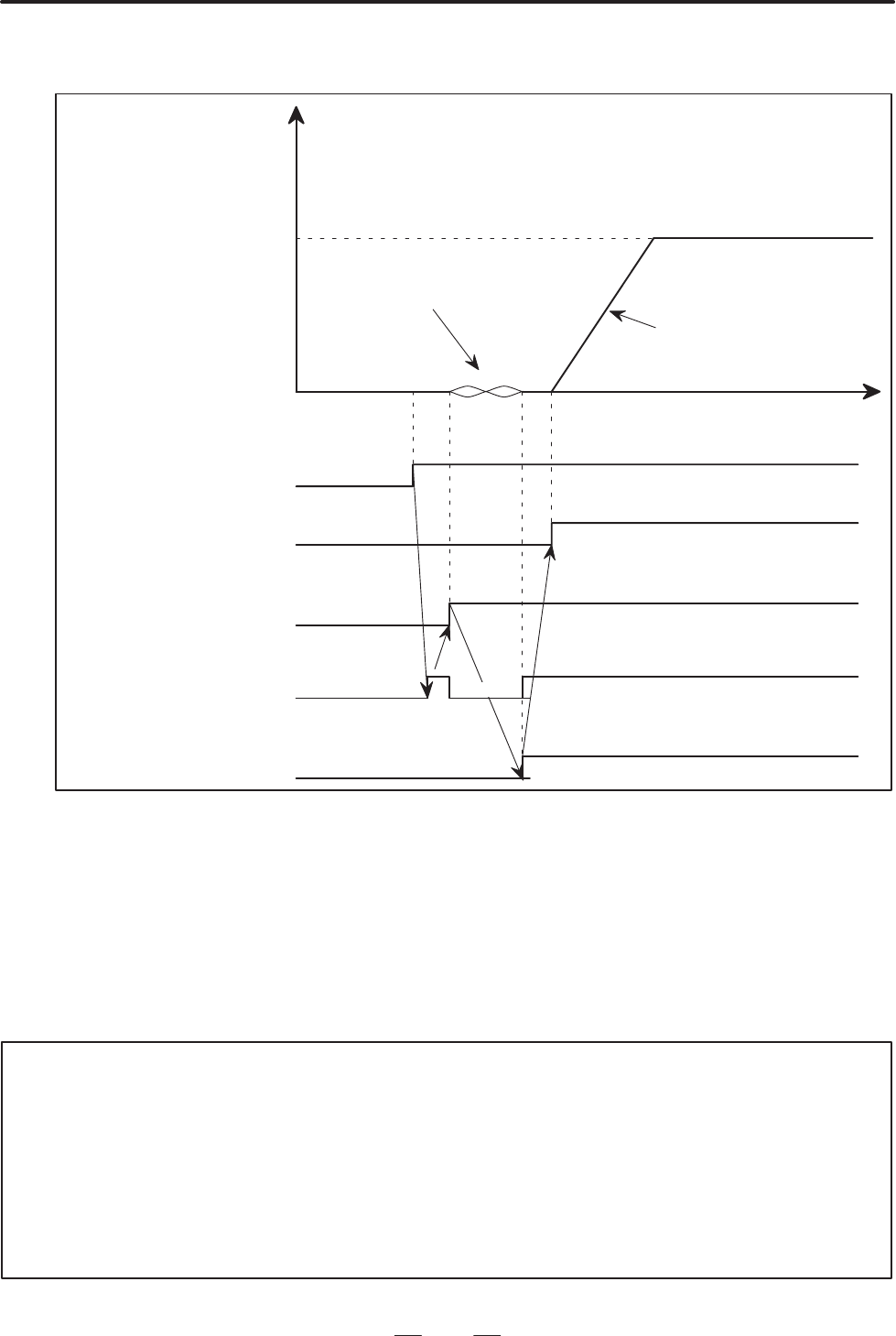

D While spindles 1 and 2 are stopped, their phases are synchronized and

their speeds are increased in synchronization.





Signal indicating that synchronization

control of spindle speed is completed

FSPSY

Signal for spindle phase

synchronization control SPPHS

Signal for specifying spindle

synchronization speed

R12I-R01I, RI12-00

Signal for synchronization control

SPSYC

Time

Spindles 1 and 2

Spindle speed

Phase synchronization

Acceleration/deceleration

in synchronization

Synchronization speed

Signal indicating that the synchronous

control of spindle phase is completed

FSPPH









(Note 1)

(Note 2)

 Set the signal for specifying the spindle synchronization speed to 0 and

the signal for spindle synchronization control to 1.

 Wait until the signal indicating that synchronization control of spindle

speed is completed is set to 1.

 Set the signal for spindle phase synchronization control to 1.

 Wait until the signal indicating that synchronization control of spindle

phase is completed is set to 1.

 Enter the signal for specifying the spindle synchronization speed.

NOTE

1 When the spindle synchronization mode is switched (after power is supplied), each spindle

automatically rotates several turns to detect one–rotation signals even if the program does not

request so. If this operation causes a problem (for example, because two spindles are

connected mechanically), or spindle phase synchronization is not to be performed, the

operation can be disabled using parameters (No.4006#3 (FS16)).

2 The signal indicating that synchronization control of spindle speed is completed is set to 0 when

the signal for spindle phase synchronization control is entered. It is changed to 1 when phase

synchronization is completed.
