9. CONNECTION

B–65162E/03

254

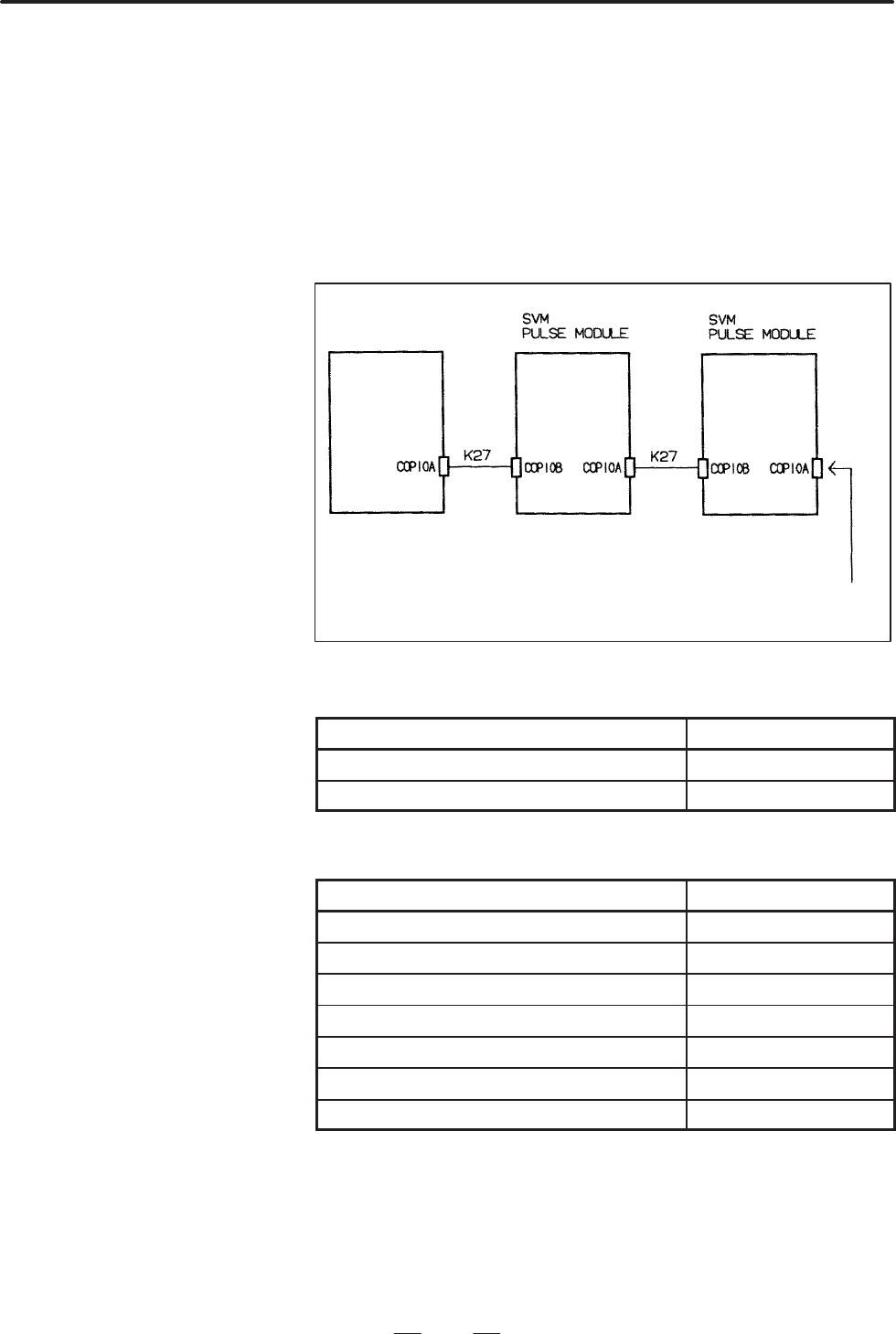

(12) Detailed description of the connection of cable K27

Cable K27 is an optical fiber cable used in the FSSB interface.

The cable is run from connector COP10A in the CNC, SVM, or pulse

module to connector COP10B in the SVM or pulse module.

Connector COP10A of a module at the end of the cable chain must be

covered with the cap supplied with the module.

Refer to the applicable CNC connection manual for detailed

specifications of the optical fiber cable.

CNC unit

Protective cap

(1) Connection between two SVM units or between the SVM and pulse

module (optical cable extension)

Specification Cable length

A66L–6001–0023#L150R0 15cm

A66L–6001–0023#L300R0 30cm

(2) Connection between the CNC and SVM or between the CNC and

pulse module (optical cable subscriber line)

Specification Cable length

A66L–6001–0026#L1R003 1m

A66L–6001–0026#L5R003 5m

A66L–6001–0026#L7R003 7m

A66L–6001–0026#L10R003 10m

A66L–6001–0026#L20R003 20m

A66L–6001–0026#L30R003 30m

A66L–6001–0026#L50R003 50m
