Alpha Series AC Servo Amplifier Descriptions Page 215

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

195

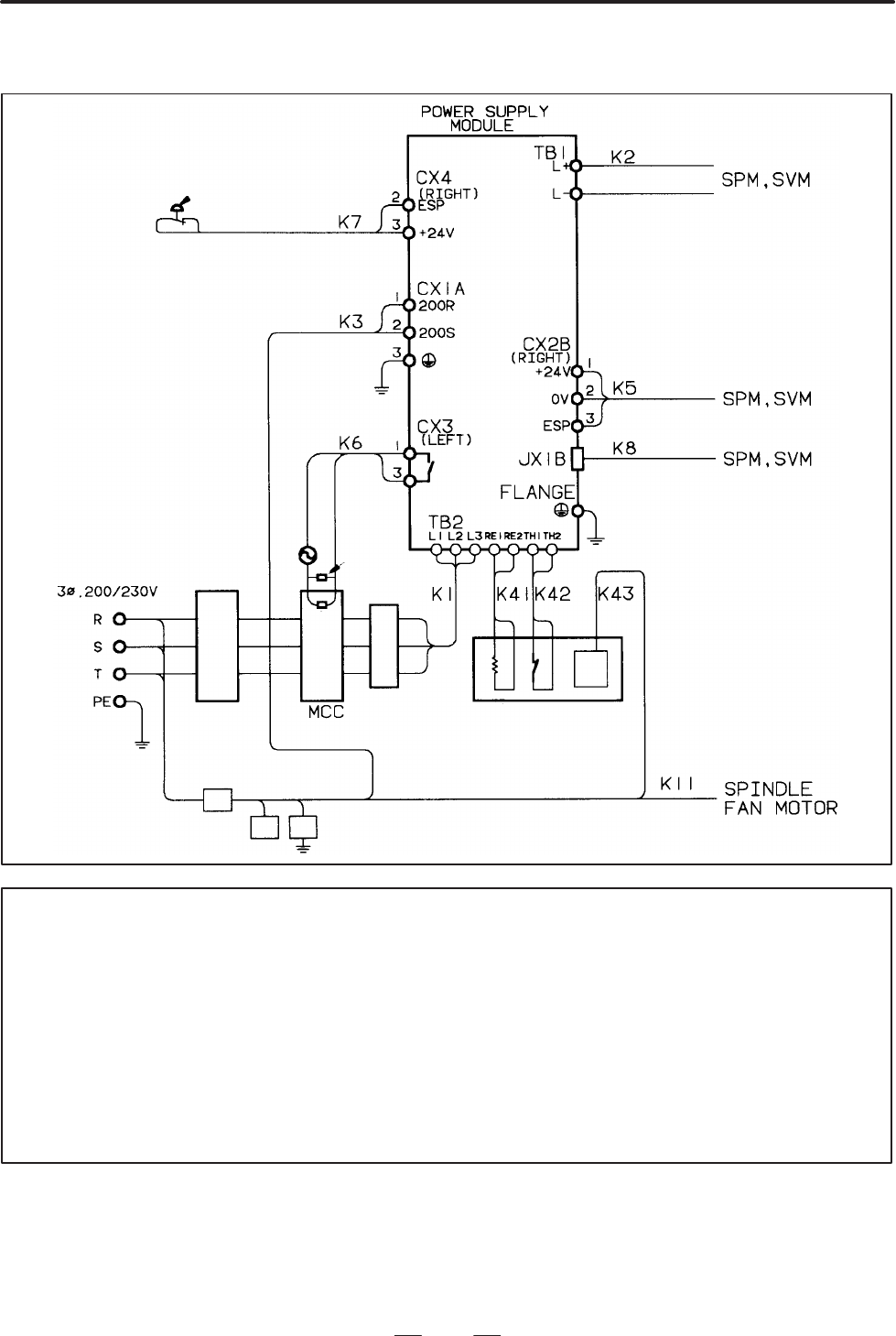

Power supply module (PSMR)

Emergency stop contact

Control

power

supply

Circuit

breaker 2

Coil

Main pow-

er supply

Circuit

breaker

AC reactor

Cabinet

Lightning

surge protector

Spark killer

Input

Thermostat Fan motor

Regenerative

discharge unit

NOTE

1 Always install the circuit breakers, magnetic contactor, and AC reactor.

2 To protect the equipment from lightning surge voltages, install a lightning surge protector across

each pair of power lines and across each power line and the grounding line at the power inlet

of the power magnetics cabinet. See Appendix A for details.

3 Always connect the control power supply cable to the CX1A. If it is connected to the CX1B,

fuses inside the unit may blow.

4 See Section 5.2.3 for the type of the cable to be used for making a connection to a frame

ground.

5 If the PSMR is combined with the SPM–11 (with the fan adapter), the way cables K3 and K4

are connected will vary from that shown in this diagram. See the diagram on the next page.
