Alpha Series AC Servo Amplifier Descriptions Page 341

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

321

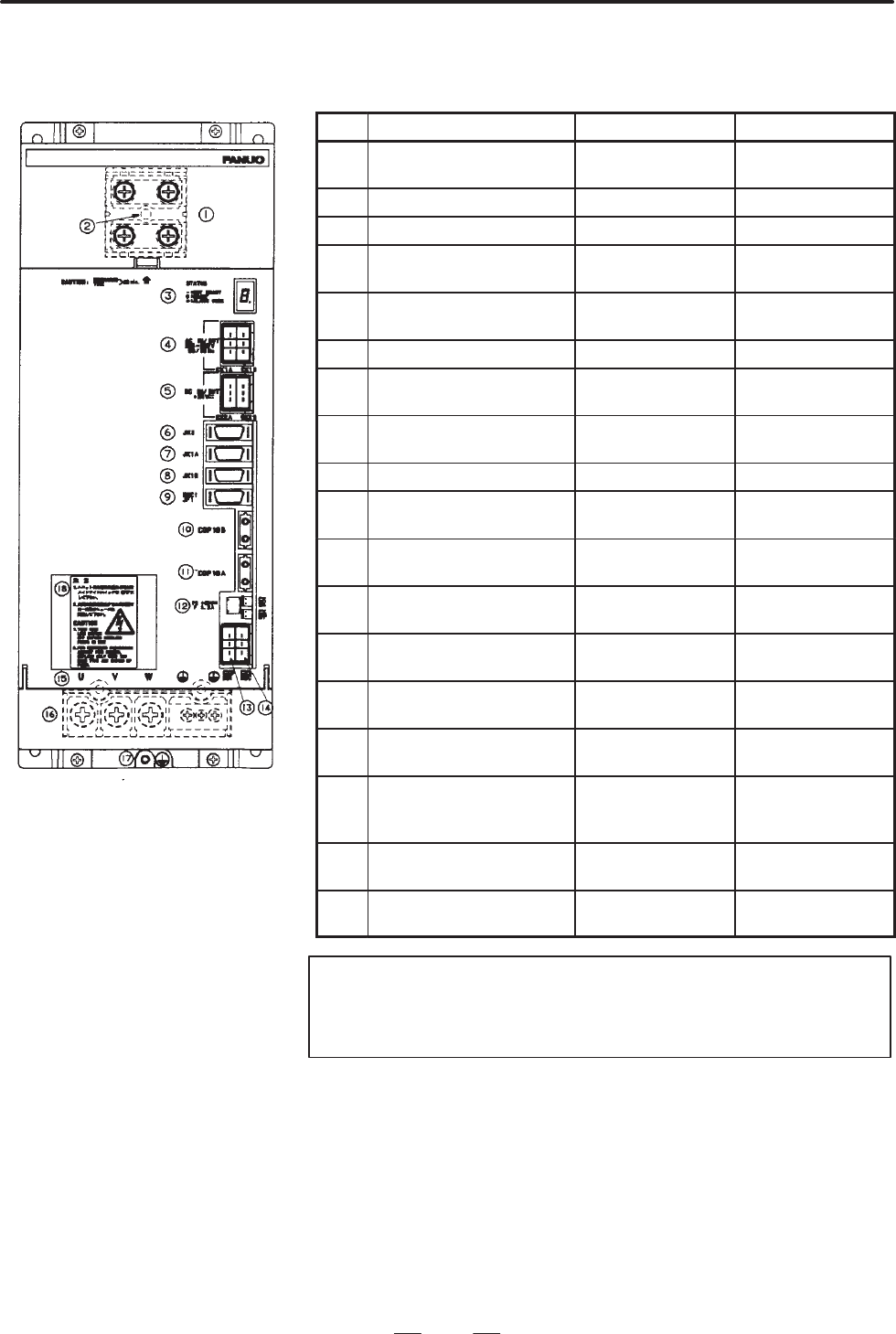

Table.9.3.2 (o) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 DC link charge LED (Warning)

3 Status LED STATUS

4 200 VAC power input/out-

put connector

CX1A/CX1B

5 24 VDC power input/output

connector

CX2A/CX2B Both connectors

have same function.

6 Signal check connector JX5

7 Input connector for inter-

face between modules

JX1A

8 Output connector for inter-

face between modules

JX1B

9 Pulse coder connector JF1

10 FSSB optical input connec-

tor

COP10B

11 FSSB optical output con-

nector

COP10A

12 Power connector for ABS

pulse coder battery

CX5X

CX5Y

13 Dynamic brake interface

connector

CX8

14 Dynamic brake drive coil

connector

CX9

15 Terminal block for motor

power line

16 Terminal names for termi-

nal block for motor power

line

Display the terminal

block TB2

17 Tapped hole for grounding

the flange

18 Battery for ABS pulse cod-

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(g) SVM1–240, SVM1–360
