B–65162E/03

11. OPTION RELATED TO SPINDLE

493

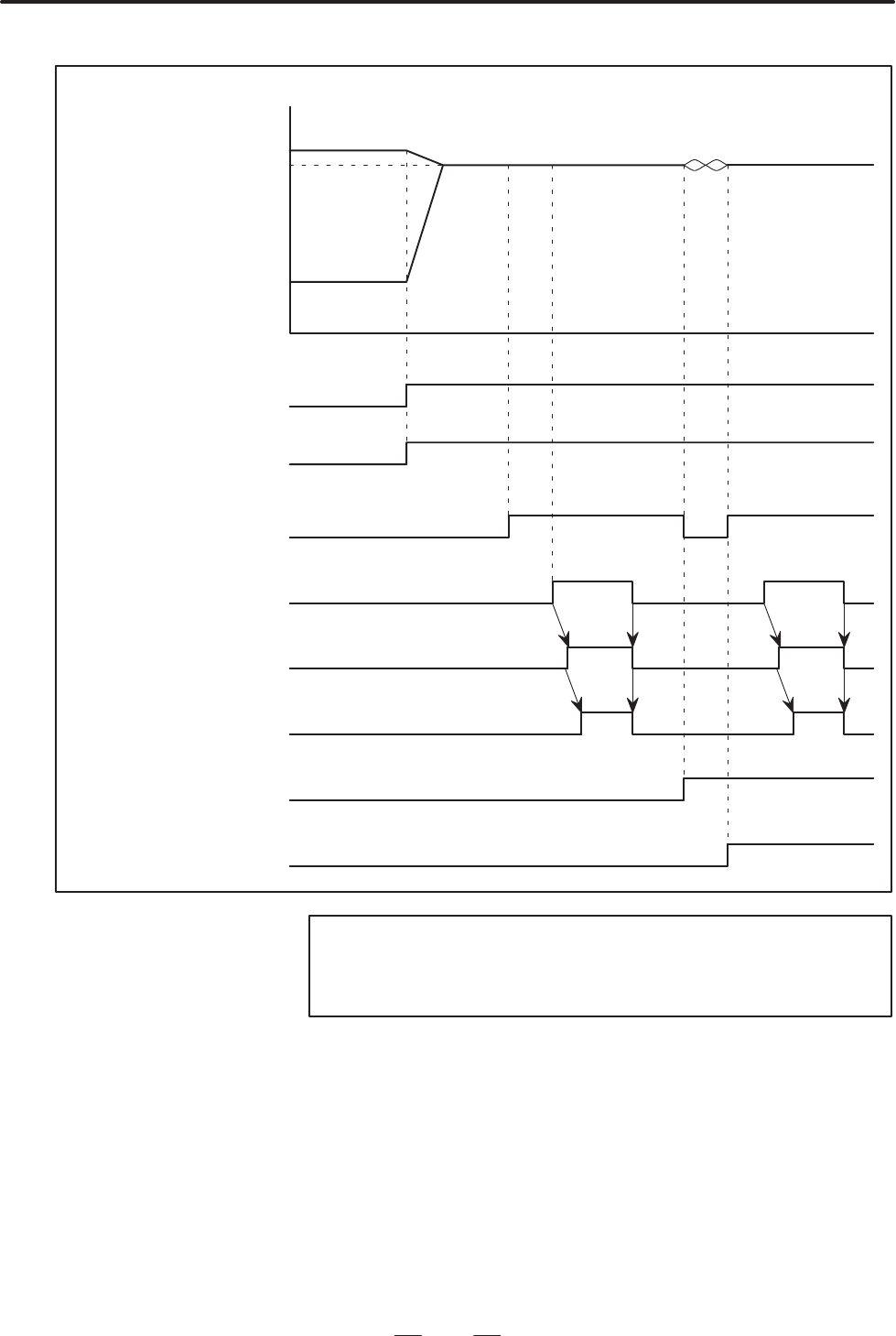

D Using the signal for integral speed control

Phase synchronization

Spindle 2

Signal indicating that synchronization control of spindle phase is completed

FSPPH

Signal for spindle phase synchronization control

SPPHS

Signal indicating that synchronization control

of spindle speed is completed

FSPSY

Signal for the chuck close command

Signal for specifying spindle

synchronization speed

Signal for spindle synchronization

control SPSYC

(

Note

)

Spindle speed

Synchronization speed

Signal for integral speed control

INTCA

Spindle 1

Signal indicating that the chuck has been closed

(

Note

)

NOTE

Set the signal for integral speed control to 1 while a

workpiece is being held with the two spindles.
