Alpha Series AC Servo Amplifier Descriptions Page 254

Descriptions

Page of 699

/ 699

9. CONNECTION

B–65162E/03

234

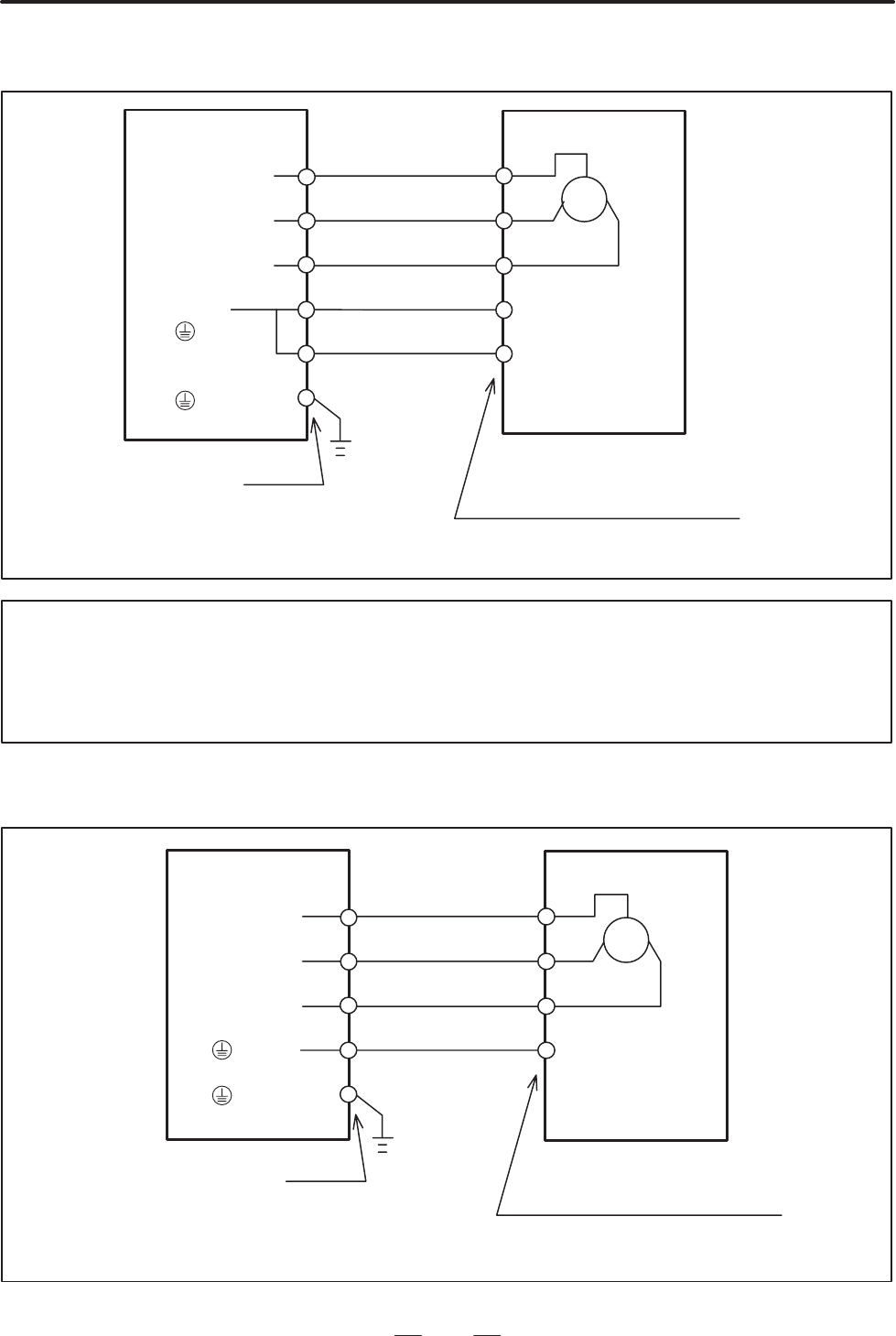

(a) Models α1/3000, α2/2000, α2/3000, αM2/3000, and αM2.5/3000

Connector used at the cable end:

Refer to FANUC AC SERVO MOTOR

α Series Descriptions B–65142E.

Motor

TB2 ( )

SVM

TB2(UL,UM,UN)

G (Motor body)

TB2(VL,VM,VN)

TB2(WL,WM,WN)

TB2 ( )

Screw M4

(Note)

G (Connector shell)

Example cable: 0.75 mm

four–conductor heavy–duty power cable

NOTE

To satisfy the CE marking requirements, it is necessary to ground the connector shell at the

cable end. In this case, the specification of the connector will be different. Refer to

”Requirements for Compliance with the IEC34 Standards” and ”Connectors” in the FANUC AC

SERVO MOTOR α Series Descriptions B–65142E for details.

(b) Models α3/3000, α6/2000, α6/3000, αC3/2000, αC6/2000, αM6/3000, αM9/3000, αL6/3000, and αL9/3000

Motor

SVM

TB2(UL,UM,UN)

TB2(VL,VM,VN)

TB2(WL,WM,WN)

TB2 ( )

G (Motor body)

Screw M4

Connector used on the cable end:

Refer to FANUC AC SERVO MOTOR

α Series Descriptions B–65142E.

Example cable: 2.0 mm

four–conductor heavy–duty power cable
