Alpha Series AC Servo Amplifier Descriptions Page 389

Descriptions

Page of 699

/ 699

B–65162E/03

10. INTERFACE SIGNALS

369

Orientation command

CRCMA

Pulling off

Tool

move

OFF

Orientation complete signal

ORARA

Spindle unclamp

Tool change operation

Excitation interception

Tool catch

Detachment

Attach-

ment of

new tool

MRDYA

Machine ready signal

OFF

D When the following four conditions hold, the spindle motor starts a

normal rotation corresponding to the speed command (positive value).

- Emergency stop signal

*ESPA is 1

- Machine ready signal MRDYA is 1

- Normal rotation command signal SFRA is 1

- Contact signal ESP is connected to 24 V (at CX4 of the PSM)

D While SFRA = 1, the spindle motor rotates in an counterclockwise

direction (CCW) viewed from the shaft side according to the

commanded speed (positive value).

D If SFRA = 0 occurs, the spindle motor stops by the regenerative

braking. After stopping, it cuts the power supply to the spindle motor

by intercepting the transistor excitation signal.

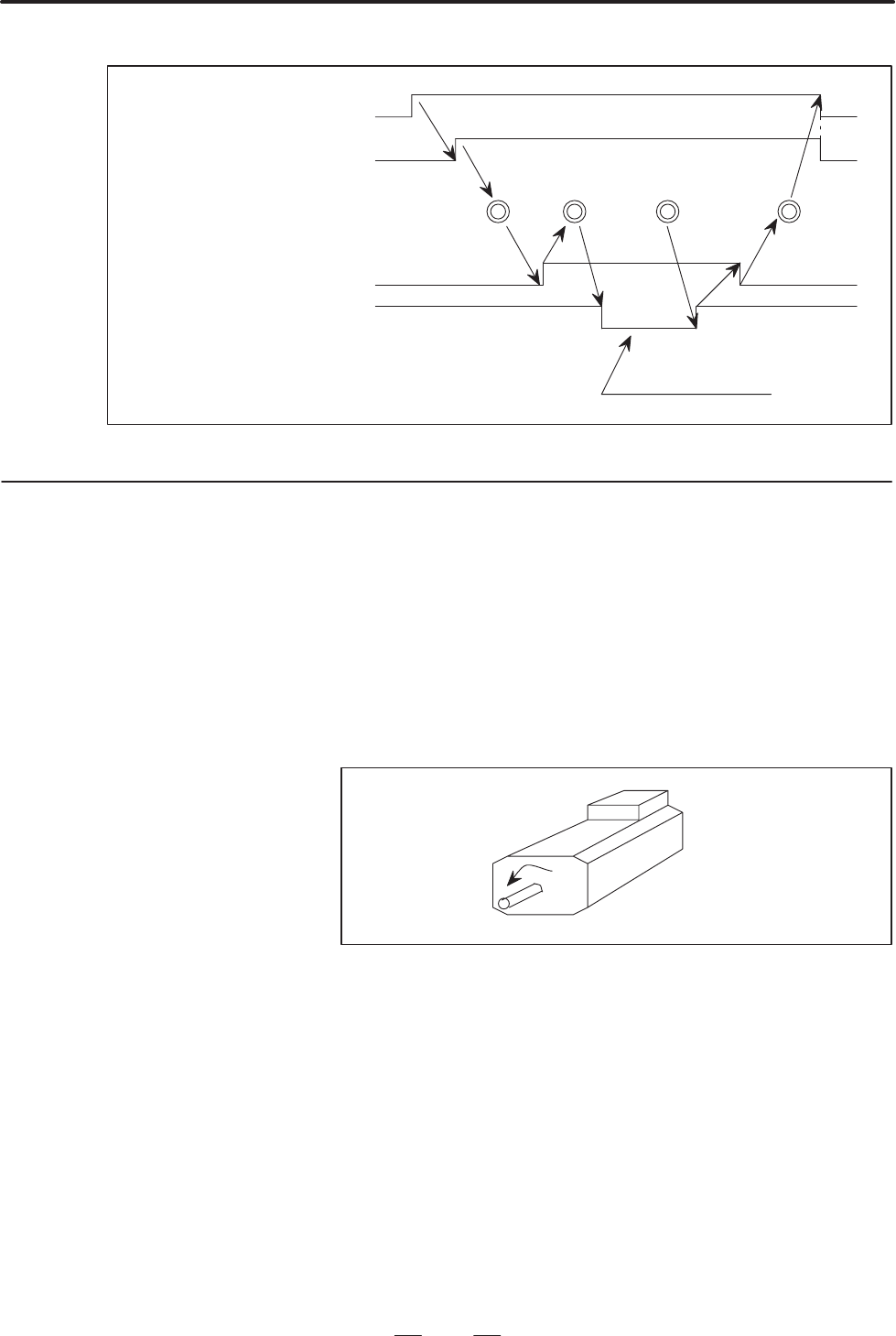

Timing chart

10.2.5

Normal Rotation

Command Signal

(SFRA)
