B–65162E/03

9.CONNECTION

309

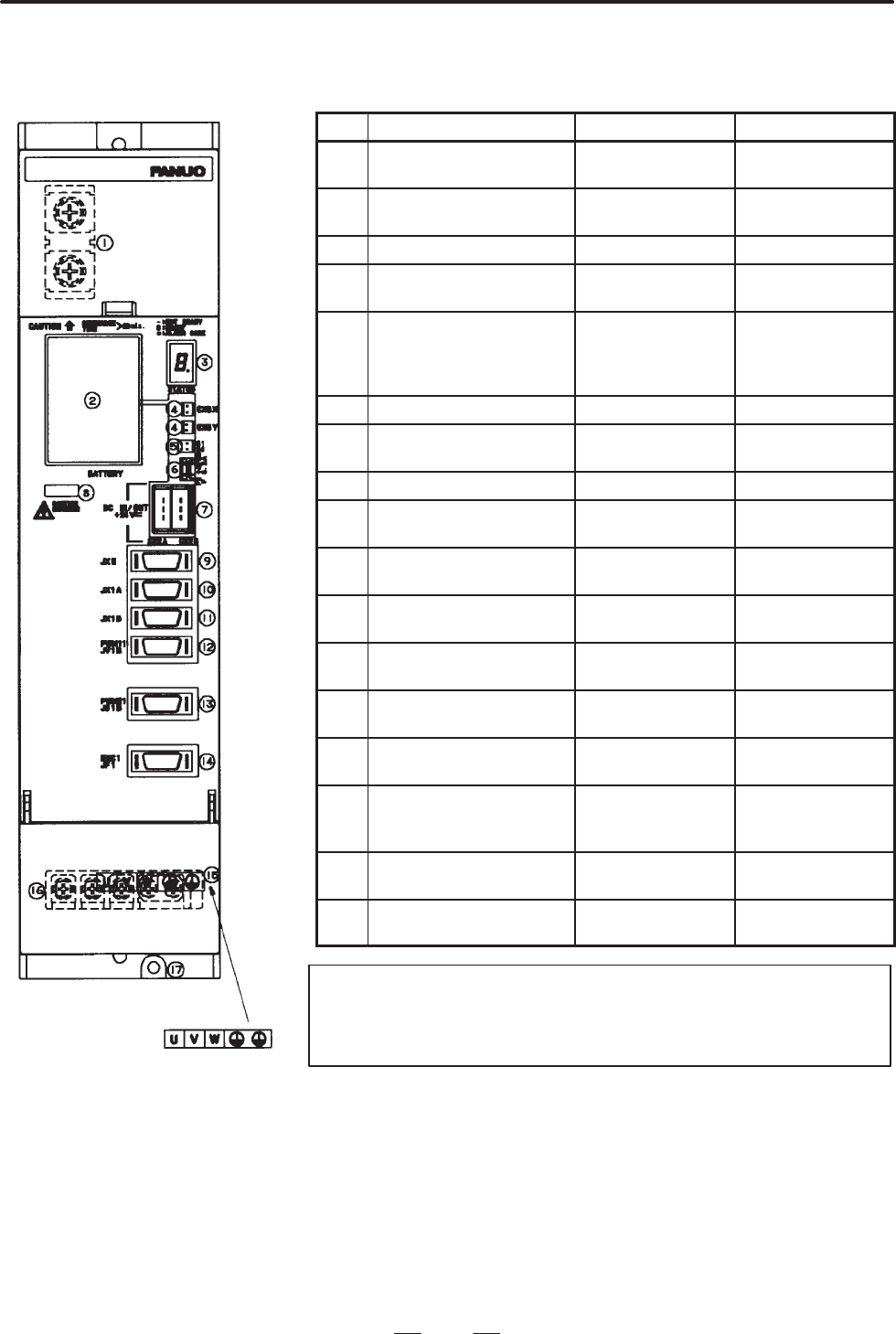

Table.9.3.2 (c) Connector and Terminal Board Names

Names Display Remarks

1 DC link terminal block Display the terminal

block TB2

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X

5 Interface switching con-

nector

S1/S2 Type–A interface:

Type–B interface:

6 Fuse for 24V power F2 3.2A, 48VDC

7 24V power I/O connector CX2A/CX2B Both connectors

have same function.

8 DC link charge LED (Warning)

9 Signal check connector JX5 Use an SVM check

board.

10 Input connector for inter-

face between modules

JX1A

11 Output connector for inter-

face between modules

JX1B

12 NC interface connector for

type–A interface

PWM11/JV1B FS16, FS18, FS15,

FS0, etc.

13 NC interface connector for

type–B interface

PWM21/JS1B FS20, FS21–G, etc.

14 Pulse coder connector ENC1/JF1 Only for type–B in-

terface

15 Terminal names for termi-

nal block for motor power

line

16 Terminal block for motor

power line

Display the terminal

block TB2

17 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

SVM1–40HV, SVM1–60HV
