10. INTERFACE SIGNALS

B–65162E/03

370

D When the following four conditions hold, the spindle motor starts a

reverse rotation corresponding to the speed command (positive value).

- Emergency stop signal *ESPA is 1

- Machine ready signal MRDYA is 1

- Reverse rotation command signal SRVA is 1

- Contact signal ESP is connected to 24 V (at CX4 of the PSM)

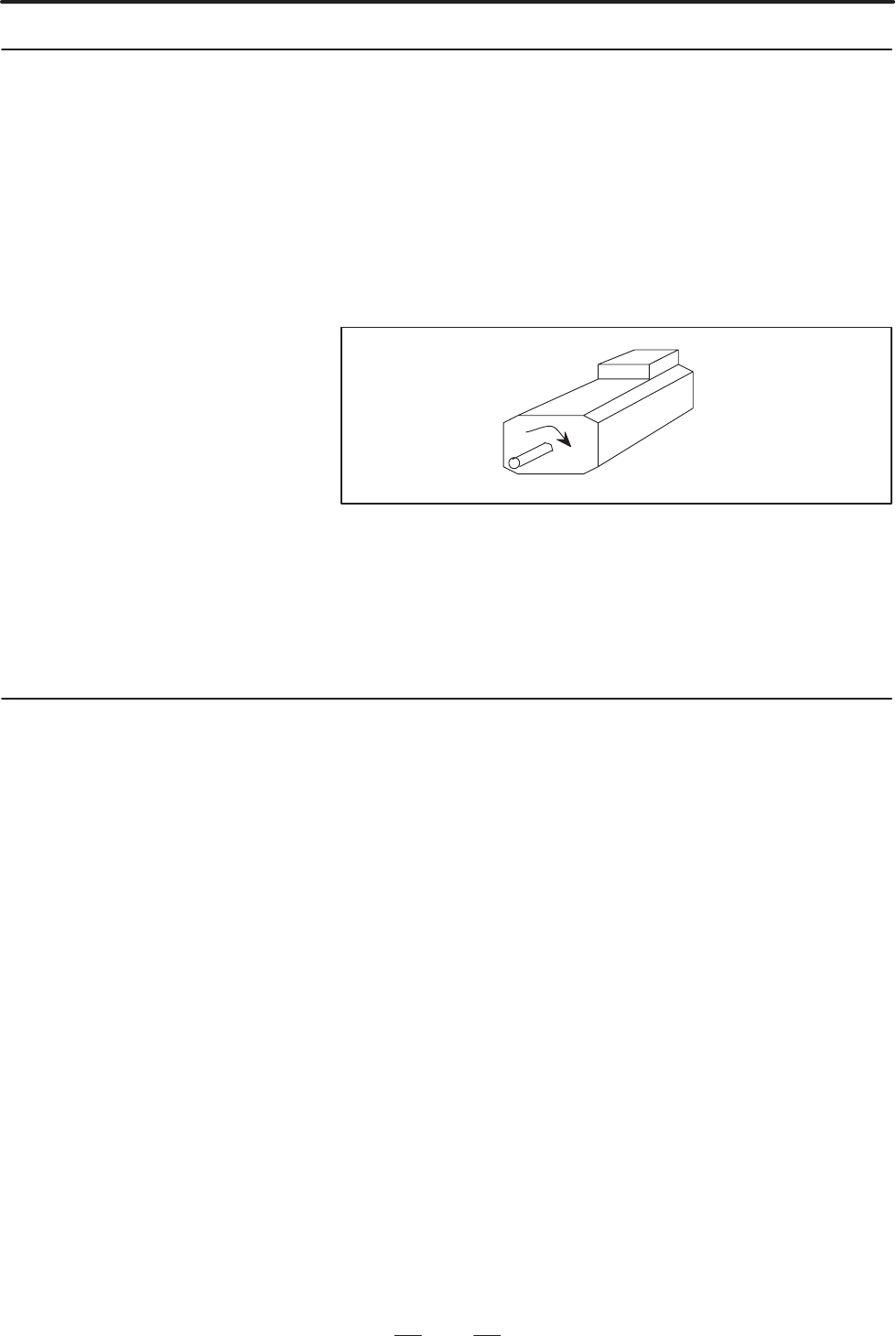

D While SRVA=1, the spindle motor rotats in a clockwise direction

(CW) looked at from the shaft side according to the speed command

(Positive value).

D If SFRA = 0 occurs, the spindle motor stops by the regenerative

braking. After stopping, it cuts the power supply to the spindle motor

by intercepting the transistor excitation signal.

D When the Normal rotation command signal (SFRA) and the reverse

rotation command signal (SRVA) are simultaneiusly ON, the spindle

motor stops.

D The torque restriction (torque limit) is used in order to rotate the

spindle motor to temporarily reduce the spindle motor output torque

at such times as machine type spindle orientation.

D Set the rotation speed at orientation and the output torque at orientation

of each machine type at the machine manufacture in order to lessen

shocks even when hitting the machine stopper.

D It is possible to adjust the output torque at orientation by parameter.

D If the torque limiting command is 1, the torque limit state occurs.

Even if commanded during motor rotation it will be immediately

enabled. If the torque limit state occurs, the torque limiting signal

(TLMA) is immediately transmitted to the outside.

D At the time of performing machine type orientation at the machining

center ATC, consider the following points when designing the

magnetics cabinet sequence such that damage does not occur to the

machine stopper.

- The output torque at orientation should not be excessive.

- The rotation speed at orientation should not be excessive. For

example, when the rotation speed is excessive at the speed

detection signal, the interlock should be set such that the stopper

does not emerge.

- When the torque limit is released, the stopper should be securely

stored.

10.2.6

Reverse Rotation

Command Signal

(SRVA)

10.2.7

Torque Limiting

Command Signal

(TLMLA, TLMHA)
