9. CONNECTION

B–65162E/03

328

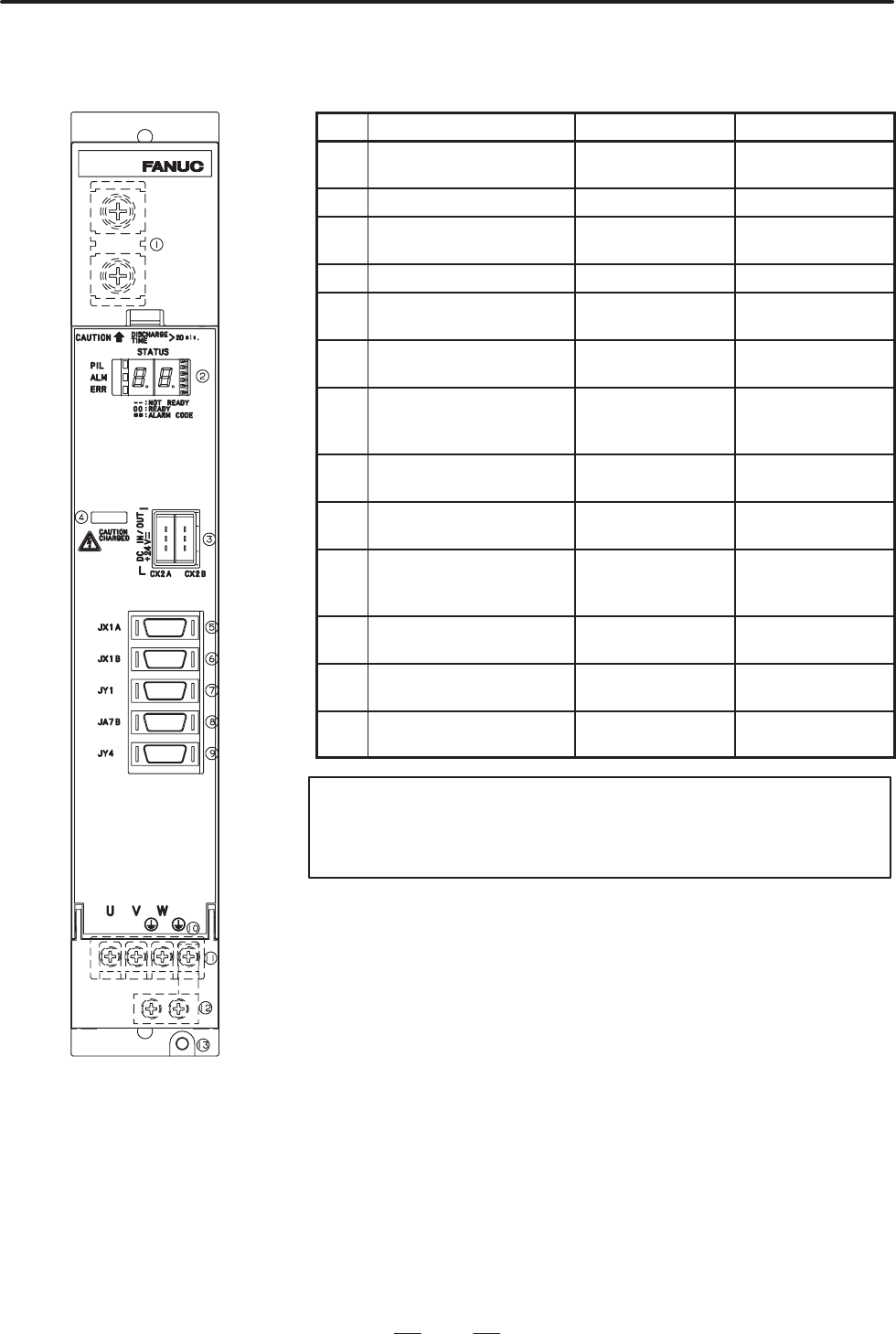

Table.9.3.3 (g) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Status LED STATUS

3 24VDC I/O connector CX2A/CX2B Both connectors

have same function

4 DC link charge LED (Warning)

5 Output connector for inter-

face between modules

JX1A

6 Input connector for inter-

face between modules

JX1B

7 Frequency meter analog

override connector for mo-

tor thermostat connection

JY1

8 Input connector for electric

serial interface

JA7B

9 Connector for position cod-

JY4

10 Terminal names for termi-

nal block for motor power

line

11 Terminal block for motor

power line

Display the terminal

block TB2

12 Earth plate Attatched to amplifi-

13 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(g) SPMC–2.2
