1713
Distance Le from the starting point in inner corner override
[Data type] 2-word
[Unit of data]
Increment system IS-A IS-B IS-C Unit
Millimeter input 1 0.1 0.01 mm
Inch input 0.1 0.01 0.001 inch
[Valid data range] 0 to 3999
Set distance Le from the starting point in an inner comer for corner
override.
1714
Distance Ls up to the ending point in inner corner override
[Data type] 2-word
[Unit of data]
Increment system IS-A IS-B IS-C Unit
Millimeter input 1 0.1 0.01 mm
Inch input 0.1 0.01 0.001 inch
[Valid data range] 0 to 3999
Set distance Ls up to the end point in an inner corner for corner
override.
If θ ≤ θp, the inside of a comer is recognized. (θp is set in parameter
1711.)
When an inner corner is recognized, the feedrate is overridden in the
range of Le in the block immediately before the intersection of the
corner and Ls in the next block following the intersection.
Ls and Le are each a straight line connecting the intersection of the
corner and a given point on the path of the cutter's center.
Ls and Le are set in parameters 1713 and 1714.
A
n override is applied from point a to b.
Programmed
path
Cutter center path
Ls
Le
a
b
θ

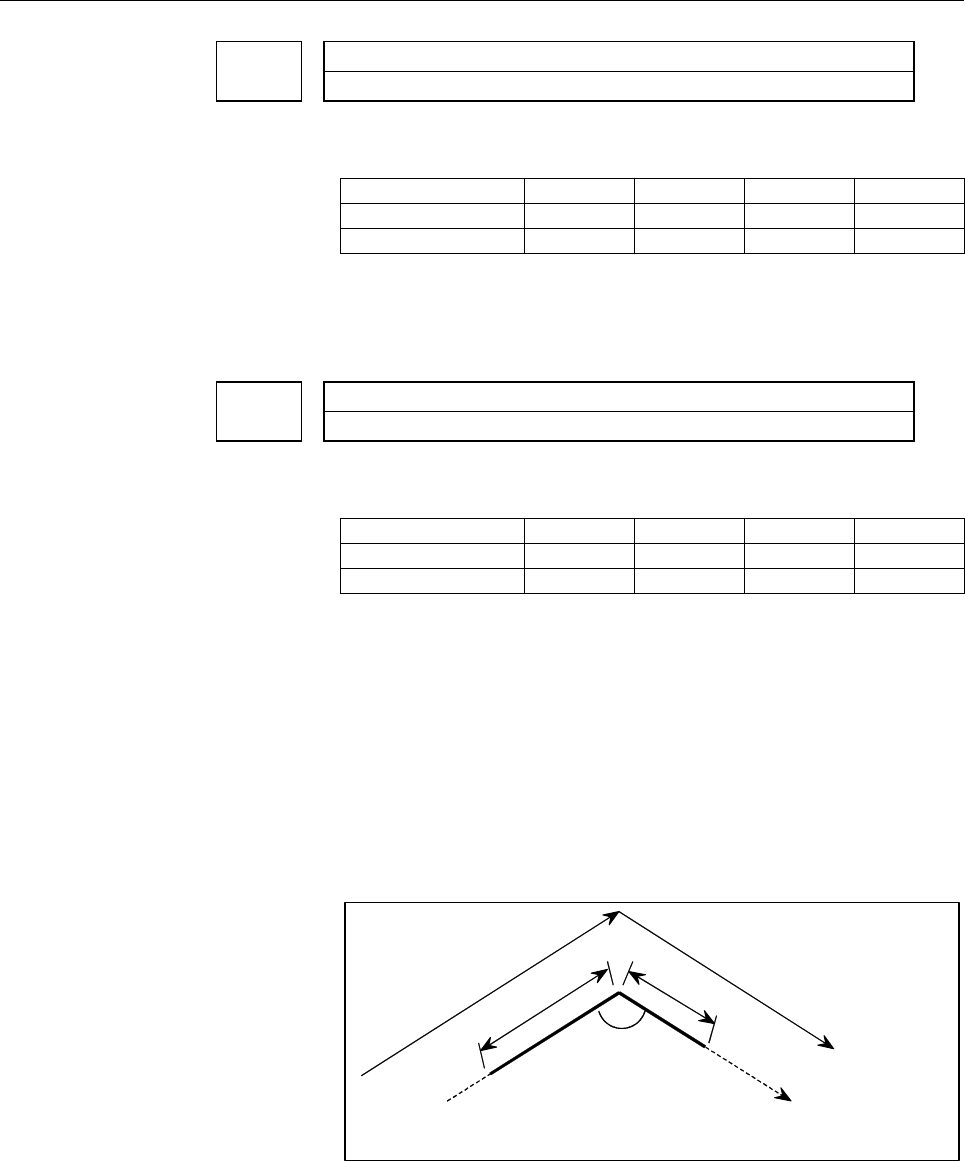

Fig.4.17 (b) Distance Le and Ls in the automatic corner override at an
inner corner
