0i/0i Mate - Model C Parameter manual Page 152

Parameter manual
4.DESCRIPTION OF PARAMETERS B-64120EN/01
- 140 -
NOTE
The time is counted in units of 8 ms. If the set value
is not a multiple of eight, it is raised to the next
multiple of eight.
Example
When 30 is set, 32 ms is assumed.
When 32 is set, 32 ms is assumed.
When 100 is set, 104 ms is assumed.
3011 Acceptable width of M, S, T, and B function completion signal (FIN)
[Data type] Word
[Unit of data] 1 ms
[Valid data range] 16 to 32767
Set the minimum signal width of the valid M, S, T, and B function
completion signal (FIN).
M, S, T, B code
MF, SF, TF, BF
signal
FIN signal
Ignored because
shorter than min.
signal width
Valid because longer
than min. signal width

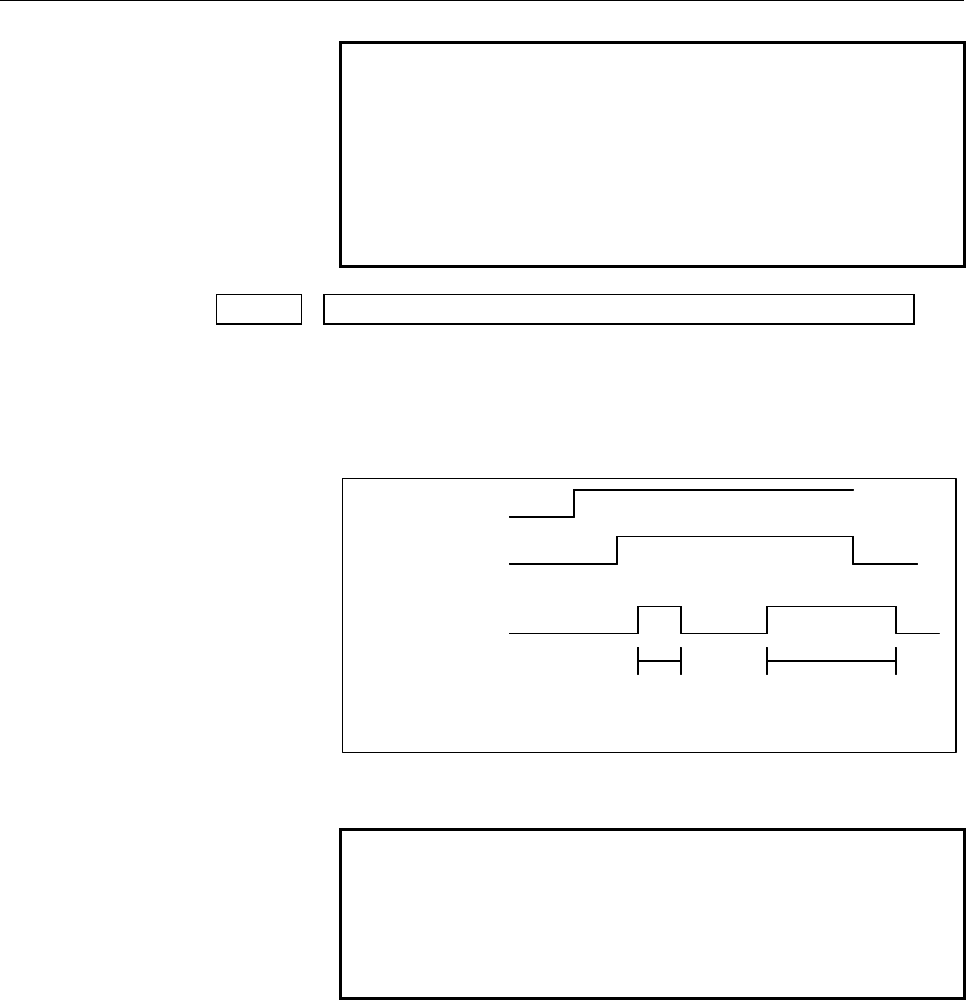

Fig.4.19 (b) Valid width of the FIN (M,S, T, and B function completion)
signal
NOTE
The time is counted in units of 8 ms. If the set value
is not a multiple of eight, it is raised to the next
multiple of eight.
Example
When 30 is set, 32 ms is assumed.
