Series 0i - Model A Connection manual (Function) Page 101

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

2. PREPARATIONS FOR OPERATION

This signal disables machine movement along axes. When this signal is

input during movement along axes, the tool movement is decelerated,

then stopped.

[Classification] Input signal

[Function] This signal disables machine movement along axes in automatic

operation (memory or MDI operation).

[Operation] When the STLK signal turns to “1”, the axis movement is decelerated and

stopped.

In automatic operation, blocks containing M, S, T, or B commands 2nd

auxiliary function are executed consecutively until a block containing an

axis move command is encountered; the movement then stops and is

placed into the automatic operation mode (STL is “1”, SPL is “0”). When

the STLK signal turns to “0”, operation restarts. (Figs. 2.5 (a), (b)).

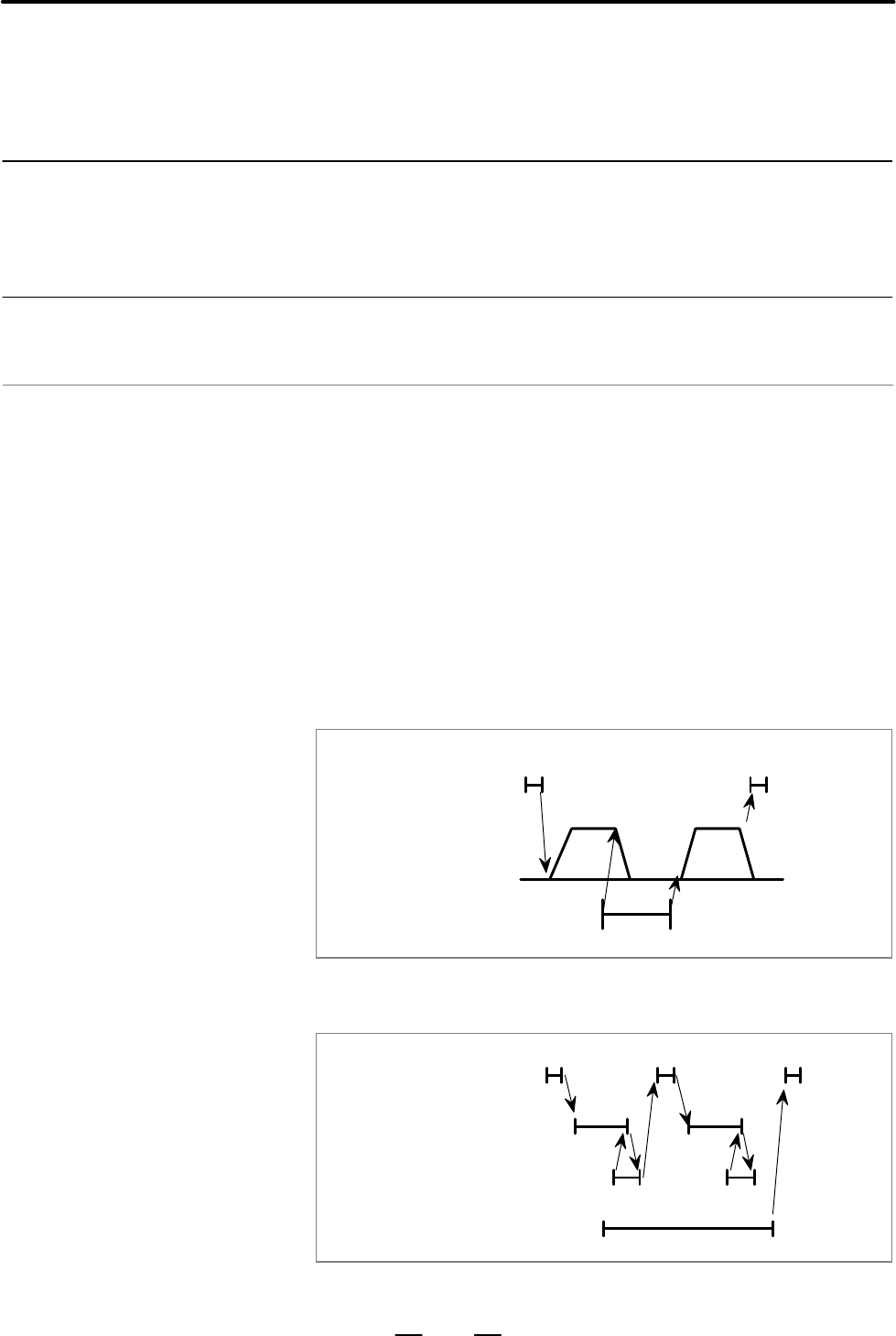

STLK

Axis move

Command read

Fig. 2.5 (a) Block containing only axis move command

FIN

STLK

Command read

MF/SF/TF

Fig. 2.5 (b) Block containing only auxiliary functions only

2.5

START LOCK/

INTERLOCK

General

Signal

Start lock signal

STLK<G007#1>(T series)
