B–63503EN–1/01

4. REFERENCE POSITION ESTABLISHMENT

157

When the reference position has already been set (when APZx, bit 4 of

parameter No. 1815, is 1), performing butt–type reference position setting

causes the tool to be positioned to the reference position at the rapid

traverse rate without the cycle operation. Upon the completion of

positioning, the reference position return end signal is set to 1.

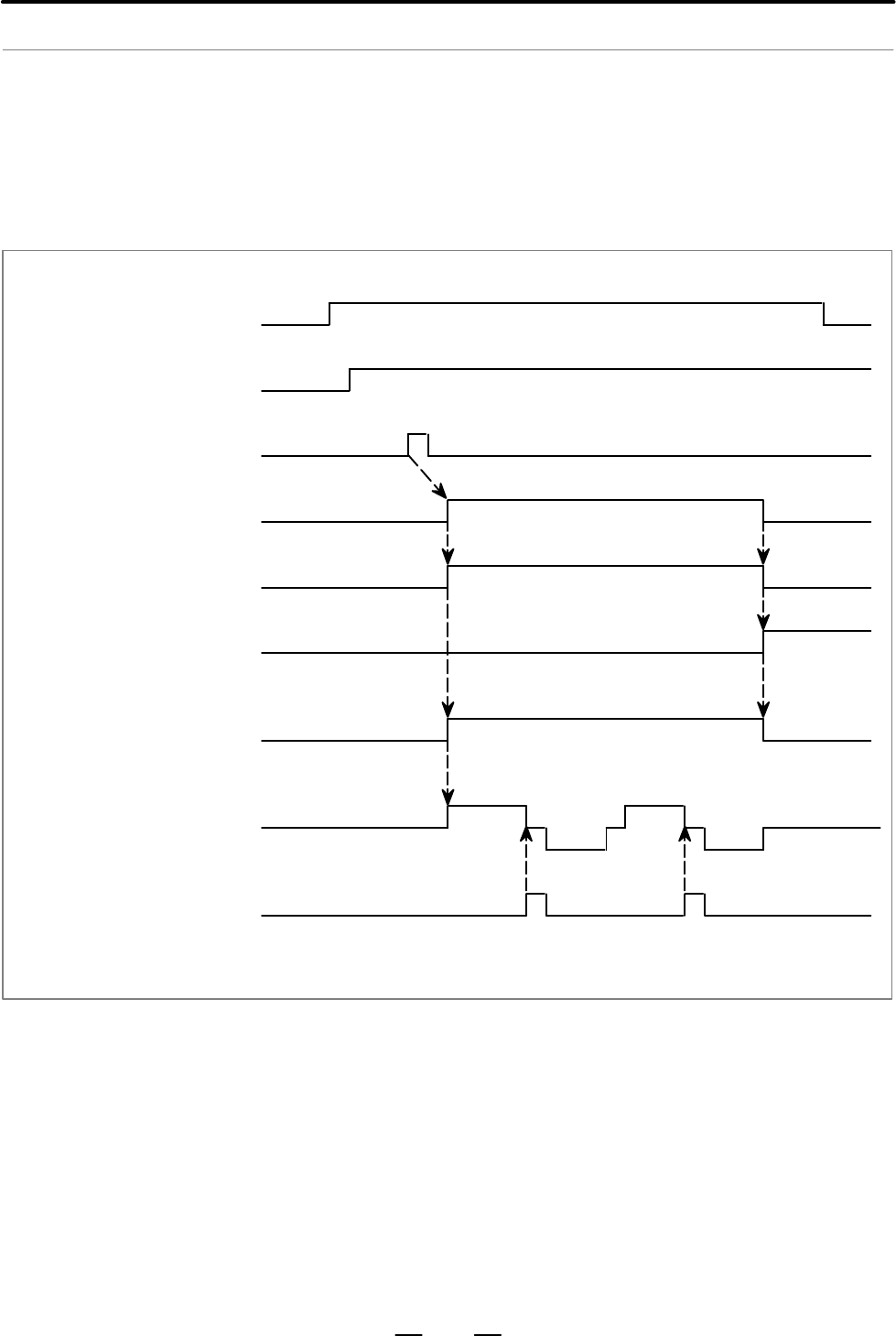

The timing chart for the cycle operation is shown below.

Manual reference position

return mode

Manual handle feed axis select

signals HS1A to HS1D

Automatic operation start

signal ST

Cycle operation

Automatic operation signal

Reference position return end

signals ZP1 to ZP4

Torque limit

Axis feedrate

Torque limit reach signals for

butt–type reference position set-

ting CLRCH1 to CLRCH4

N%: Torque limit (%) specified with parameter No. 7186 (%)

100%

Butting direction

100%

Withdrawal

direction

After the reference

position is set
