Series 0i - Model A Connection manual (Function) Page 280

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

264

8131

#6 #5 #4 #3

AOV

EDC

F1D

HPG

NOTE

When this parameter has been set, the power must be

turned off before operation is continued.

[Data type] Bit

AOV Specifies whether to use automatic corner override, as follows :

0 : Not to use.

1 : Use.

1710

Minimum deceleration ratio (MDR) of the inner circular cutting

rate in automatic corner override

[Data type] Byte

[Unit of data] %

[Valid data range] 1 to 100

Set the minimum deceleration ratio (MDR) in changing the inner circular

cutting feedrate by automatic corner override.

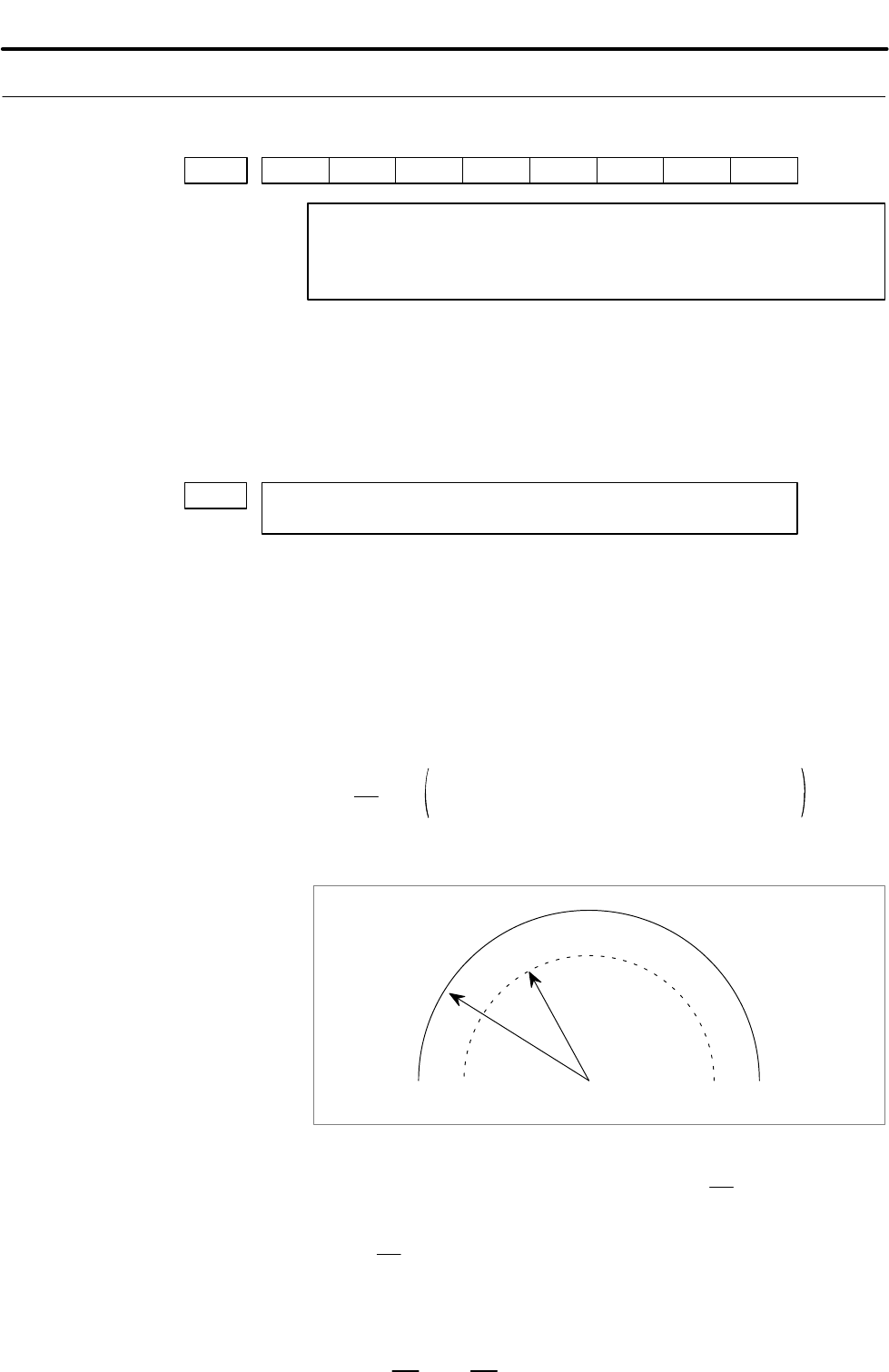

In circular cutting with an inward offset, the actual feedrate for a specified

feedrate (F) becomes as follows:

Rc: Radius of the path of the cutter’s center

Rp: Programmed radius

As the actual feedrate becomes the value obtained from the above

equation, the specified rate F can be achieved on the program path.

Programmed

path

Cutter center

path

If Rc is too samall in comparison with Rp so that

80, the cutter will

stop. To prevent this, the minimum deceleration ratio (MDR) is set.

When

80,

the actural rate becomes as follows:

F × (MDR)

Parameter
