Series 0i - Model A Connection manual (Function) Page 45

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

1. AXIS CONTROL

⋅Amount of movement per rotation: 360°

⋅ Interval between pitch error compensation positions: 45°

⋅ No. of the compensation position of the reference position: 60

If the above is specified, the No. of the farthest compensation position in

the negative direction for the rotating axis is always equal to the

compensation position No. of the reference position.

The No. of the farthest compensation position in the positive direction is

as follows:

No. of the compensation position of the reference position + (Move

amount per rotation/Interval between the compensation positions)

= 60 + 360/45= 68

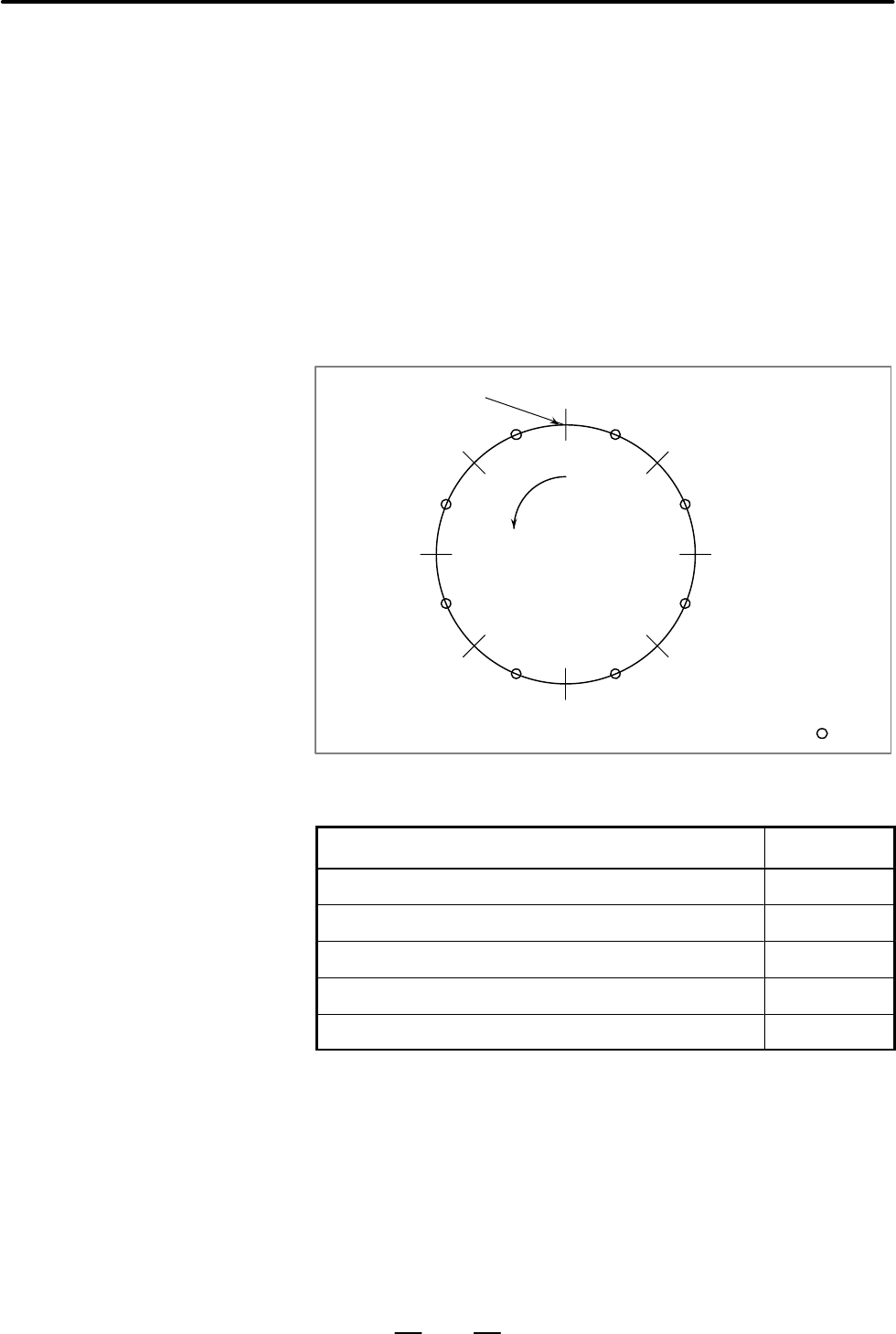

The correspondence between the machine coordinate and the

compensation position No. is as follows:

0.0

45.0

90.0

135.0

180.0

225.0

270.0

315.0

(68)

(60)

(67)

(66)

(65)(64)

(63)

(62)

(61)

(+)

Reference position

Compensation values are output at the positions indicated by .

Therefore, set the parameters as follows:

Parameter Setting value

3620 : Compensation number for the reference position 60

3621 : Smallest compensation position number 60

3622 : Largest compensation position number 68

3623 : Compensation magnification 1

3624 : Interval between pitch error compensation positions 45000

If the sum of the compensation values for positions 61 to 68 is not 0, pitch

error compensation values are accumulated for each rotation, causing

positional deviation.

The same value must be set for compensation positions 60 and 68.

D For rotary axis
