6. INTERPOLATION FUNCTION

B–63503EN–1/01

226

Polar coordinate interpolation is a function that exercises contour control

in converting a command programmed in a Cartesian coordinate system

to the movement of a linear axis (movement of a tool) and the movement

of a rotary axis (rotation of a workpiece). This function is useful for

grinding a cam shaft.

G12.1 starts the polar coordinate interpolation mode and selects a polar

coordinate interpolation plane (Fig. 6.8). Polar coordinate

interpolation is performed on this plane.

Rotary axis (virtual axis)

(unit:mm or inch)

Linear axis

(unit:mm or inch)

Origin of the local coordinate system (G52 command)

(Or origin of the workpiece coordinate system when a G52

command is not specified)

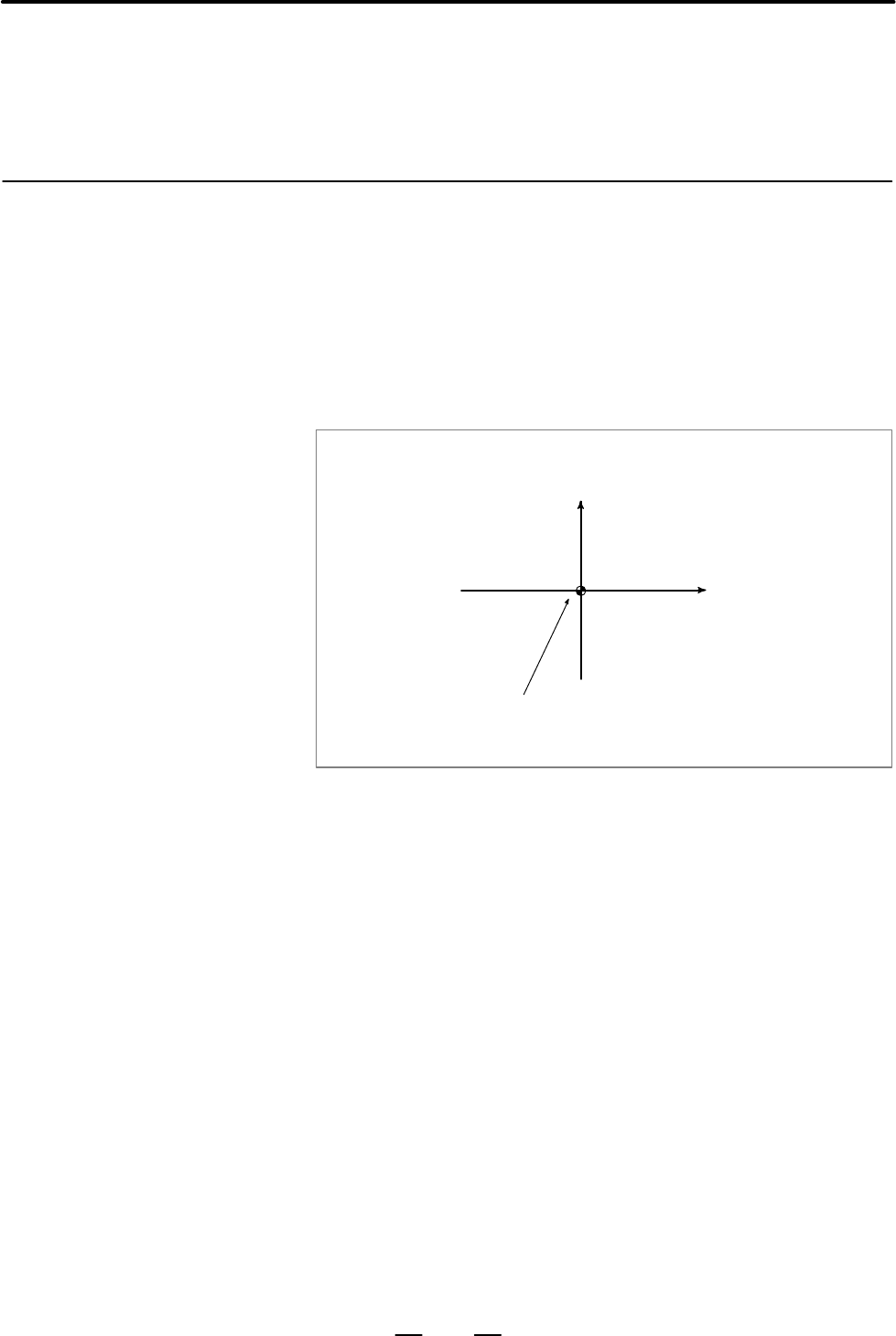

Fig. 6.7 Polar coordinate interpolation plane

When the power is turned on or the system is reset, polar coordinate

interpolation is canceled (G13.1).

The linear and rotation axes for polar coordinate interpolation must be set

in parameters (No. 5460 and 5461) beforehand.

6.7

POLAR COORDINATE

INTERPOLATION

(T SERIES)

General

Explanations

D Polar coordinate

interpolation plane
