B–63503EN–1/01

2. PREPARATIONS FOR OPERATION

NOTE

4 Manual operation in TEACH IN JOG mode

a) When bit 1 (THD) of parameter No. 7100 is set to 0

Only jog feed is possible.

b) When bit 1 (THD) of parameter No. 7100 is set to 1

Both jog feed and manual handle feed are possible, the

manual handle feed is used. Jog feed and manual

handle feed cannot, however, be performed

simultaneously. Manual handle feed can be performed

when the tool is not being moved by means of jog feed.

5 During operation in automatic operation mode (MEM, RMT,

or MDI), specifying switching to another automatic

operation mode (MEM, RMT, or MDI) or memory editing

mode (EDIT) first places the CNC in the automatic operation

stop state after executing the command of the current block,

after which the mode is switched. At this time, signal STL

is set to 0. Signal SPL is not, however, set to 1. (Fig. 2.6

(a), (b))

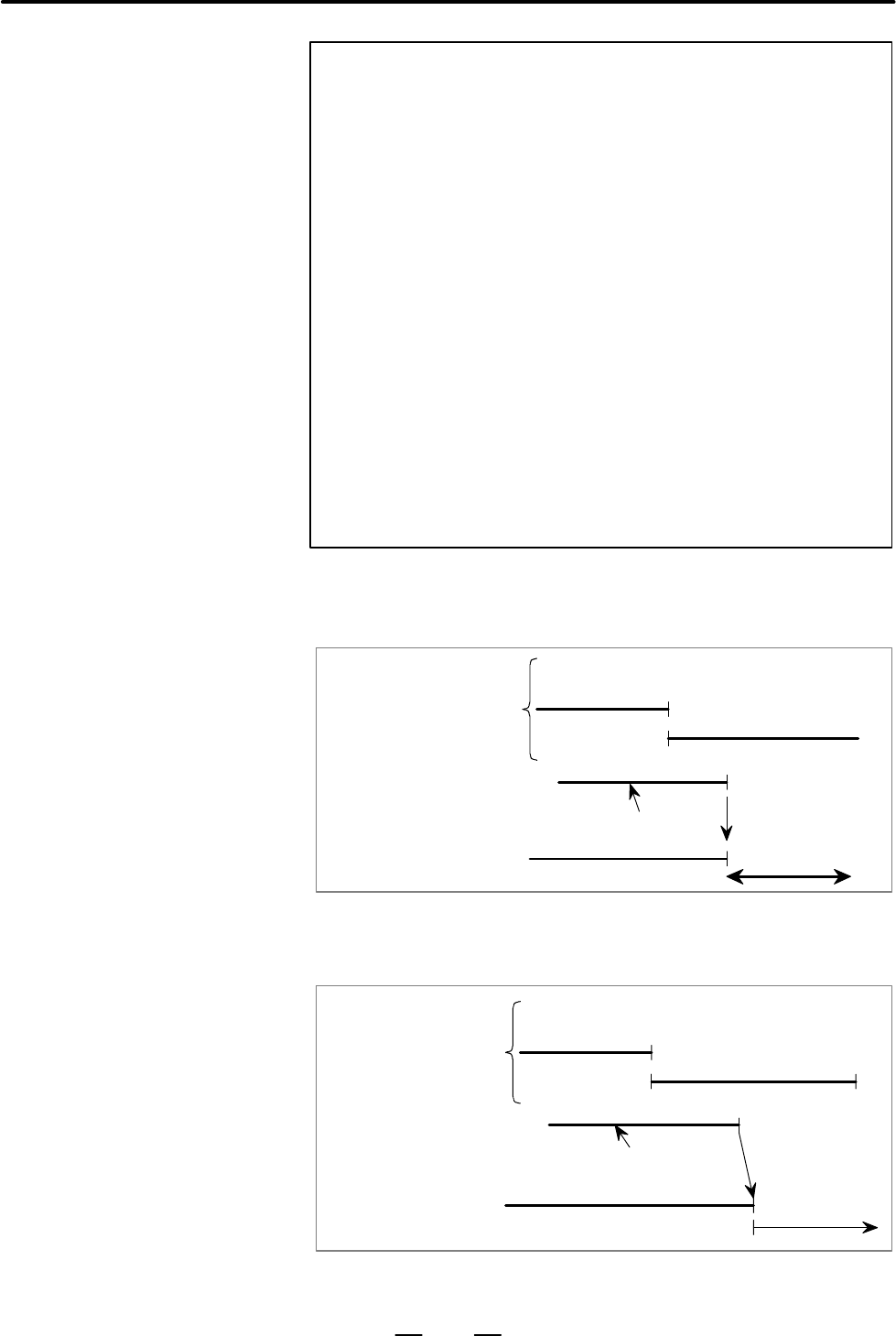

STL

Mode select signal state

Operation

MDI mode

MEM mode

Manual data in-

put possible in

this range

Executing command

Fig. 2.6 (a)

STL

Mode select signal state

Operation

MDI mode

MEM mode

Memory opera-

tion possible in

this range

Executing command

in MDI mode

Fig. 2.6 (b)
