Series 0i - Model A Connection manual (Function) Page 171

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

4. REFERENCE POSITION ESTABLISHMENT

155

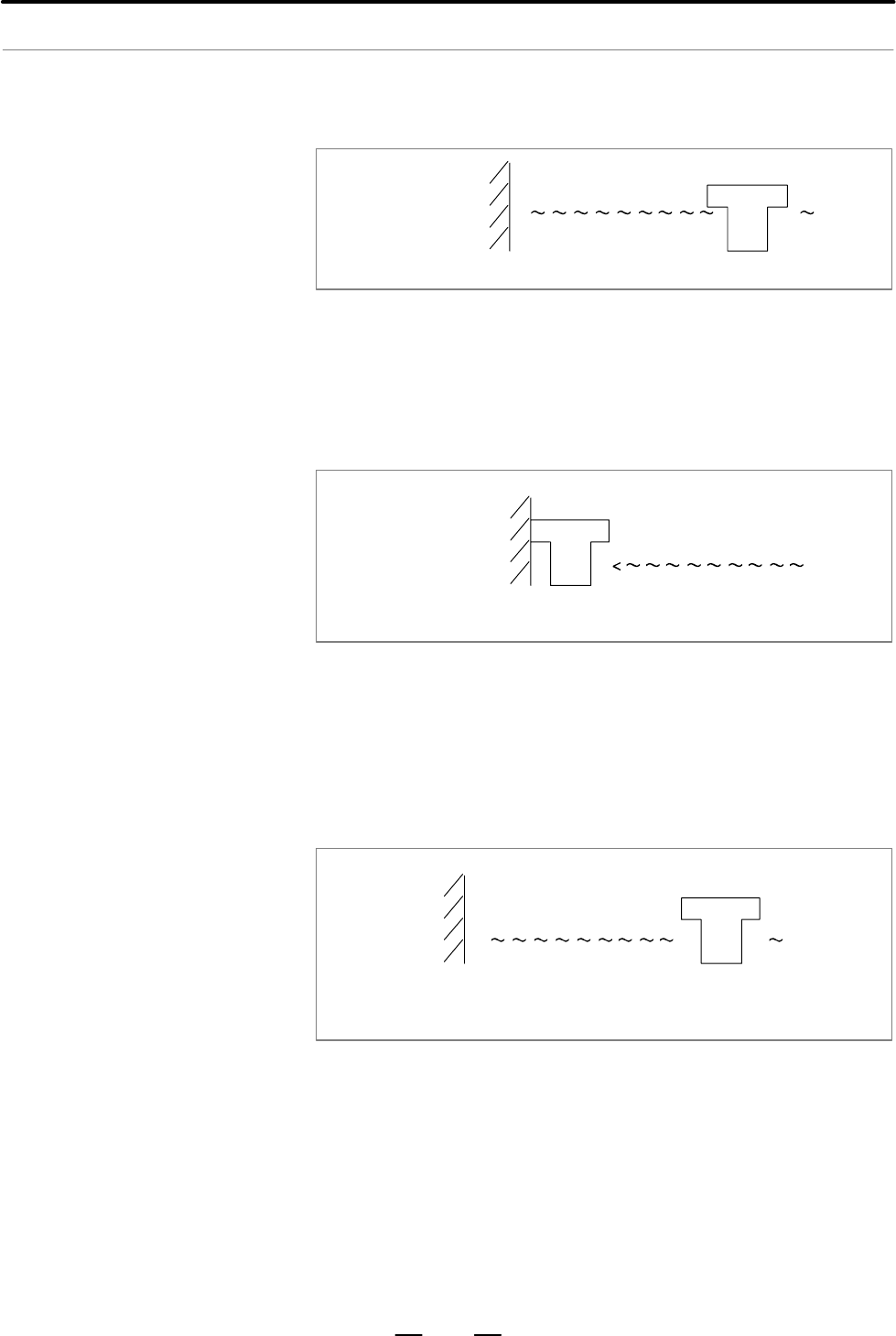

When no reference position has been set (APZx, bit 4 of parameter No.

1815, is 0), operations (A) to (E), below, are performed automatically to

set a reference position.

Mechanical

stopper

Current position

(A)The tool is moved along a specified axis with a limited torque until

it butts against the mechanical stopper.

The tool is moved in the direction specified with ZMIx (bit 5 of

parameter No. 1006), at the feedrate specified with parameter No.

7183, at the torque specified with parameter No. 7186 (until the

tool strikes the mechanical stopper).

Mechanical

stopper

The direction, feedrate, and torque

are specified with parameters.

(B)After the tool strikes the mechanical stopper, the tool is withdrawn

in the direction opposite to the butting direction, along the axis for

a parameter–set distance.

The tool is moved in the direction opposite to that specified with

ZMIx (bit 5 of parameter No. 1006), at the feedrate specified with

parameter No. 7185, for the distance specified with parameter No.

7181.

Mechanical

stopper

The direction, feedrate, distance,

and torque are all specified with pa-

rameters.

(C)Operations (D) and (E) are performed from the withdrawal point,

such that the tool is butted against the mechanical stopper at a

constant feedrate in reference position setting.

(D)The tool moves along the specified axis at a specified torque until

it butts against the mechanical stopper.

The tool moves in the direction specified with ZMIx (bit 5 of

parameter No. 1006), at the feedrate specified with parameter No.

7184, at the torque specified with parameter No. 7186 (until the

tool strikes the mechanical stopper).

Cycle operation
