Series 0i - Model A Connection manual (Function) Page 507

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

9. SPINDLE SPEED FUNCTION

491

NOTE

If the setting of this parameter is 0, the M code specifying the

rigid tapping mode is determined by the setting of parameter

5210. Otherwise, it is determined by the setting of

parameter 5212. The setting of parameter 5212 must

always be within the above valid range.

5213

Return or clearance in peck tapping cycle

[Data type] Word

Increment system IS–B IS–C Unit

Metric input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

[Valid data range] 0 to 32767

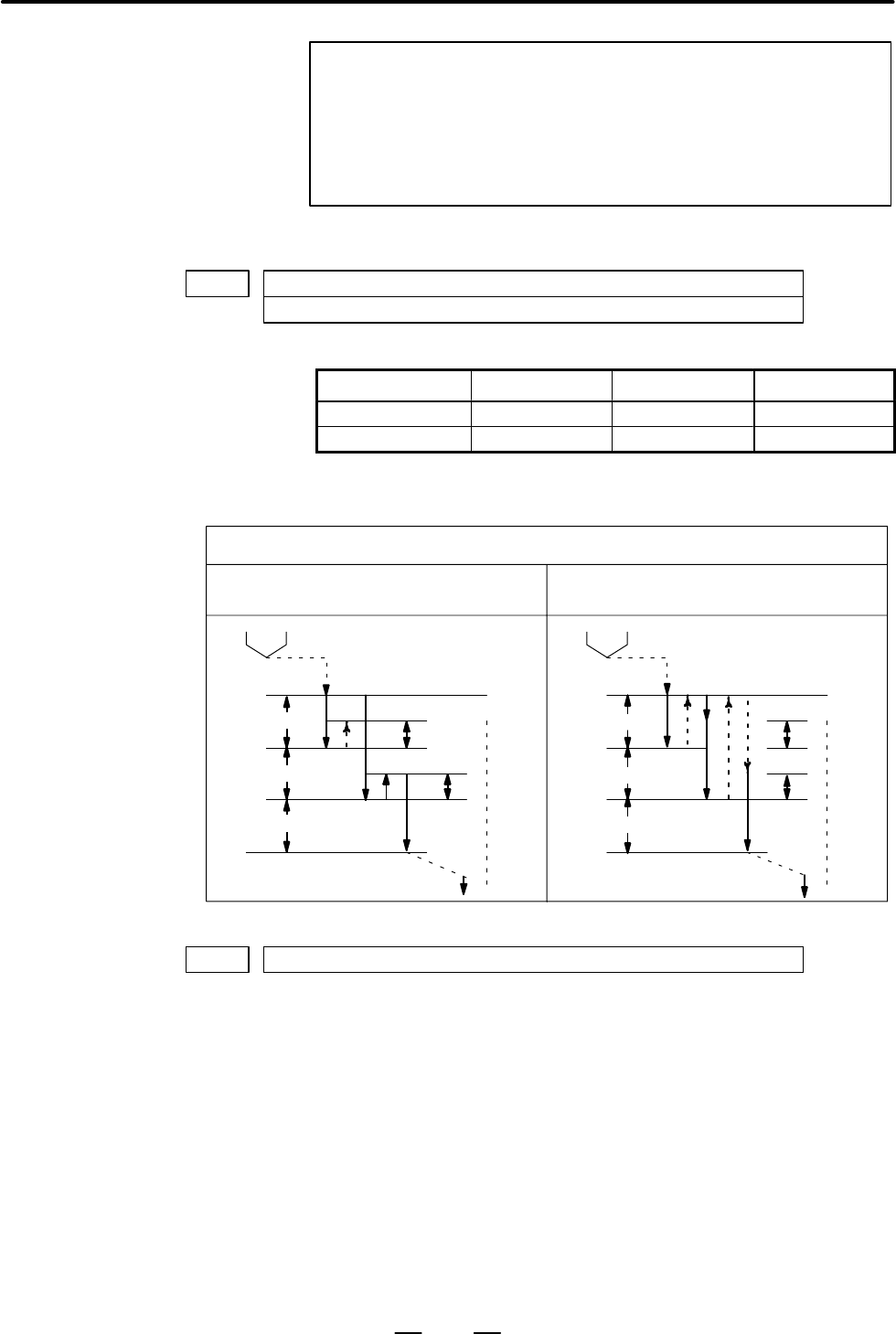

This parameter sets the return or clearance in the peck tapping cycle.

When bit PCP in parameter No. 5200 is 0

(High–speed peck tapping cycle)

When bit PCP in parameter No. 5200 is 1

(Peck tapping cycle)

q : Cutting

d : Return

point

q : Cutting

d : Clearance

point

5214 Rigid tapping synchronization error range setting

[Data type] Word

[Unit of data] Detection unit

[Valid data range] 0 to 32767

This parameter sets an allowable synchronization error range for rigid

tapping.

When the synchronization error exceeds the allowable range set with this

parameter, alarm No. 741 is issued. Note that when 0 is set with this

parameter, no synchronization error check is performed.

[Unit of data]
