Assume that gear switching is two stage switching. If the spindle speed

with the output 10 V is 1000 min

–1

for the low speed gear (G1) and 2000

min

–1

for the high speed gear (G2), set these speeds to the parameter No.

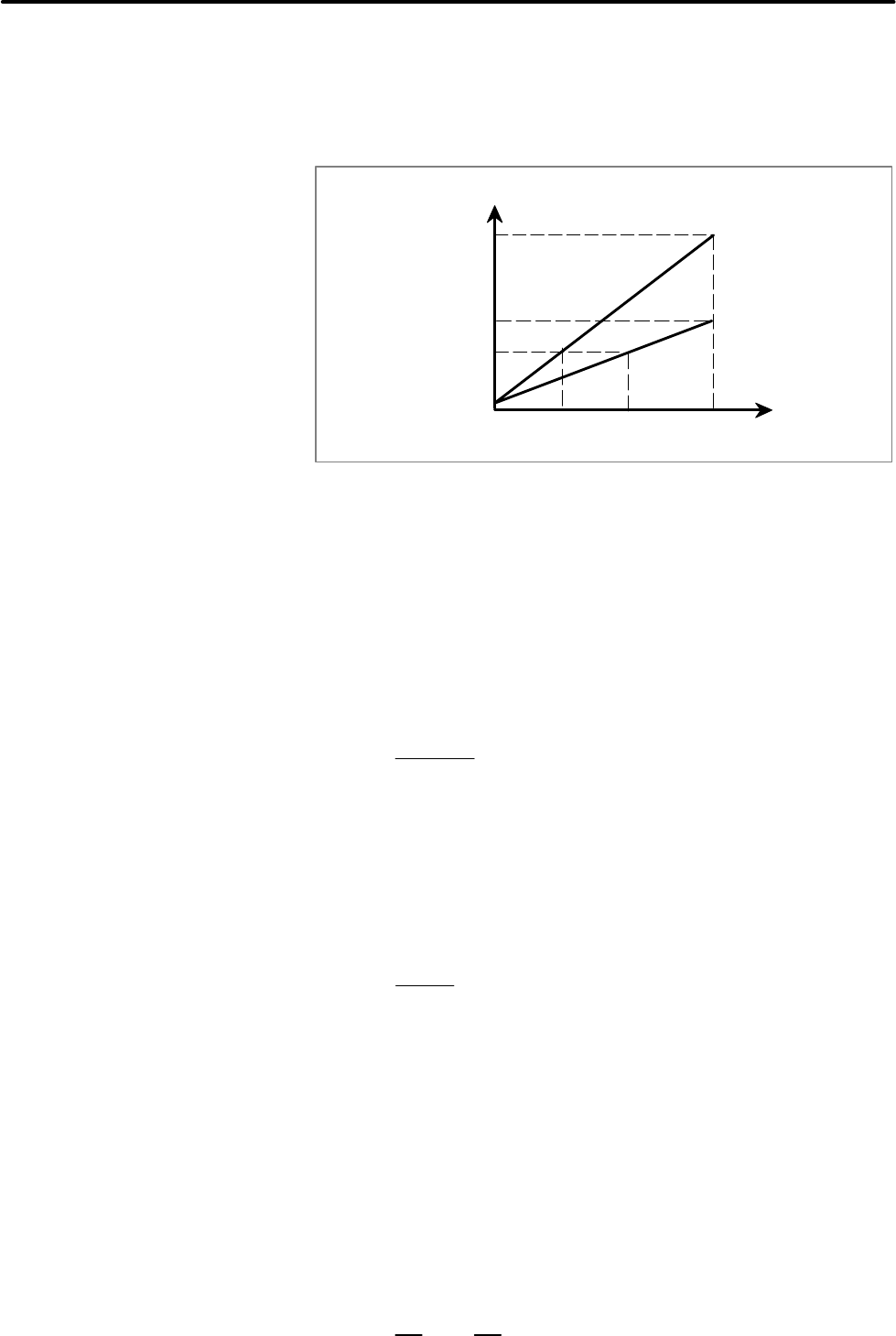

3741, 3742, respectively. In this case, the spindle output has the linear

relationship shown below:

When gear

2 selected

When gear

1 selected

(Volt)

600min

–1

1000min

–1

2000min

–1

Spindle output

Here, S = 60 m/min is given as the surface speed; if the position of the

present X-axis cutter is 16 mm from the center, the spindle speed N

becomes 600 min

–1

(S = 2πr N). Therefore, V

(for G1) or V

(for G2)

is calculated inside the CNC and output to the machine side.

V1: 6(V)

V2: 3(V)

The value of output voltage V is calculated automatically from the

following equations:

(i) G96

10S

2πrR

R: Spindle speed (min

–1

) at 10V output voltage (that is , spindle speed set

by parameter No. 3741 to No. 3744)

S: Surface speed (m/min) specified by S command

r: Radius value in the X-axis direction (m)

(ii)G97

10N

R: Spindle speed at 10V output voltage (min

–1

)

N: Spindle speed given by S command (min

–1

)

Example of Spindle

Analog Output
