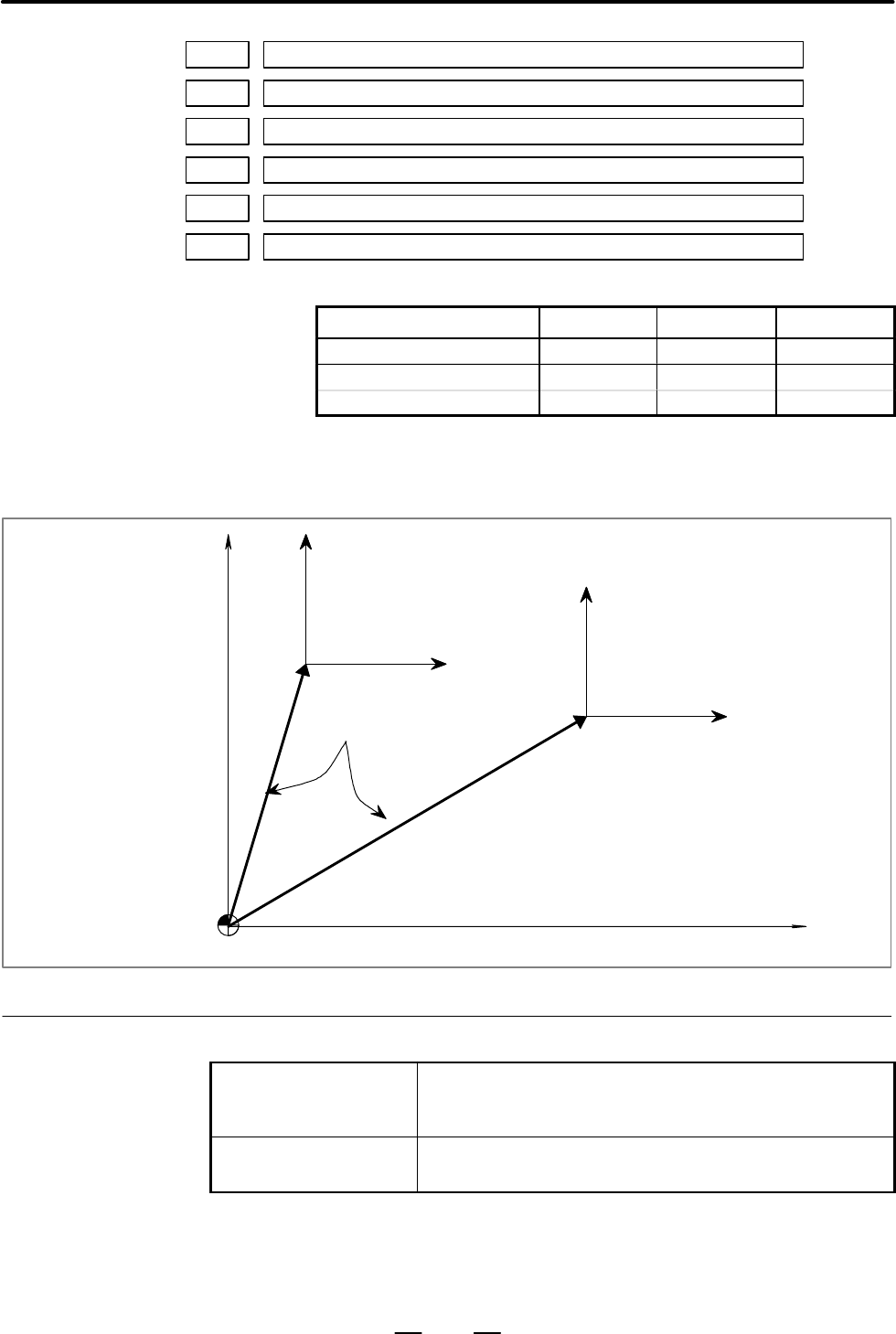

Series 0i - Model A Connection manual (Function) Page 64

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

1. AXIS CONTROL

1221 Workpiece zero point offset value in workpiece coordinate system1 (G54)

1222 Workpiece zero point offset value in workpiece coordinate system2 (G55)

1223 Workpiece zero point offset value in workpiece coordinate system3 (G56)

1224 Workpiece zero point offset value in workpiece coordinate system4 (G57)

1225 Workpiece zero point offset value in workpiece coordinate system5 (G58)

1226 Workpiece zero point offset value in workpiece coordinate system6 (G59)

[Data type] Two–word axis

Input increment IS–B IS–C Unit

Linear axis (input in mm) 0.001 0.0001 mm

Linear axis (input in inches) 0.0001 0.00001 inch

Rotation axis 0.001 0.0001 deg

[Valid data range] –99999999 to 99999999

The workpiece zero point offset values in workpiece coordinate systems 1

to 6 (G54 to G59) are set.

Workpiece coordinate system 1 (G54)

Workpiece zero point offset

Origin of machine coordinate system

Workpiece coordinate system 2 (G55)

OPERATOR’S MANUAL

(For Machining Center)

(B–63514EN)

WORKPIECE COORDINATE SYSTEM

OPERATOR’S MANUAL

(For Lathe) (B–63504EN)

WORKPIECE COORDINATE SYSTEM

[Unit of data]

Reference item
