Series 0i - Model A Connection manual (Function) Page 583

Connection manual (Function)

Page of 874

/ 874

B–63503EN–1/01

11. PROGRAM COMMAND

567

Canned cycles make it easier for the programmer to create programs.

With a canned cycle, a frequently–used machining operation can be

specified in a single block with a G function; without canned cycles,

normally more than one block is required. In addition, the use of canned

cycles can shorten the program to save memory.

A canned cycle consists of a sequence of six operations.

Operation 1 Positioning a hole position

Operation 2 Rapid traverse up to point R level

Operation 3 Hole machining

Operation 4 Operation at the bottom of a hole

Operation 5 Retraction to point R level

Operation 6 Rapid traverse up to the initial point

Operation 1

Operation 2

Operation 3

Operation 4

Operation 5

Operation 6

Rapid traverse

Feed

Initial level

Point R level

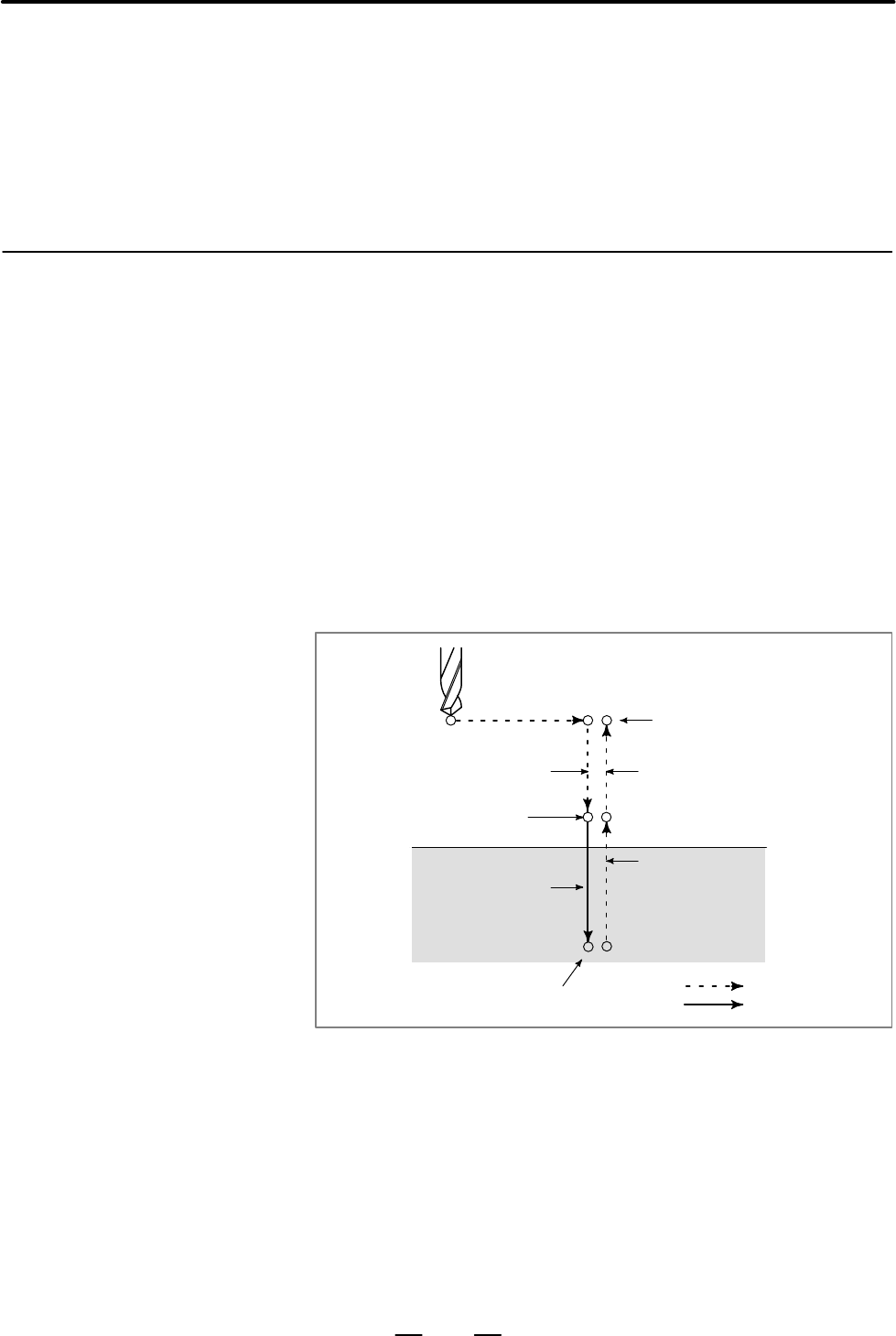

Fig. 11.6 (a) Canned cycle operation sequence

11.6

CANNED CYCLE

(M SERIES)/CANNED

CYCLE FOR HOLE

MACHINING

(T SERIES)

General

Explanations
