B–63503EN–1/01

9. SPINDLE SPEED FUNCTION

372

low gear range, the gear select signal does not change and the command

output is calculated and output to obtain the set speed at high gear.

When the spindle motor speed is set by parameter GST (No. 3705#1)=1,

the command output is output regardless of gear select signal. When the

spindle motor speed is set, it is used for gear shift.

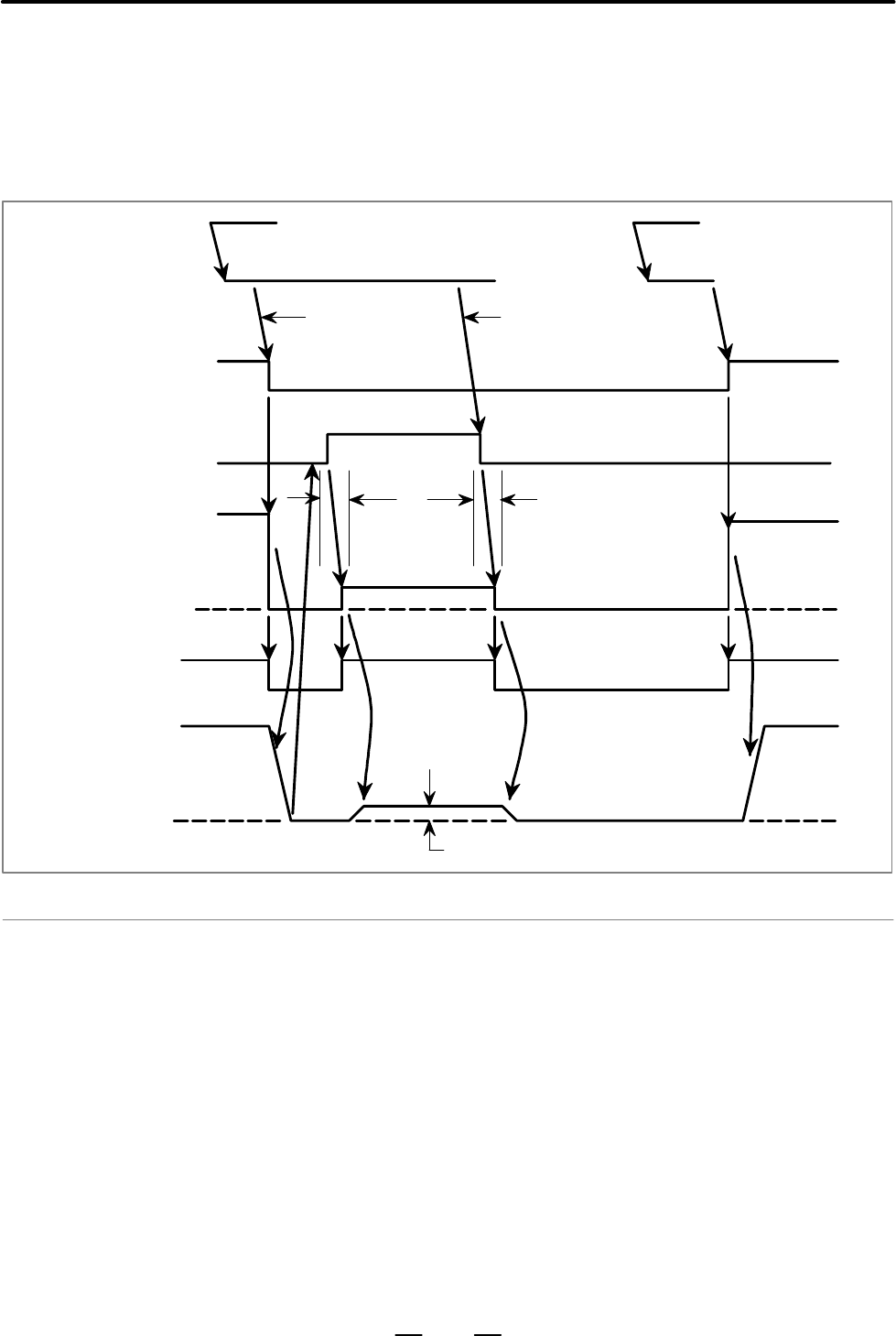

Example of usage is shown below:

Max. 70ms

M19

Input command

Miscellaneous function

processing

Spindle stop signal

*SSTP

Enable signal

ENB

Command output to

the spindle

Stop command

Orientation

detection

M03

Spindle orientation signal

SOR

Max. 70ms

RL: Constant speed set by parameter No. 3732

Spindle speed

0 rpm

[Classification] Input signal

[Function] The spindle speed override signal specifies an override from 0% to 254%

in 1% units for the S command sent to the CNC.

[Operation] An override value in binary must be set in 8 bits from SOV7 to SOV0.

The spindle speed override function is disabled (an override of 100% is

applied) under the following conditions:

⋅ Tapping cycle (M series : G84, G74 T series : G84, G88)

⋅ Thread cutting (M series : G33 T series : G32, G92, G76)

→ When this function is not in use, specify an override of 100%;

otherwise, an override of 0% becomes effective, thus disabling the

spindle from rotating.

Spindle speed override

signal SOV0 to SOV7

<G030>
